Refer to the specific diagram for your Ferris 48 inch deck to ensure each belt aligns correctly with pulleys and spindles. Misrouting can cause uneven blade performance or premature belt wear.
Identify all pulleys and tensioners before attempting removal or replacement. The main drive belt wraps around the engine pulley, idler pulleys, and deck spindles in a defined path that maintains optimal tension and rotation direction.
Follow the belt path exactly as shown in the diagram when installing a new belt. Pay attention to the orientation of the V-belts and the location of any spring-loaded idlers that automatically adjust tension during operation.
Inspect pulleys for wear or debris before routing the belt. Clean surfaces and ensure bearings move freely to prevent slipping and reduce strain on the belt during mowing tasks.
Check belt tension after installation using a moderate deflection method recommended for Ferris 48 inch decks. Proper tension extends belt life and maintains consistent cutting performance across the full width of the deck.
Ferris 48 Inch Deck Belt Diagram Practical Guide for Maintenance and Replacement
Always disconnect the spark plug before handling the deck belt to prevent accidental engagement. Begin by raising the mower deck to its highest position and securing it with a jack or support stand.

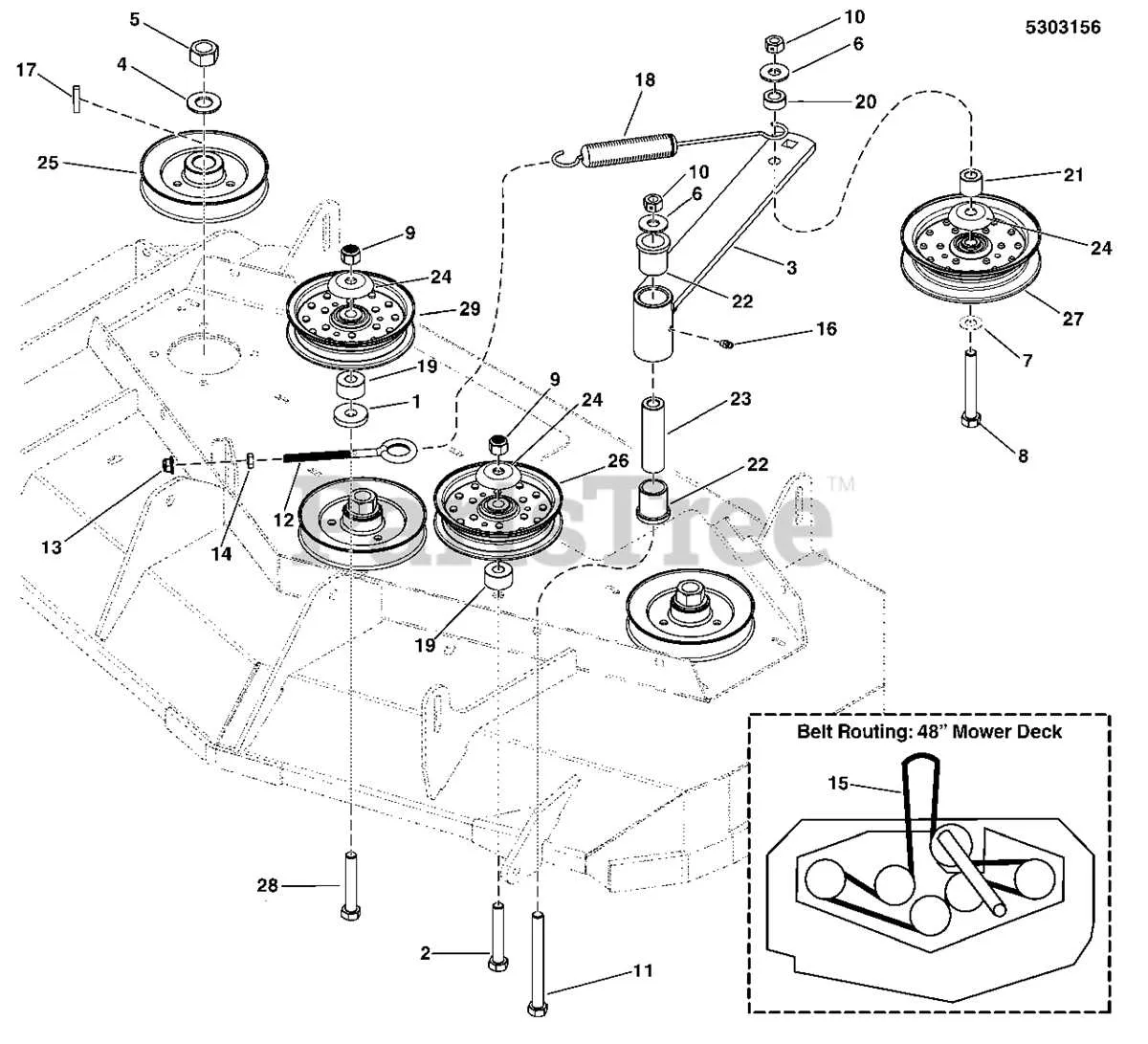

Identify the primary belt routing using the Ferris 48 inch deck belt diagram. The belt loops around the engine pulley, idler pulleys, and the blade spindles in a specific path that maintains proper tension. Follow each pulley in sequence to avoid misrouting, which can lead to uneven blade rotation or premature wear.
Inspect the belt for cracks, fraying, or glazing. Replace the belt immediately if any damage is visible. Loosen the idler pulleys using a wrench to release tension, then slide the old belt off the pulleys. Compare the new belt to the old one to confirm correct length and rib alignment before installation.
Route the new belt according to the diagram: start with the engine pulley, move around each idler pulley, and finish on the blade spindles. Ensure the ribs on the belt align precisely with the grooves of each pulley. Adjust the idler pulleys to achieve proper tension–there should be a slight give when pressed with moderate force, but the belt should not sag.
After installation, rotate each blade manually to confirm smooth movement and correct tracking. Lower the deck, reconnect the spark plug, and run the mower briefly to observe belt operation. Listen for unusual noises and verify consistent rotation. Regularly check belt condition and tension every 25–30 hours of operation or whenever performance issues arise.
Identifying and Locating All Pulleys and Belts on a 48 Inch Deck
Begin by positioning the mower on a flat surface and engaging the parking brake. Locate the main deck drive belt, which runs from the engine’s crankshaft pulley to the deck spindle pulleys. The deck contains three primary spindles: left, center, and right. Each spindle has a dedicated pulley that the deck belt loops around. Identify the idler pulley, usually mounted on a spring-loaded arm, which maintains proper tension on the belt and allows smooth engagement of the blades.
Trace the belt path carefully: it wraps around the engine pulley, then passes over the idler pulley before connecting to the three deck pulleys. Confirm the belt orientation by checking the smooth side contacts the engine pulley, while the ribbed side fits the deck pulleys. Inspect the tensioner pulley, often located near the center spindle, which guides the belt and prevents slipping.
Identify all smaller guide or intermediate pulleys positioned along the belt route. These pulleys redirect the belt around frame components and maintain alignment. Label each pulley if necessary, marking left, center, right, idler, and tensioner positions to simplify reinstallation or troubleshooting. Use a flashlight to spot pulleys obscured by frame components or guards. Check for wear, cracks, or misalignment while identifying each pulley, as these factors directly affect deck performance.
Ensure all pulleys rotate freely without wobble. Use hand pressure to test idler and tensioner pulleys for spring resistance and smooth movement. Confirm that the belt sits fully in the grooves of each pulley before starting the mower. Accurate identification and correct placement of all pulleys and belts guarantee uniform blade rotation and consistent cutting performance on the 48 inch deck.
Step-by-Step Belt Routing Instructions for Ferris Deck Models
Begin by ensuring the deck is disengaged and the engine is off. Locate the deck drive pulley, positioned centrally on the deck frame. Place the belt around this pulley first, ensuring the ribbed side aligns with the pulley grooves.
Next, route the belt around the idler pulleys on each side of the deck. Keep tension on the belt while guiding it over the smooth face of the idler pulleys, avoiding twists or misalignment.
Guide the belt under the front deck support pulley. This pulley maintains proper alignment and ensures consistent engagement with the drive system. Confirm the belt sits fully in the pulley grooves without slipping.
Move the belt toward the engine spindle pulley. Loop it clockwise around the spindle pulley, making sure the belt remains flat and centered. Check for proper alignment with the deck belt path diagram specific to the Ferris model.
Route the belt over the tensioner pulley last. Pull the tensioner away from the belt path, slide the belt onto the pulley, and release slowly. Ensure the belt has uniform tension and no slack in any section.
Rotate each pulley manually to verify smooth movement and proper tracking. The belt should move freely without rubbing the deck frame or other components. Recheck the routing against the manufacturer diagram for accuracy before operating the mower.
Perform a final inspection of all pulleys, ensuring they spin without resistance and the belt remains centered. Adjust the tensioner if minor alignment corrections are needed. Proper routing maintains cutting performance and prolongs belt life.
Troubleshooting Common Belt Problems and Adjusting Tension Correctly
Inspect the deck belt regularly for cracks, fraying, or glazing. Replace the belt immediately if you notice any visible damage, as worn belts reduce cutting performance and can slip off pulleys.
Check the belt alignment by ensuring it sits squarely on all pulleys. Misaligned belts can cause uneven wear and noisy operation. Adjust the pulleys or idlers if the belt drifts to one side.
- Excessive belt slippage: Verify tension using the recommended deflection measurement. On a Ferris 48 inch deck, a properly tensioned belt typically deflects about 1/2 inch with moderate pressure applied at the midpoint between pulleys.
- Noisy operation: Inspect for debris around pulleys and tighten loose fasteners. Replace any worn idler bearings causing unusual sounds.
- Uneven cutting or vibration: Check for bent pulleys, worn spindles, or a stretched belt. Replace components as necessary to restore smooth operation.
Adjust belt tension using the idler arm. Loosen the mounting bolt, move the idler to achieve proper deflection, then retighten securely. Avoid over-tensioning, as excessive pressure can damage bearings and shorten belt life.
Clean pulleys and the deck area regularly to prevent buildup of grass and debris. Lubricate pivot points of idler arms lightly to maintain smooth movement and consistent tension.
Replace the belt with an exact match for the Ferris 48 inch deck. Incorrect belt size affects tension and can lead to frequent slippage or premature wear.
Test the mower after adjustments by engaging the deck and observing belt operation. Listen for unusual noises, watch for belt tracking, and check for consistent blade rotation.
