Check the routing of the serpentine belt on the 2011 Subaru Outback before loosening any components. The belt connects the alternator, power steering pump, air conditioning compressor, and crankshaft pulley, so proper alignment ensures smooth operation. A clear diagram helps avoid mistakes during installation and prevents premature wear.
The 2011 Outback typically uses a single serpentine belt with a spring-loaded tensioner. To release the belt, apply pressure to the tensioner arm with a socket wrench and slide the belt off the pulleys. Referencing the diagram during removal saves time during reinstallation, especially since incorrect routing can cause squealing or accessory failure.
When inspecting the belt, look for cracks, fraying, or glazing. Subaru recommends replacement around 60,000 miles, but driving conditions may require earlier attention. Having the correct diagram on hand makes the process straightforward, whether you are replacing the belt at home or double-checking work done in a shop.

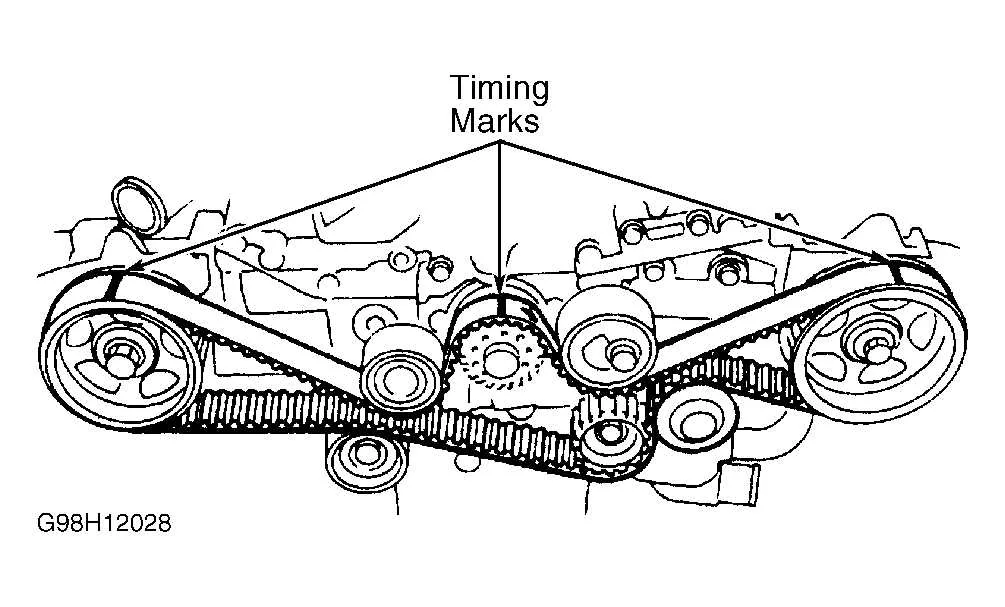

2011 Subaru Outback Serpentine Belt Diagram
Check the routing carefully: on the 2011 Subaru Outback with a 2.5L engine, the serpentine belt loops around the crankshaft pulley, alternator, power steering pump, A/C compressor, and the tensioner. The crankshaft pulley drives the entire system, while the automatic tensioner keeps proper belt pressure at all times.
When replacing the belt, release tension by rotating the tensioner pulley with a breaker bar, then slide the belt off. Route the new belt following the factory diagram, making sure the ribs fit precisely into each pulley groove. A misaligned belt can slip, squeal, or wear unevenly.
Inspect the pulleys for damage before installation. If you notice cracks, fraying, or glazing on the old belt, it confirms the need for replacement. After fitting the new belt, rotate the crankshaft manually one full turn to verify proper seating on every pulley before starting the engine.

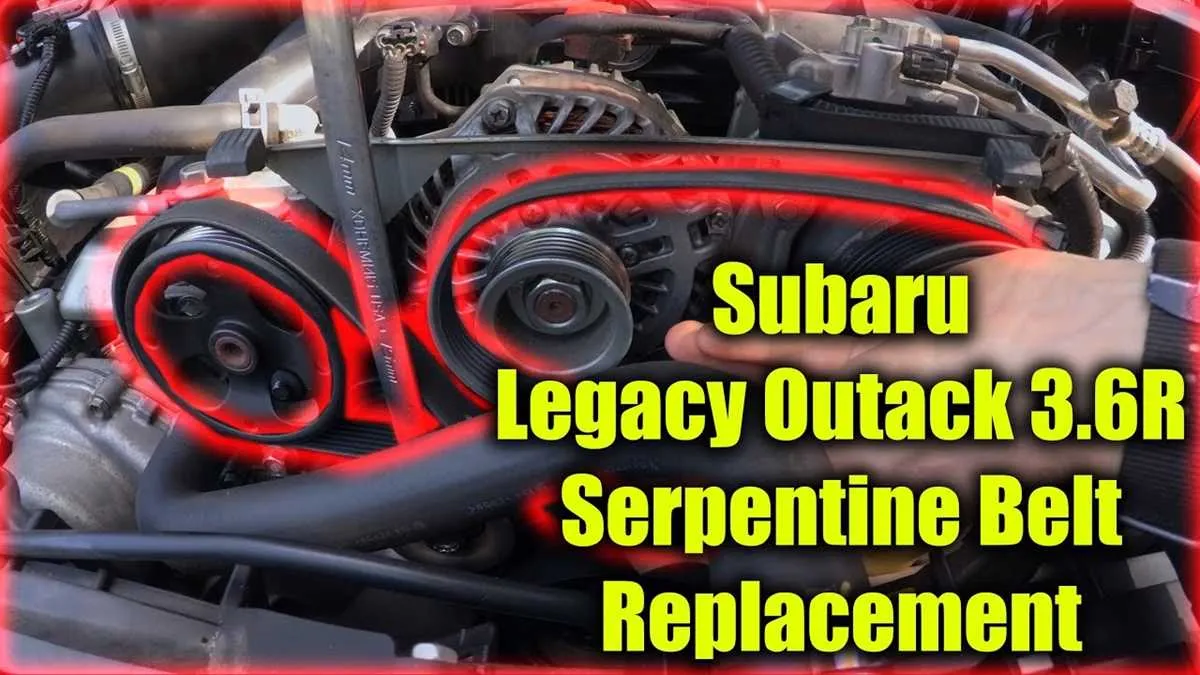

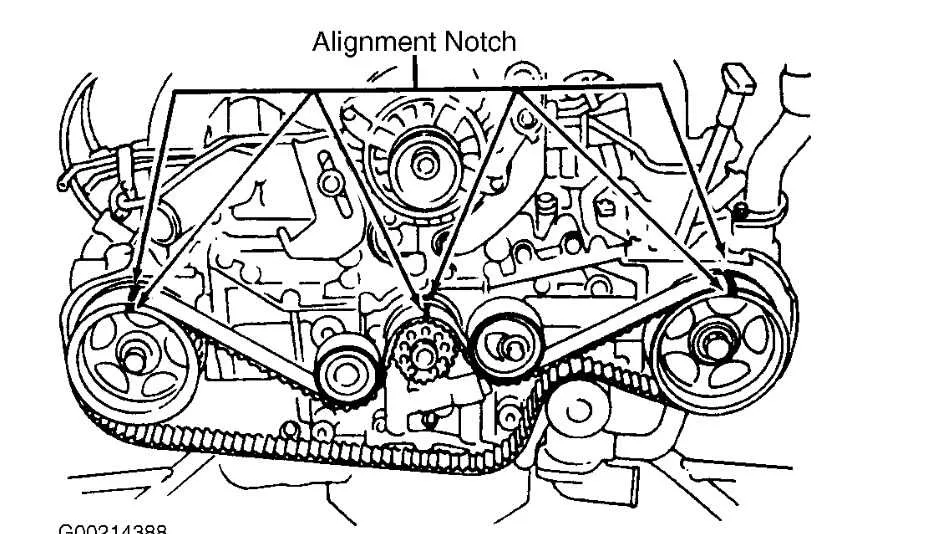

Location of the serpentine belt and components in the engine bay
Open the hood and look at the front side of the engine on the passenger side. The serpentine belt runs across multiple pulleys in a continuous loop, visible without removing covers or shields. Use a flashlight if necessary to trace its entire path.
- Crankshaft pulley: Located at the bottom center, it drives the belt and powers all other accessories.
- Alternator: Positioned at the upper left, the belt loops around it to generate electrical power.
- Power steering pump: Found on the upper right, directly connected to the belt for steering assistance.
- Air conditioning compressor: Mounted lower on the passenger side, engaged by the belt when the A/C is active.
- Idler pulleys: Located near the top and middle sections, guiding the belt and maintaining smooth motion.
- Tensioner pulley: Positioned on the front right, spring-loaded to keep the belt tight at all times.
Check the belt from top to bottom for cracks, fraying, or glazing. Use the tensioner as the release point when replacing the belt, since it provides quick access to remove and reinstall without disturbing other components.
Step-by-step routing path of the 2011 Subaru Outback serpentine belt
Place the belt on the crankshaft pulley first, ensuring it sits fully inside the grooves. This anchor point keeps the belt stable as you move through the other pulleys.
Wrap the belt around the air conditioning compressor pulley on the lower passenger side. Pull the belt snug and check that the ribs line up correctly.
Guide the belt upward to the alternator pulley. Apply steady tension so the belt does not slip out of position on the lower pulleys.
Move the belt across the water pump pulley, located near the center. Confirm that the belt runs smoothly without twists.
From the water pump, route the belt toward the power steering pump pulley at the upper driver side. Keep it tight while ensuring all grooves stay aligned.
Finally, loop the belt around the tensioner pulley. Use a wrench on the tensioner arm to release pressure, slide the belt into place, then slowly let the tensioner apply force to secure the belt.
Double-check every pulley before starting the engine to avoid misalignment or premature wear.
How to check wear and tension on the serpentine belt after installation
Press the belt midway between two pulleys with moderate finger pressure. A correctly tensioned belt should deflect about half an inch. Too much slack means retightening is needed, while no movement may indicate excessive tension that stresses bearings.
Shine a flashlight along the ribbed surface and edges. Look for cracks, fraying, missing chunks of rubber, or glazing that makes the belt look shiny. Any uneven wear or rib separation signals replacement rather than adjustment.
Run the engine briefly and observe the belt’s movement. It should track smoothly without wobbling, squealing, or jumping across pulley grooves. If the belt rides off-center, check pulley alignment and adjust the tensioner if necessary.
After driving a few miles, recheck deflection and surface condition. A new belt may settle slightly, so a final adjustment helps ensure consistent performance and prevents premature wear.
