Inspect the belt routing carefully before attempting any replacement or adjustment. The 48-inch deck uses a serpentine configuration that loops around three pulleys and a tensioner, ensuring even power distribution to all blades.

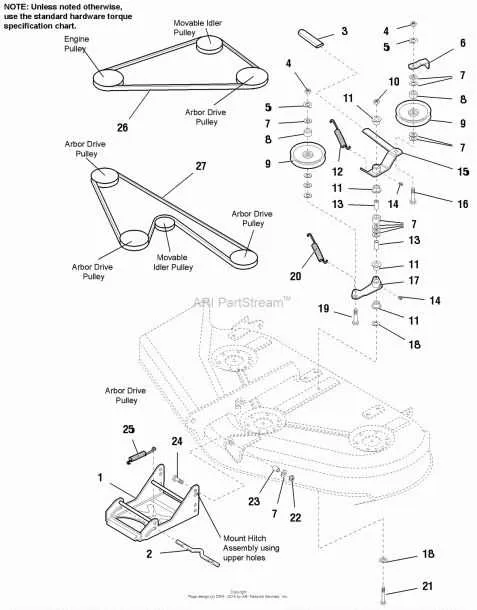

Use the diagram as a reference to identify each pulley and the correct path for the belt. Misrouting can cause uneven cutting, excessive wear, or damage to the mower deck components. Pay attention to the idler pulleys’ orientation and tensioner position for smooth operation.
Check belt condition regularly for cracks, fraying, or glazing. Replace the belt at the first sign of wear to maintain consistent cutting performance. Align the belt fully on the pulleys and apply the correct tension as indicated in the diagram to prevent slippage or premature failure.
Keep hardware organized when removing the belt. Documenting the pulley positions or taking a quick photo can simplify reinstallation and ensure accuracy. Following the diagram precisely saves time and reduces the risk of improper alignment.
After installation, run the mower at low speed to verify smooth rotation and even blade engagement. Adjust the tensioner as needed based on the diagram specifications to optimize deck performance and extend belt life.
Simplicity 48 Inch Mower Deck Belt Diagram Practical Guide
Locate the mower deck under the tractor and ensure the engine is off and the parking brake is engaged. Remove any debris or clippings that may obstruct the belt path. Identify the mandrels, idler pulleys, and engine pulley that interact with the belt.
Refer to the belt routing diagram specific to the 48-inch Simplicity deck model. Begin threading the belt around the engine pulley first, then follow the sequence around the idlers and mandrels. Ensure the belt teeth align correctly with the pulleys to prevent slippage and uneven wear.
Check the tension by pressing down on the longest span of the belt; it should deflect slightly under moderate pressure. Adjust the idler pulley if the belt is too loose or tight. Avoid forcing the belt over pulleys, as this can damage both the belt and pulleys.
Rotate the blades by hand after installation to confirm the belt follows the correct path and maintains tension. Reinspect all connections and pulleys before operating the mower. Replace any worn or frayed sections of the belt immediately to maintain optimal cutting performance.
Maintain a small set of tools on hand for future adjustments, including a wrench for idler bolts and a screwdriver for pulley guards. Regular inspection and proper installation extend the life of the belt and prevent unexpected breakdowns during mowing.
Locating and Identifying Key Pulleys and Belt Paths
Begin by positioning the mower deck on a flat surface with the engine off and parking brake engaged. Locate the engine pulley, which drives the belt system, near the center of the deck assembly. From the engine pulley, trace the belt toward the mandrel pulleys that connect directly to each blade spindle.
Identify the idler pulleys, typically mounted on spring-loaded brackets, which maintain proper belt tension. These are often positioned near the front and sides of the deck. Note the routing pattern: the belt wraps around the engine pulley first, then passes over the idler pulley closest to the front, continues to the left and right mandrel pulleys, and returns to the rear idler before completing the loop back to the engine pulley.
Check for alignment marks or notches on each pulley to confirm correct positioning. Ensure the belt sits fully in the pulley grooves without twisting. Verify that all idlers can move freely under spring tension, allowing the belt to adjust naturally during operation.
Use a reference diagram specific to the 48-inch Simplicity deck to cross-check each pulley and path. Pay close attention to the routing sequence for the blade mandrels, as improper alignment can cause uneven blade rotation or premature belt wear.
After confirming all pulley positions and belt paths, manually rotate the pulleys to ensure smooth movement. Inspect for any interference points where the belt could rub against the deck frame or brackets, adjusting idler placement if necessary. This ensures consistent power transfer from the engine to the cutting blades.
Step by Step Belt Installation and Tensioning
Begin by positioning the mower deck on a flat surface and ensuring the engine is off and key removed. Verify that the old belt is fully removed before installing the new one.
-
Locate all pulleys on the deck, including the idler, spindle, and engine pulleys. Identify the correct belt path using the deck diagram specific to the 48-inch model.
-
Place the belt around the engine pulley first, ensuring it sits fully in the pulley grooves. Align it along the path marked on the deck diagram.
-
Route the belt around the spindle pulleys for each blade. Maintain consistent tension across all blades by keeping the belt seated correctly in every groove.
-
Loop the belt over the idler pulley. If the idler has a spring-loaded arm, pull it gently to allow the belt to slide into place without forcing or twisting.
-
Inspect the entire belt path for proper alignment. Ensure the belt sits flush against each pulley and that there are no twists or overlaps.
-
Adjust the tension using the tensioning bolt or lever. Check the belt deflection by pressing downward at the midpoint between pulleys; a standard deflection is around 1/2 inch for the 48-inch deck.
-
Secure all tensioning components and recheck the belt alignment. Rotate the blades by hand to verify smooth movement and correct belt tracking before starting the engine.
Final check: confirm all pulleys spin freely and the belt maintains consistent tension without slipping. Make minor adjustments to the idler or tensioner as needed before operating the mower.
Recognizing Wear Signs and Scheduling Belt Replacement
Inspect the mower deck belt for visible cracks along the ribs and edges. Cracks wider than 1/16 inch indicate that the belt has lost flexibility and should be replaced immediately. Look for fraying or splitting along the sides, which signals that the belt is rubbing against pulleys incorrectly or has stretched beyond its tolerance.
Check the belt’s tension by pressing it midway between pulleys. A properly tensioned belt should deflect approximately 1/2 inch under moderate pressure. Excessive slack or a belt that feels brittle signals imminent failure and requires replacement. Listen for unusual squealing during operation; persistent noise often points to glazing or worn spots on the belt surface.
Monitor wear patterns on pulleys as well. Shiny or grooved areas correspond to uneven belt contact, accelerating degradation. Replace the belt if you notice noticeable material missing or if fibers are visibly pulling apart. Maintaining a log of operating hours helps determine replacement intervals; for a Simplicity 48 inch deck under regular use, belts typically need changing after 150–200 hours of mowing or every 2–3 seasons.
Store spare belts in a cool, dry location away from direct sunlight and chemical exposure. This prevents premature hardening or cracking. Always replace the belt with an OEM-compatible model to maintain proper alignment and tensioning, reducing the risk of premature wear and equipment damage.
