When replacing the drive belt on your Cub Cadet Enforcer 48, accuracy is key. Having a clear and detailed drive belt diagram will ensure proper installation, saving time and preventing damage to other components. Follow the diagram closely to maintain the mower’s performance and longevity.
Start by locating the belt tensioner, as it plays a significant role in keeping the belt under the right amount of tension. Make sure the belt is routed through the pulleys correctly, and pay attention to any specific instructions regarding belt orientation. Incorrect routing can lead to premature wear or malfunction.
Ensure that the replacement belt matches the specifications provided in the diagram. Using a belt with the wrong size or type may cause issues with operation and even damage the mower’s engine or transmission. Keep your tools handy and replace any worn-out components that might affect the belt’s performance.
Cub Cadet Enforcer 48 Drive Belt Diagram

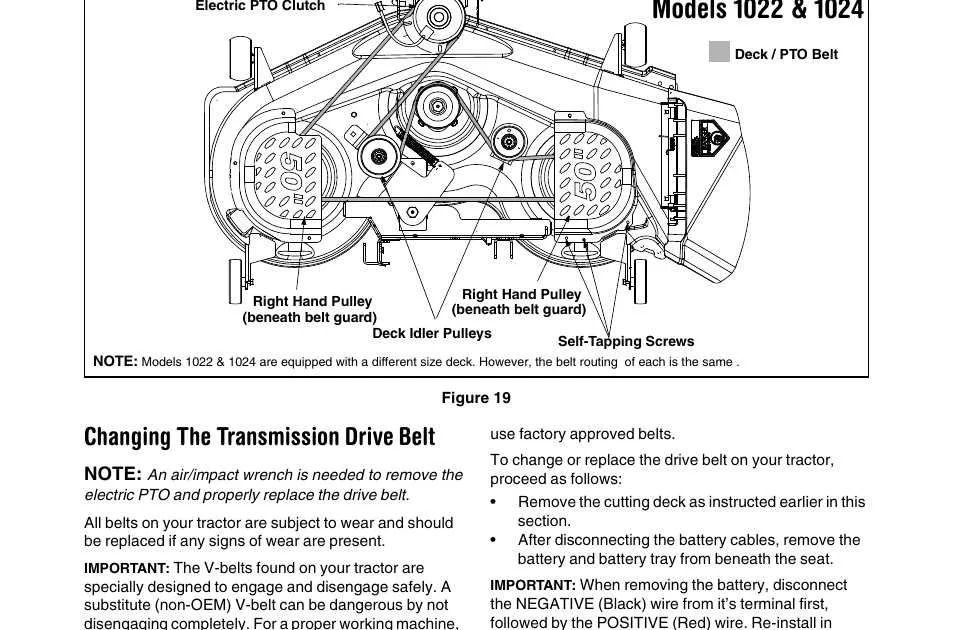

Check the drive belt diagram for the Cub Cadet Enforcer 48 to ensure accurate belt routing. This step is vital when replacing or adjusting the belt to maintain optimal performance. The belt should be routed precisely according to the diagram to avoid wear, slipping, or other operational issues.
The diagram typically shows the belt’s path around pulleys, idlers, and other components. To replace the belt, first remove any covers or shields protecting the drive system. Then, locate the tension adjustment mechanism. Loosen it to release the current belt and carefully remove it.
Refer to the diagram while installing the new belt. Make sure the belt is positioned correctly on all pulleys and idlers. Double-check that the belt tension is set according to the manufacturer’s recommendation to prevent premature wear.
If the belt does not fit properly or appears misaligned, double-check the diagram and re-route it. A misaligned belt can lead to severe mechanical issues, so attention to detail is key. After installation, run the mower briefly to check for any unusual noises or performance issues.
For any doubts about the drive belt replacement process, consult the user manual or a professional technician to avoid damaging components.
How to Replace the Drive Belt on a Cub Cadet Enforcer 48
Lift the mower deck and secure it in place to access the drive belt. Remove the belt cover by unscrewing the bolts or fasteners securing it. Once the cover is off, carefully inspect the belt’s path and the condition of the pulleys.
Next, loosen the tensioner pulley. This will relieve the tension on the belt, allowing you to remove it from the pulleys. Make sure to note the routing of the old belt before removing it to ensure proper installation of the new one.
Install the new belt by following the same routing pattern as the old one. Ensure the belt sits correctly on each pulley and is aligned. Tighten the tensioner pulley to apply tension to the belt.
Once the belt is installed, check its tension by pressing on it with your fingers. It should have some give but should not be too loose or too tight. Reattach the belt cover and secure all fasteners.
Test the mower by engaging the drive system and running it briefly. Listen for any unusual sounds or signs that the belt may not be properly aligned. If everything sounds normal, you’ve successfully replaced the drive belt.
Step-by-Step Guide to Understanding the Cub Cadet Enforcer 48 Drive Belt Diagram
To replace or inspect the drive belt on your Cub Cadet Enforcer 48, follow these steps carefully using the drive belt diagram. Knowing where each part fits ensures smooth operation and avoids unnecessary repairs.
- Locate the Drive Belt Diagram: Check the operator’s manual or the underside of the deck for the drive belt diagram. This will show the path the belt takes around pulleys, idlers, and other components.
- Remove the Deck: Lift the mower deck and disengage the PTO (Power Take Off) clutch. This gives you access to the belt system.
- Identify Key Components: Look for the main drive pulley, the tensioner pulley, and the idler pulleys. The diagram will show where each part connects. Pay close attention to how the belt interacts with the tensioner.
- Check the Belt Routing: The belt must run correctly around the pulleys to ensure proper movement. Follow the diagram step by step, making sure the belt fits securely in each groove of the pulleys.
- Replace the Belt (if needed): If the belt is worn, cracked, or damaged, replace it by sliding it off the pulleys and installing the new one. Ensure the new belt is routed as per the diagram.
- Reassemble the Deck: After checking the belt, reattach the deck to the mower. Ensure all components are secure and properly aligned.
- Test the Mower: Before starting the mower, turn the wheels manually to ensure the belt is correctly positioned and the system moves freely.
Following the diagram closely during replacement or maintenance reduces the chance of errors and ensures that your mower runs smoothly for longer periods. Always keep the diagram on hand for future reference, especially if you need to replace the belt again or perform further repairs.
Common Issues with the Cub Cadet Enforcer 48 Drive Belt and How to Fix Them
Loose or Slipping Belt can result in poor performance or complete loss of power. Check the belt tension using the tensioner pulley. If the belt feels loose, tighten the tensioner to restore the correct tension. Inspect the belt for wear and replace it if it’s cracked or frayed.
Worn Pulley often causes the belt to wear out faster. A damaged pulley can misalign the belt or add unnecessary friction. Check all pulleys for signs of wear or damage. Replace any worn-out pulleys to prevent further damage to the belt.
Incorrect Belt Routing can lead to operational problems. Ensure the belt follows the correct path as shown in the manufacturer’s diagram. If the routing is incorrect, the belt may slip off or operate unevenly. Reinstall the belt according to the diagram to fix this issue.
Debris Around the Belt can obstruct smooth movement. Grass clippings or dirt can get caught around the belt and pulleys, causing the belt to slip or wear prematurely. Regularly clean the area with a brush or air compressor to remove debris and maintain optimal performance.
Misaligned Pulleys will affect how the belt functions. If the pulleys are not aligned properly, they can cause the belt to run at an angle, leading to uneven wear. Inspect the alignment and adjust the pulleys as needed by loosening the pulley bolts and realigning them.
Belt Breaking or Fraying indicates it’s time for a replacement. A broken or frayed belt can stop the mower from moving or cause further damage to the system. Replace the belt with the correct size and type, and always check for proper installation.
