The 2007 Dodge Ram 3500 with the 6.7 Cummins engine relies on the serpentine belt to drive various engine accessories. Identifying the correct routing and tension is key for proper engine performance. Ensure the belt is routed according to the official diagram to prevent premature wear or failure.
The serpentine belt diagram for the 6.7 Cummins engine is straightforward but requires attention to detail. Each pulley plays a specific role, from the alternator to the power steering pump. A misaligned belt can cause significant damage to these components.
Check the belt for signs of wear such as cracking, fraying, or stretching. If the belt shows any of these signs, it’s time to replace it. Make sure to follow the exact diagram to avoid mistakes that could affect the vehicle’s performance.

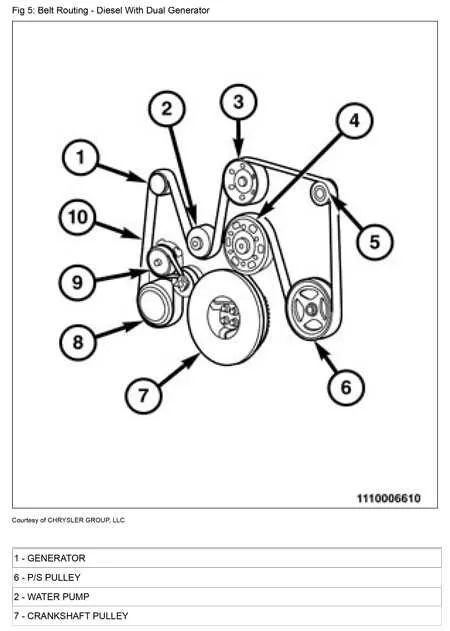

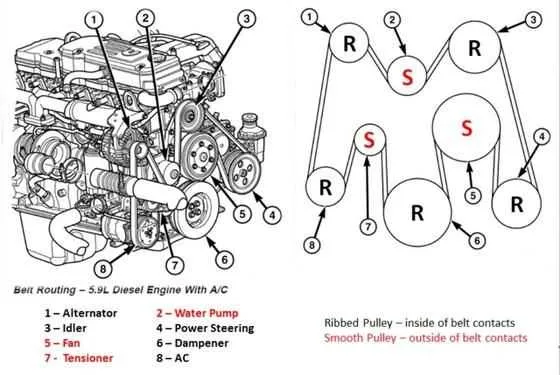

2007 Dodge Ram 3500 6.7 Cummins Serpentine Belt Diagram
To replace or maintain the serpentine belt on a 2007 Dodge Ram 3500 6.7 Cummins, it’s crucial to follow the correct routing as shown in the diagram. The serpentine belt controls multiple components of the engine, including the alternator, power steering pump, and air conditioning compressor. Incorrect routing can lead to engine damage or malfunction of these systems.
Start by identifying the belt’s tensioner. The tensioner plays a key role in maintaining proper tension across the belt. Use a socket wrench to rotate the tensioner and release tension before removing the belt. Ensure that the belt is removed gently to avoid damaging surrounding components.
The belt’s routing should pass over several pulleys in a specific sequence. Typically, this involves the following steps:
- Pass the belt around the crankshaft pulley, which is located at the bottom of the engine.
- Guide the belt up to the water pump pulley.
- Next, route the belt around the idler pulley and power steering pump pulley.
- Ensure the belt runs around the alternator pulley, which is critical for charging the vehicle’s battery.
- The last part of the routing should include passing the belt over the air conditioning compressor and back to the tensioner pulley.
Once the belt is correctly routed, use the wrench to release the tensioner and secure the belt in place. Make sure the belt is aligned properly on all pulleys and that there are no twists in the belt. After installation, check for smooth operation by turning on the engine and listening for any unusual noises. If the belt squeals or the tensioner makes an abnormal sound, it’s likely that the belt is not installed correctly or the tensioner is faulty.
Regular inspection of the serpentine belt is important to detect signs of wear. Look for fraying, cracks, or shiny spots on the surface of the belt, as these may indicate a need for replacement. Proper maintenance will ensure optimal performance of your Dodge Ram 3500 6.7 Cummins engine.
How to Properly Route the Serpentine Belt on a 2007 Dodge Ram 3500
To route the serpentine belt correctly on your 2007 Dodge Ram 3500 with a 6.7 Cummins engine, follow these steps. Begin by ensuring the engine is off and the battery is disconnected for safety. Then, locate the belt routing diagram, usually found on a sticker near the radiator or inside the engine compartment.
Start with the tensioner pulley. Position the belt around it, ensuring the ribs are aligned with the grooves. Then, pass the belt over the alternator, followed by the air conditioning compressor, and route it under the power steering pump pulley. The next step is to place the belt around the crankshaft pulley, making sure it’s seated properly. Next, route it over the idler pulley and then the water pump pulley.
Finally, double-check the belt for proper tension. The belt should have enough slack to move slightly, but not be too loose or too tight. Use the tensioner to adjust the belt tension if needed. Once the routing is complete, inspect the belt for any damage, and ensure it is correctly aligned with all pulleys. Reconnect the battery and start the engine to confirm that the belt runs smoothly without any squealing or slippage.
Identifying Common Issues with the Serpentine Belt on a 2007 Dodge Ram 3500
Worn-out serpentine belts can lead to a variety of problems, including engine overheating, power steering failure, or alternator malfunction. If your 2007 Dodge Ram 3500’s serpentine belt shows signs of wear, it’s crucial to inspect it regularly for these common issues.
Cracks on the surface of the belt are often the first visible sign of wear. These cracks can weaken the belt, leading to potential snapping or loss of functionality. If you notice any, it’s time to replace the belt before it breaks under tension.
Another common issue is belt slipping. This occurs when the belt does not maintain proper tension and slips on the pulleys, causing the engine components to operate inefficiently. Listen for squealing sounds when starting the engine or accelerating, which typically indicate slipping. In most cases, adjusting the tensioner or replacing the belt will resolve the issue.
Fraying along the edges of the belt is another clear indicator of damage. This can be caused by debris on the pulleys or improper alignment. It is critical to ensure that the belt is aligned correctly with the pulleys and free from contaminants. A frayed belt needs replacement immediately to prevent further damage to the engine components.
Excessive wear on the ribbed side of the belt is another issue that can arise. This can result from misalignment of the pulleys, which causes uneven wear patterns. Check the alignment of the pulleys if you notice this type of wear, and replace the belt if necessary.
Finally, any unusual noise such as whining or squeaking coming from the engine compartment may point to a loose or misaligned serpentine belt. If the noise persists after adjusting the tension, the belt may be past its prime and require a replacement.
Steps to Replace the Serpentine Belt on a 2007 Dodge Ram 3500
To replace the serpentine belt, begin by securing the vehicle and disconnecting the negative battery cable.
Locate the serpentine belt tensioner. Use a wrench or socket to rotate the tensioner counterclockwise, relieving tension from the belt. Carefully slide the belt off the pulleys, noting the routing path for reinstallation.
Remove the old belt and inspect it for wear. If it shows signs of cracking, fraying, or stretching, replacement is necessary.
Compare the new serpentine belt to the old one to ensure the correct size and length. Route the new belt over the pulleys according to the diagram, making sure it fits snugly on each pulley groove.
Once in place, rotate the tensioner again to allow the belt to slip into position. Ensure the belt is seated properly on all pulleys.
Reconnect the battery cable and start the engine. Check for proper operation and listen for any abnormal noises, indicating improper installation.
| Step | Description |
|---|---|
| 1 | Secure the vehicle and disconnect the negative battery cable. |
| 2 | Rotate the tensioner counterclockwise and remove the belt. |
| 3 | Inspect the old belt for signs of wear. |
| 4 | Compare the new belt to the old one for correct size and routing. |
| 5 | Install the new belt and rotate the tensioner to secure it. |
| 6 | Reconnect the battery and check the belt for proper function. |
