Follow the deck belt path precisely to avoid slippage and uneven wear on the Ariens Ikon 52 mower. The belt wraps around the engine pulley, idler pulleys, and the spindle assemblies, forming a continuous loop that drives the mower deck efficiently.
Inspect the belt for cracks, fraying, or stretching before each mowing season. Replace any belt that shows visible signs of wear. Position the belt according to the diagram provided in the mower manual to maintain proper tension and alignment.
Use the tensioning arm to adjust the belt tension accurately. Too loose tension can cause the belt to slip off the pulleys, while excessive tension may strain the engine and spindle bearings. Check pulleys for proper rotation and clean any debris that might obstruct the belt path.
Store the mower with the belt removed or loosened if it will remain unused for several months. This prevents permanent deformation of the belt and extends its service life. Regularly lubricate the spindle bearings to ensure smooth operation and consistent belt performance.
Ariens Ikon 52 Deck Belt Diagram Practical Guide for Maintenance and Replacement
Always disconnect the spark plug before inspecting the deck belt. Locate the belt path on the Ariens Ikon 52 diagram and identify all pulleys, including the idler and blade spindles. Check each pulley for wear, rust, or wobble, as these can cause belt slippage or premature failure.
Use a wrench to release tension from the idler pulley, then carefully remove the old belt. Compare it to the new belt to ensure matching length and width. Route the new belt according to the diagram, making sure it sits properly in all pulley grooves and follows the correct routing sequence for smooth operation.
After installation, rotate the deck manually to confirm the belt moves without binding or rubbing against any components. Adjust the idler tension so the belt maintains firm contact without overstressing pulleys. Inspect the belt periodically for cracks, fraying, or glazing, replacing it immediately if any damage appears to maintain consistent cutting performance.
Locate and Identify All Deck Belts on the Ariens Ikon 52
Begin by raising the deck to its highest position and securing it with the lift assist. This provides clear access to all pulleys and belt paths. Identify the primary drive belt connecting the engine pulley to the deck drive spindle; it is typically the widest and runs in a triangular path between the engine, idler, and spindle pulleys.
Next, locate the idler belt, which maintains tension on the deck drive system. Trace the belt from the idler pulley, usually mounted near the center of the deck, to the spindle pulleys. Verify each spindle pulley connection to ensure the belt loops correctly over the deck blades.
Inspect the mower engagement belt, often routed through a separate pulley near the engine. Confirm that it passes over the PTO clutch pulley and aligns with the deck drive path without twisting. Each belt should sit fully in the pulley grooves and follow the manufacturer’s diagram for the Ariens Ikon 52.
Check the tension of every belt manually by pressing down on the midpoint of each span. Proper tension ensures smooth operation and prevents slipping. Make a note of the belt orientation and routing before removal or replacement to maintain accurate installation.

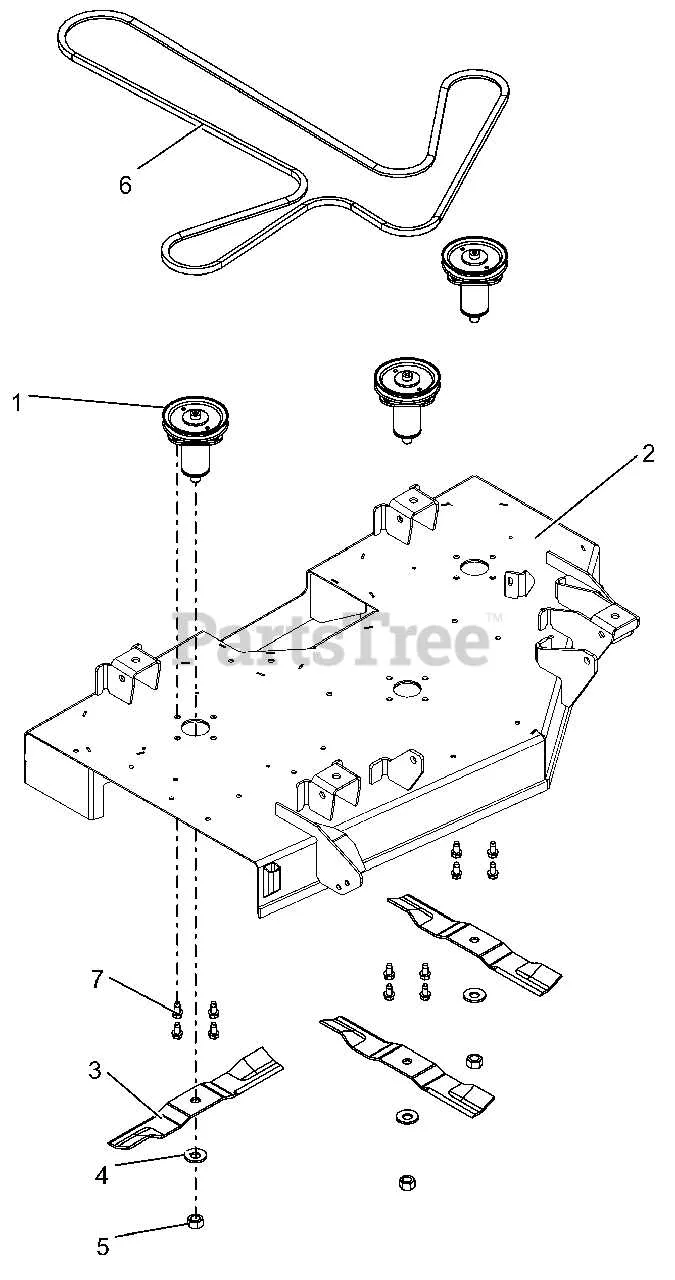

Step-by-Step Diagram for Correct Belt Routing
Follow these instructions to route the Ariens Ikon 52 deck belt accurately, preventing slippage and extending belt life.
- Begin by positioning the belt around the engine pulley nearest to the mower’s front. Ensure the belt sits fully in the pulley groove.
- Guide the belt under the deck idler pulley located on the right side of the deck. Maintain a slight tension to keep it aligned.
- Route the belt around the left deck idler pulley, making sure it moves smoothly without twisting.
- Loop the belt around the spindle pulleys connected to each cutting blade. Confirm the belt rests in each pulley groove and does not cross over itself.
- Pass the belt over the deck belt tensioner. Engage the tensioner arm to apply proper pressure, ensuring the belt is tight enough to prevent slipping but not overly stretched.
- Return the belt to the starting engine pulley, completing the loop. Check all pulley contacts for correct alignment.
Rotate the deck manually to verify smooth movement and correct routing. Adjust idler pulleys if the belt shifts or rubs against any deck component.
- Inspect the belt for cracks, fraying, or worn sections before installation.
- Replace any misaligned pulleys to maintain consistent tension and avoid premature belt failure.
- Confirm that the belt follows the exact path shown in the Ariens Ikon 52 deck belt diagram, matching each pulley position precisely.
Troubleshooting Common Belt Tension and Alignment Issues
Check the deck belt for proper tension by pressing down at the midpoint between pulleys; a correctly tensioned belt should deflect approximately ½ inch. Excessive slack can cause slipping, while overtightening stresses the belt and pulleys.
Inspect pulleys for wear, debris, or wobbling. Misaligned pulleys often produce a squealing sound and uneven belt wear. Adjust the idler and spindle pulleys to ensure the belt tracks in the center of all grooves.
Examine the belt edges for fraying or glazing. Frayed edges indicate the belt is rubbing against a misaligned pulley, while a shiny surface suggests slipping under load. Replace belts showing significant damage.
Confirm that all idler springs maintain consistent tension. Weak or broken springs reduce belt grip and cause irregular movement. Swap any compromised springs with exact replacements from Ariens.
Rotate the belt manually and watch its path. A belt that shifts laterally indicates a need to realign spindles or adjust deck height. Ensure the deck is level and all mounting bolts are snug.
Regularly clean pulleys and deck surfaces from grass buildup or dirt. Even minor debris can throw off tension and alignment, accelerating belt wear and reducing cutting performance.
