If your Cub Cadet LT1018 lawn tractor isn’t running smoothly, the issue might be with the belt system. Understanding the belt configuration is key to diagnosing and fixing many common problems. The LT1018’s belt diagram lays out the exact path each belt should follow, ensuring proper functionality and preventing unnecessary wear.
To locate the belt diagram for your LT1018, you’ll first want to check the owner’s manual. If you don’t have it on hand, diagrams can typically be found online or directly from Cub Cadet. The diagram will show you how the belts connect various components like the engine pulley, deck, and transmission, making it easy to identify any potential issues such as misalignment or wear.
Make sure to double-check the belt tension while inspecting. A loose or worn-out belt can slip or break, leading to poor performance or even mechanical damage. Replacing the belt is a straightforward process, but ensuring you follow the diagram exactly will save time and help avoid further complications. With the right diagram and a bit of attention, your LT1018 will be back in action in no time.
Cub Cadet LT1018 Belt Diagram
To replace or adjust the belt on a Cub Cadet LT1018, follow the diagram carefully to ensure proper alignment and function. The belt routing is key to the smooth operation of the mower’s drive system. Here is a breakdown of the most common belt configurations for this model:
- Start by disconnecting the battery to avoid any accidental engagement of the mower’s system.
- Remove the deck for better access to the drive system.
- Locate the belt tensioner and release the tension by either removing the spring or using a wrench to slacken the tensioner pulley.

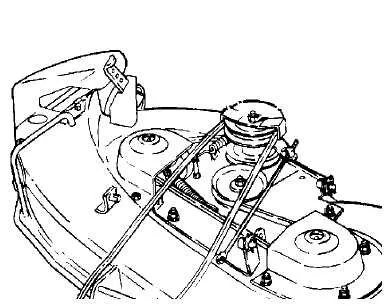

The belt will run from the engine pulley to the transmission pulley, crossing over the deck pulleys. Ensure the belt follows this routing:
- Engine pulley at the front of the mower
- Transmission pulley located at the rear
- Deck pulleys positioned around the mowing deck
After routing the belt, check for any twists or misalignments. Ensure the belt is seated correctly in the pulley grooves. Apply tension by re-engaging the tensioner. Reinstall the deck and check the belt’s function before testing the mower.
If the mower belt has excessive wear, it’s a good idea to replace it with a genuine Cub Cadet replacement part to prevent further issues.
How to Identify the Correct Belt for Your Cub Cadet LT1018
To select the right belt for your Cub Cadet LT1018, check the model number and refer to the owner’s manual for specific part numbers. The manual will list the exact belt type, length, and specifications required for proper fitment. If you don’t have the manual, you can typically find the part number on the belt itself or by contacting a Cub Cadet dealer with your mower’s serial number.
Next, verify the belt’s size. The Cub Cadet LT1018 uses a specific belt length, often marked as a 42″ or 46″ belt, depending on the deck size. Measure the old belt’s length if you’re replacing it and ensure the new one matches exactly. It’s also important to check the belt’s width, as a belt that is too wide or too narrow will not fit properly, affecting performance.
Examine the belt material as well. A high-quality, durable material such as aramid or polyester will offer better resistance to wear and temperature extremes. These materials help prevent premature stretching and ensure smooth operation over time.
If you’re still unsure, consult with a local dealer who can cross-reference your mower’s make and model with the correct belt. Avoid generic belts, as they might not provide the same level of tension or durability as a Cub Cadet-specific option.
Finally, ensure the replacement belt aligns with the mower’s pulley system. Misalignment can lead to excessive wear or damage. Proper tension is also a key factor for smooth operation, so adjust the tension according to manufacturer recommendations after replacing the belt.
Step-by-Step Guide to Installing the Belt on Your Cub Cadet LT1018
First, make sure the engine is off and cool before starting the process. Disconnect the spark plug to avoid accidental startups.
Lift the mower deck using the appropriate tool, ensuring it’s high enough to give you room to work. This can be done by adjusting the deck’s height lever to its highest setting.
Locate the old belt and check its path. You can refer to the belt diagram for accurate positioning. Carefully remove the belt from the pulleys and other components it’s wrapped around.
Inspect all pulleys for wear or damage. If they seem worn out, replace them before installing the new belt to avoid further issues down the line.
Take the new belt and route it according to the belt diagram. Ensure it sits properly within each pulley, and that it’s snug but not too tight. Pay special attention to the idler pulley, as it plays a critical role in maintaining the tension on the belt.
Once the belt is correctly positioned, check that it moves freely through the pulleys without binding. Manually turn the pulleys to verify the belt’s movement and ensure everything is aligned correctly.
Reconnect the spark plug and lower the mower deck. Start the engine and test the belt’s operation at low speed. Listen for any unusual sounds and check for smooth operation.
If everything runs smoothly, you’re done! Make sure to periodically check the belt tension and the condition of the pulleys to ensure long-lasting performance.
Common Belt Issues and How to Troubleshoot Them on a Cub Cadet LT1018
If the belt on your Cub Cadet LT1018 isn’t functioning correctly, start by inspecting it for visible damage. Cracks, fraying, or wear are clear signs that it needs replacing. A damaged belt may slip or not rotate properly, causing the mower to lose power.
Check for proper tension. A loose or overly tight belt can cause poor performance and premature wear. Adjust the tension if necessary, following the manufacturer’s recommendations in the manual. Make sure that the spring-loaded tensioner is functioning smoothly and hasn’t worn out.
Inspect all pulleys and idlers for wear or damage. A misaligned pulley can cause the belt to slip or even come off. Clean any debris from the pulleys, and make sure they spin freely. A seized pulley can result in the belt dragging or breaking prematurely.
Verify the belt routing. Incorrect routing can cause strain on the belt, causing it to stretch or slip. Refer to the LT1018 belt diagram to ensure the belt is installed correctly. It should sit properly in the grooves of each pulley.
Sometimes the issue lies in the deck or engine, especially if the mower is making strange noises. Check for misaligned or damaged components that may be putting extra strain on the belt. If parts are misaligned, the belt could be exposed to excessive friction, leading to premature failure.
Regular maintenance, like cleaning the deck and lubricating moving parts, will prevent future belt issues and ensure smooth operation. Always replace the belt with the recommended OEM part to avoid compatibility issues.
