The drive belt system of the Cub Cadet ZT2 ensures smooth operation of the mower’s transmission. If you experience performance issues or a broken belt, consulting the drive belt diagram is crucial. This diagram provides a clear visual representation of how the belt routes through the mower, helping you understand its path and points of tension.
Start by locating the diagram in the owner’s manual or online for your specific model. It will indicate the belt’s path, including how it connects to pulleys and the engine. Replace the belt if there’s noticeable wear or if the mower’s performance has deteriorated.
For accurate installation, ensure the new belt matches the old one in size and thickness. Incorrect installation can cause the belt to slip or wear out prematurely. Always check for any obstructions or damaged pulleys before proceeding with installation.

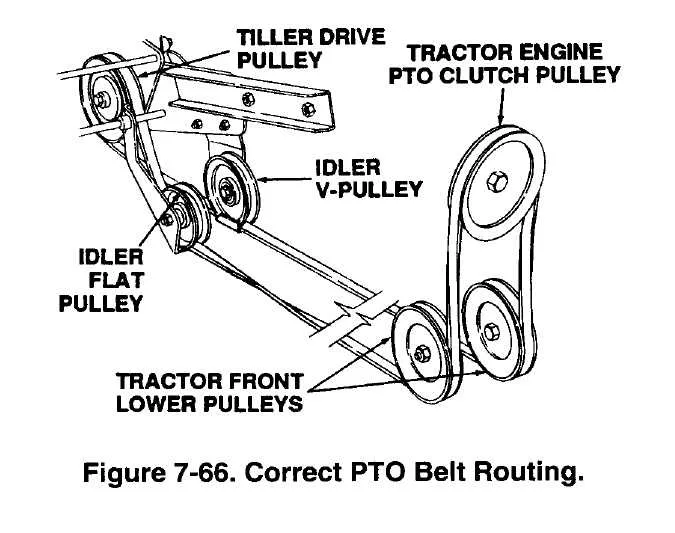

Cub Cadet ZT2 Drive Belt Diagram
Consult the Cub Cadet ZT2 drive belt diagram for precise belt routing and installation. Correct alignment ensures optimal performance and extends the lifespan of the belt and other components.
Verify the belt’s condition before installation. Replace any worn or damaged belts to prevent malfunction. The diagram provides a clear route from the engine pulley to the drive system, showing how the belt should wrap around each pulley.
Check for proper tension after installation. A slack belt may slip, while an overly tight belt can cause strain on the engine and pulleys. Adjust the tension based on manufacturer specifications for smooth operation.
Ensure that the belt aligns correctly with all pulleys, avoiding misalignment that could lead to premature wear or reduced power transfer. If the belt deviates from its designated path, recheck the routing and alignment as shown in the diagram.
How to Install the Drive Belt on Cub Cadet ZT2
To install the drive belt on a Cub Cadet ZT2, first ensure the mower is powered off and placed on a flat surface. Engage the parking brake for safety.
Follow these steps to complete the installation:
- Lift the mower deck by using the deck lift lever. Secure it in the raised position.
- Remove the old drive belt if present. Begin by loosening the tension from the idler pulleys using a wrench to release the belt tension.
- Carefully slide the old belt off the pulleys, starting from the engine pulley, then moving to the transmission pulley.
- Align the new belt on the engine and transmission pulleys, ensuring the grooves are properly seated.
- Route the new belt around the idler pulleys, following the manufacturer’s diagram to ensure correct positioning.
- Once the belt is correctly routed, check its tension. Use the idler pulleys to adjust the belt tension to the correct level.
- Double-check the belt’s path to confirm proper routing and secure all pulleys. Make sure the belt is properly aligned and free of twists.
- Lower the mower deck back to its normal position.
- Test the mower to ensure the belt operates smoothly and the mower functions properly.
After installation, inspect the belt periodically for signs of wear or damage to prevent future issues.
Common Issues with the Cub Cadet ZT2 Drive Belt and How to Fix Them
1. Slipping Drive Belt
If the drive belt on your Cub Cadet ZT2 is slipping, it may be due to improper tension or wear. Check the belt’s tension and ensure it’s properly adjusted. A loose belt will not engage the pulleys effectively. Tighten the belt by adjusting the tensioner pulley, following the manufacturer’s instructions for correct alignment. If the belt shows signs of wear, replace it with a new one.
2. Worn-out or Frayed Belt
Examine the drive belt for visible signs of fraying or cracks. A worn-out belt should be replaced immediately to prevent further damage to the drive system. If you notice any cuts or frays, remove the belt and install a new one. Always use a belt that matches the specifications for your Cub Cadet ZT2 model to ensure proper fit and function.
3. Misaligned Pulley
A misaligned pulley can cause the drive belt to wear unevenly and affect the performance of the mower. Check all pulleys to make sure they are aligned correctly. If any pulleys are misaligned, adjust them to the correct position, ensuring the belt runs smoothly and without friction. Regular inspection of the pulleys will help prevent this issue from recurring.
4. Debris Build-up on the Belt or Pulleys
Debris such as grass, dirt, or mulch can accumulate on the belt or pulleys, leading to reduced belt performance or belt failure. Clean the belt and pulleys regularly using a brush or compressed air. Ensure there is no obstruction or build-up that could prevent smooth operation.
5. Belt Not Installed Correctly
Improper installation of the drive belt is a common issue. If the belt is not routed correctly around the pulleys, it may cause slipping, excessive wear, or even breakage. Refer to the Cub Cadet ZT2 belt diagram for the correct belt routing and ensure it is installed precisely as shown.
6. Tensioner Spring Failure
A faulty tensioner spring can cause the drive belt to lose tension, resulting in slippage or disengagement. Inspect the tensioner spring for signs of wear or damage. If it is not functioning correctly, replace it with a new one to restore proper tension to the drive belt.
Choosing the Right Replacement Drive Belt for Cub Cadet ZT2
For optimal performance, select a replacement drive belt that matches the original specifications. Check the model number of your Cub Cadet ZT2 and ensure the belt matches the exact length, width, and material requirements. Using the wrong size or material can cause premature wear and reduce efficiency.
Always refer to the owner’s manual for the exact belt specifications, including part numbers. When purchasing, confirm the part number with the retailer or manufacturer to avoid incorrect fits. Opt for belts made of durable rubber compounds that can withstand high tension and friction.
If the original belt has any wear signs, like cracks or fraying, replacing it promptly is key to maintaining machine performance. Additionally, inspecting the pulleys for wear is recommended, as damaged pulleys can accelerate belt wear.
Verify that the replacement belt is compatible with the ZT2’s drive system. Some belts are designed for specific models, so avoid generic options. Always use belts recommended by the manufacturer to ensure safe and reliable operation.
