If you’re working on a 2014 Chevy Malibu and need to replace or inspect the serpentine belt, the diagram is your first step. The serpentine belt in your Malibu drives multiple components, including the alternator, power steering pump, and air conditioning compressor. It’s essential to know the exact routing to avoid mistakes and ensure everything runs smoothly. Below, you’ll find the specific diagram for your vehicle to guide you through the process.
To begin, locate the serpentine belt tensioner. This is a critical component, as it keeps the belt tight and prevents slippage. Using the correct tools, you can relieve tension on the belt, allowing for removal or inspection. Pay close attention to the routing of the belt around pulleys and other components. A common issue occurs when the belt gets misaligned during installation, leading to squeaks or premature wear. The diagram ensures that each pulley is correctly aligned, preventing such problems.
Once the belt is off, check for signs of wear such as cracks, fraying, or glazing. A worn serpentine belt can cause various issues, from reduced engine performance to failure of the affected components. If you spot any damage, it’s best to replace the belt immediately to avoid further complications.

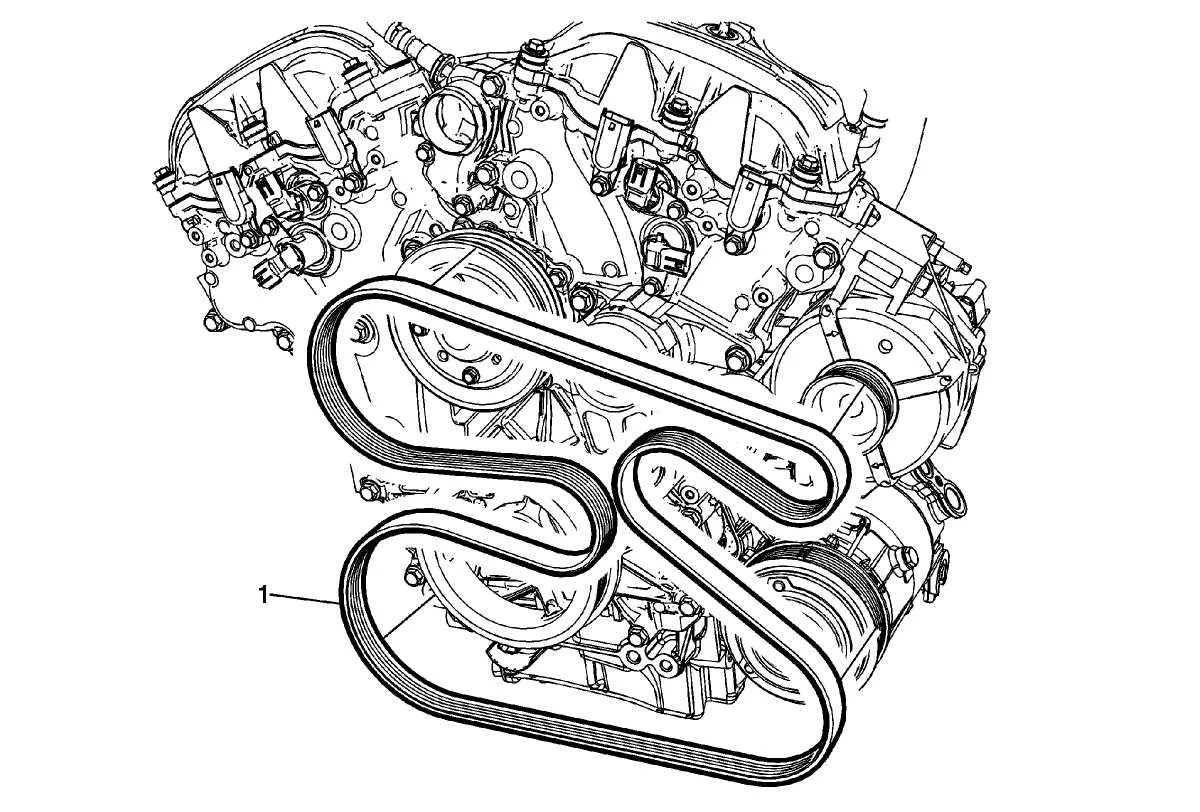

2014 Chevy Malibu Serpentine Belt Diagram
For the 2014 Chevy Malibu, understanding the serpentine belt routing is key for proper maintenance and repair. The serpentine belt in this model powers several engine components, including the alternator, power steering pump, air conditioning compressor, and the water pump.

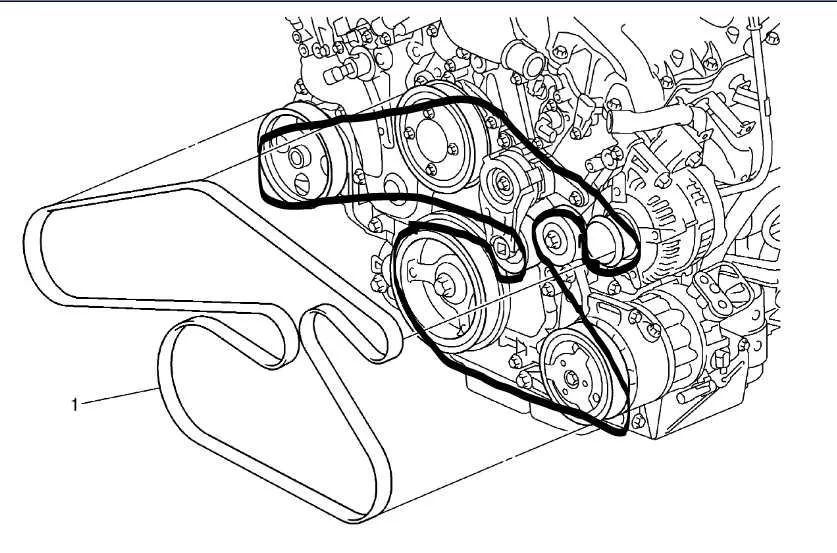

The belt route can be complex, but here’s a simplified overview. Starting at the crankshaft pulley, the belt loops around the tensioner, then to the alternator, followed by the power steering pump. From there, it runs to the AC compressor and water pump, and finally back to the crankshaft pulley. Make sure the belt is routed correctly to prevent slipping and ensure smooth operation of all connected components.
Be aware that a malfunctioning serpentine belt can lead to a loss of power steering, cooling issues, and even engine failure. Inspect the belt regularly for wear, cracks, or signs of stretching. If the belt appears damaged, replace it immediately to avoid further complications.
Consult the vehicle’s service manual for specific details on the routing diagram, as slight variations may exist depending on the engine variant. If in doubt, seek professional assistance to avoid misrouting the belt.
How to Read the 2014 Chevy Malibu Serpentine Belt Diagram
Start by locating the diagram in the vehicle’s manual or under the hood. The diagram shows the path of the serpentine belt around pulleys, tensioners, and other components. Pay attention to the direction of rotation, often indicated by arrows. This ensures the belt is routed correctly.
Identify the components shown in the diagram: the alternator, power steering pump, water pump, air conditioning compressor, and the crankshaft pulley. These components are usually drawn as simple icons, each labeled accordingly.
Look for any tensioners and idler pulleys, which are key to keeping the belt tight. The diagram typically indicates how the tensioner should move to install or remove the belt. Understanding this movement is essential to prevent incorrect belt tension.
If the diagram shows multiple belt routes, choose the one that matches your vehicle’s configuration. Sometimes, the diagram includes notes for models with different engine setups.
Use the diagram to cross-check your work after installation. Double-check that the belt aligns with the correct pulleys and is seated properly. Any misalignment can cause premature wear or belt failure.
Common Issues with the Serpentine Belt on 2014 Chevy Malibu
Wear and Tear is the most common issue with the serpentine belt on the 2014 Chevy Malibu. Over time, the belt experiences friction and heat from continuous use, causing it to crack, fray, or even snap. Regular inspection helps identify early signs of damage, such as visible cracks or glazing on the belt’s surface.
Squealing Noises typically point to a worn-out or misaligned serpentine belt. If the belt slips on the pulleys, it can create a high-pitched squeal. This is often caused by a stretched belt or a failing tensioner. Replacing the belt or adjusting the tension can resolve the issue.
Pulley Alignment Issues can cause premature wear of the serpentine belt. Misaligned pulleys from a damaged or worn bearing can cause the belt to run at an angle, leading to uneven wear. In some cases, a bent or loose pulley might need to be replaced to prevent further damage.
Faulty Tensioner can result in the serpentine belt becoming too loose or too tight. A worn tensioner may not apply enough pressure to keep the belt in place, causing it to slip or make noise. If the tensioner is malfunctioning, it’s important to replace it promptly to avoid further issues.
Improper Installation during maintenance or belt replacement can lead to problems. If the belt is installed incorrectly or the wrong belt size is used, it can slip or become damaged quickly. Always ensure the correct belt is installed according to the vehicle’s specifications.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Chevy Malibu
Start by disconnecting the negative battery terminal to ensure safety. Use a 13mm socket to remove the battery cable. This will prevent any electrical shorts during the repair process.
Next, locate the serpentine belt tensioner. Use a ratchet or breaker bar to turn the tensioner clockwise and release the tension on the belt. Remove the belt from the pulleys carefully. Take note of the belt’s routing or refer to a diagram for later reinstallation.
Inspect the serpentine belt for any signs of wear such as cracks, frays, or glazing. If the belt looks damaged, replace it with a new one of the correct size for your Malibu.
Install the new serpentine belt by following the same routing as the old belt. Make sure the belt sits properly on all pulleys, ensuring it is not twisted or misaligned.
Once the belt is in place, use the ratchet or breaker bar to move the tensioner back into position and tighten the belt. It should be tight, but not over-stretched.
Double-check the belt alignment to make sure it’s seated properly on each pulley. Reconnect the negative battery terminal and test the engine by starting it. Observe the serpentine belt’s movement to ensure it’s operating smoothly and quietly.
If everything looks good, you’re done! The replacement should take about an hour with the proper tools and parts.
