To replace or inspect the serpentine belt on the 2013 Chevy Impala 3.6L, locate the belt routing diagram. This diagram outlines the precise path the serpentine belt follows around the engine pulleys. Ensure you have the correct diagram to avoid misalignment, which can lead to engine failure or belt wear.
Begin by checking the belt tension. If the belt is loose or cracked, it’s time for replacement. A visual inspection is key: look for signs of wear, such as fraying or glazing, and verify the belt’s alignment. The routing diagram ensures the belt moves smoothly over all pulleys and components without unnecessary friction.
Follow the routing diagram closely when installing the new belt. Misrouting can cause slippage, premature wear, or even damage to engine components. Pay particular attention to the tensioner pulley, which controls belt tightness. Ensure the belt is installed correctly and securely to maintain optimal engine performance.

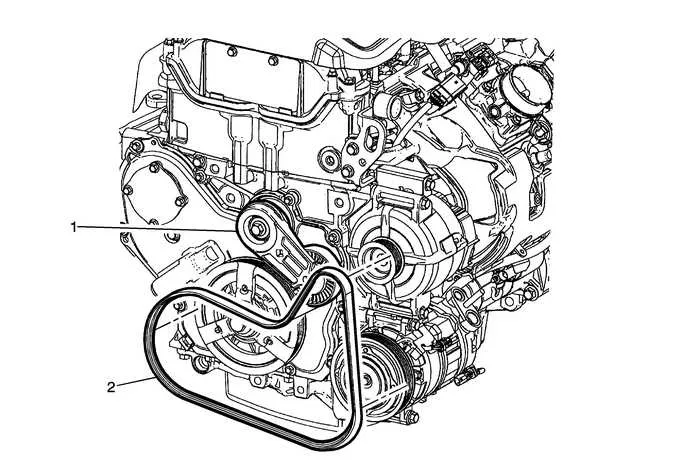

3.6 Liter 2013 Chevy Impala 3.6 Belt Diagram
Locate the serpentine belt diagram on the engine compartment’s labeling. It provides the correct routing path for the belt, ensuring all components are driven properly.
The belt routing includes the alternator, power steering pump, water pump, and AC compressor. Each of these components relies on the belt to function efficiently. Ensure that the belt aligns with each pulley and the tensioner is properly set.
For replacement, use a belt of the correct length and type, specified for the 3.6-liter engine. A misaligned belt can cause premature wear on both the belt and the components it drives. Regular inspection for cracks, fraying, or any other wear signs is crucial for maintaining engine performance.
Check the tensioner periodically to ensure it’s keeping the correct tension on the belt. A weak or worn tensioner can lead to slippage, resulting in the failure of various engine components.
Serpentine Belt Routing for 2013 Chevy Impala 3.6
The serpentine belt routing for the 2013 Chevy Impala 3.6 is straightforward. Start by ensuring the belt is aligned correctly with the components it drives: the alternator, power steering pump, and air conditioning compressor.
Follow this step-by-step guide to ensure proper belt routing:
- Begin with the crankshaft pulley at the bottom, ensuring the belt runs around it first.
- Next, route the belt over the alternator pulley, moving upward and toward the tensioner pulley.
- Pass the belt around the power steering pump pulley, maintaining tension in the system.
- Then route it over the air conditioning compressor pulley.
- Finally, finish by routing the belt around the idler pulley, ensuring the belt is properly seated on all pulleys.
After routing the belt, check for proper tension by using the tensioner. Adjust it if necessary to avoid slippage or improper operation.
Always refer to the vehicle’s service manual for any specific details or variations in routing for different configurations of the engine or accessories.
Common Issues with the Serpentine Belt on 2013 Chevy Impala
Cracking or fraying on the serpentine belt is a common issue in the 2013 Chevy Impala. Over time, exposure to heat and friction causes the rubber to degrade, leading to visible cracks or frays along the belt. If left unchecked, this can result in belt failure, which may cause the engine to overheat or other components to malfunction.
Another frequent problem is belt slippage. When the serpentine belt loses its tension, it may slip on the pulleys. This can result in squealing noises, especially when starting the engine or under heavy load. The loss of tension can be caused by a worn-out tensioner or idler pulley, or if the belt has stretched beyond its limit.
Misalignment of the serpentine belt is another issue. Misalignment can occur if a pulley is damaged or the mounting of the pulleys is off-center. This will cause the belt to wear unevenly, leading to premature failure. It can also lead to increased noise and vibrations in the engine bay.
Worn or damaged pulleys may also contribute to serpentine belt problems. If a pulley is rusted or its bearings are worn out, it can cause friction that accelerates belt wear. Regular inspection of the pulleys is recommended to ensure they are in good working condition.
Finally, contamination of the serpentine belt by oil, coolant, or other fluids can weaken the belt and cause premature failure. Leaks from the engine or nearby components may drip onto the belt, softening it and leading to a loss of structural integrity. Clean the area around the belt regularly to prevent such issues.
Steps to Replace the Serpentine Belt on 2013 Chevy Impala 3.6
1. Disconnect the negative battery terminal to prevent electrical shock.
2. Locate the serpentine belt tensioner and use a ratchet or breaker bar to relieve tension. Rotate the tensioner clockwise to release the belt.
3. Remove the serpentine belt from the pulleys. Carefully note the routing of the old belt to ensure proper installation of the new one.
4. Inspect the pulleys for wear, damage, or alignment issues. Replace any damaged components before proceeding.
5. Position the new serpentine belt according to the factory diagram. Ensure it aligns properly on all pulleys and that it sits correctly in the grooves.
6. Re-engage the tensioner to apply proper tension to the new belt. Verify the belt is secure and not slipping on the pulleys.
7. Double-check the belt’s routing and alignment before reconnecting the battery terminal.
8. Start the engine and observe the belt’s operation. Ensure it runs smoothly without any abnormal noises or slipping.
9. Reconnect the battery and test-drive the vehicle to ensure everything is functioning properly.
