To properly manage the serpentine belt on a 2013 Chrysler 200 2.4, begin by identifying the correct routing for the engine components. The belt must pass through the alternator, power steering pump, and air conditioning compressor, ensuring smooth operation. Refer to the vehicle’s service manual for the precise layout.
Checking the tension on the belt is crucial for proper performance. A slack or overly tight belt can cause premature wear on engine components. Ensure the belt is properly aligned on all pulleys and that there are no signs of fraying or cracking.
For belt replacement, confirm the belt size matches the specifications. It’s important to use the correct part number for the 2.4 engine. Improper belt size can lead to slipping or misalignment, which will affect the overall performance of the vehicle.
After installation, rotate the engine by hand to ensure the belt moves freely over all pulleys without obstruction. Double-check the tension and alignment before starting the engine.

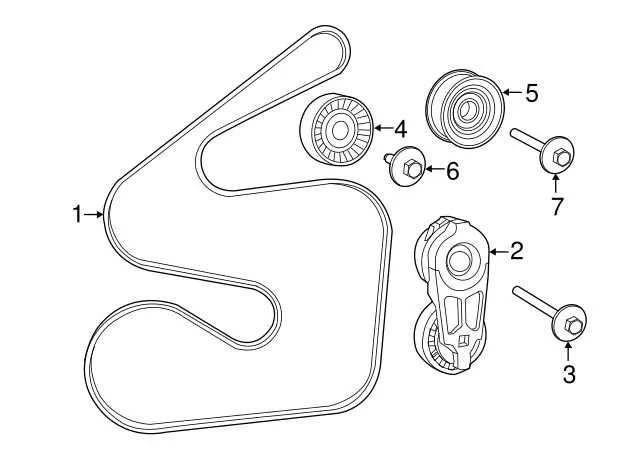

2013 Chrysler 200 2.4 Belt Diagram
Ensure the belt is routed correctly to prevent unnecessary wear on components. The 2013 Chrysler 200 2.4 belt system includes the serpentine belt, which drives several vital accessories like the alternator, power steering pump, and air conditioning compressor. Follow the specific routing diagram for proper installation.
Start by placing the belt over the crankshaft pulley and follow the path along the tensioner, alternator, and other components as shown in the diagram. Make sure the belt is fully seated in the grooves of the pulleys to avoid slipping or misalignment.
If the belt shows signs of wear or damage, replace it immediately to prevent further engine strain. Always double-check the tensioner to ensure the correct amount of tension is applied, as an incorrectly tensioned belt can cause premature failure.
Refer to the vehicle manual for any updates to the diagram or specifications, as manufacturers sometimes make small adjustments to improve system performance or reliability.
How to Read the 2013 Chrysler 200 2.4 Belt Diagram
To read the 2013 Chrysler 200 2.4 belt diagram, focus on the orientation of the serpentine belt and how it interacts with various engine components. The diagram usually shows the path of the belt around the pulleys, including the alternator, power steering pump, water pump, and air conditioning compressor. Each component is labeled, making it easier to identify the correct routing.
Start by locating the tensioner pulley, which is usually placed near the center of the diagram. The belt routing typically starts from the crankshaft pulley and runs to the tensioner before looping around the other pulleys. Make sure to follow the correct path to avoid any misalignment. Ensure the belt is properly installed along its correct routing, especially over the pulleys that require specific tensioning.
Check for any directional arrows or other symbols on the diagram that indicate the belt’s direction of rotation. These details are crucial to ensure the belt functions as intended. Pay attention to the specific markings or notes that indicate pulley orientation, such as any groove patterns on the pulleys that should match with the belt’s grooves.
If replacing the belt, make sure to compare the new belt with the diagram to confirm it’s the correct length and style for your vehicle. The diagram also serves as a reference for reassembly if the belt has been removed for maintenance purposes.
Common Belt Routing Issues in 2013 Chrysler 200 2.4
Incorrect belt routing is a common issue that can cause serious damage to the engine components in the 2013 Chrysler 200 2.4. One of the most frequent problems is misalignment, which happens when the serpentine belt is not positioned correctly on the pulleys. This can lead to excessive wear and tear, reducing the lifespan of the belt and causing potential engine overheating.
Another issue is improper tension, which can result in the belt slipping or making squealing noises. If the belt is too tight, it can put excessive strain on the engine components, such as the water pump and alternator, leading to premature failure. On the other hand, a loose belt will not transfer power efficiently, causing the engine to underperform.
Wear on the belt itself is also a concern. As the belt ages, the grooves and edges can degrade, making it harder to grip the pulleys. This increases the risk of the belt slipping off or breaking, which can lead to sudden engine failure. Regular inspection is key to identifying signs of wear early.
Incorrect pulley alignment can also create problems. If one or more pulleys are misaligned, the belt will not travel smoothly over them, increasing friction and potentially causing belt wear. It’s crucial to ensure that the pulleys are properly aligned and in good condition during every maintenance check.
Lastly, using an incorrect belt size or type for the 2013 Chrysler 200 2.4 can lead to improper fitment and performance. Always verify the specifications for the correct belt to avoid installation issues that could damage the engine components.
Step-by-Step Guide for Replacing the Serpentine Belt on 2013 Chrysler 200 2.4
First, gather the necessary tools: a new serpentine belt, a ratchet wrench, a 3/8-inch drive socket, and a belt tensioner tool. You’ll also need to consult the vehicle’s belt routing diagram.
- Locate the belt tensioner: The tensioner is typically found near the engine’s front, and it keeps the belt tight. Use a belt tensioner tool or a ratchet wrench to relieve tension on the belt.
- Release the tension: Insert the ratchet wrench or belt tensioner tool into the tensioner pulley. Turn it clockwise to release the pressure from the serpentine belt. Be cautious, as the tension can be high.
- Remove the old belt: Once the tension is released, carefully slide the belt off the pulleys. Pay attention to the order and positioning of the belt, as this will be important when installing the new one.
- Inspect the pulleys: Check the condition of the pulleys while the belt is off. Look for any signs of wear, damage, or misalignment. Replace any damaged pulleys before proceeding.
- Install the new belt: Begin by threading the new serpentine belt over the pulleys according to the routing diagram. Ensure that the belt is properly seated on each pulley and that it follows the correct path.
- Reapply tension: Using the ratchet wrench or belt tensioner tool, rotate the tensioner pulley back into place, applying tension to the new belt. Make sure the belt is tight but not overly stretched.
- Double-check the installation: Inspect the belt to ensure it’s correctly aligned on all pulleys and that there’s proper tension. Start the engine and watch the belt in motion for any signs of slippage or misalignment.
By following these steps, you can successfully replace the serpentine belt on your 2013 Chrysler 200 2.4. If you’re unsure about any part of the process, consult a professional mechanic for assistance.
