For the 2013 Chrysler 200 with a 2.4L engine, follow the correct routing for the serpentine belt to avoid issues with power steering, alternator, and air conditioning components. Refer to the manufacturer’s specific diagram for an accurate visual guide. It’s crucial to inspect the belt tension regularly and replace it at intervals recommended in your vehicle’s manual.
The serpentine belt should be routed through the alternator, power steering pump, air conditioning compressor, and the water pump, connecting all these components efficiently. Make sure the belt is properly aligned on all pulleys to prevent slipping or wear. Misalignment could lead to reduced engine performance and premature wear on the belt and accessories.
If the belt appears worn, cracked, or glazed, replace it immediately. You can check the belt’s condition by visually inspecting it or using a belt tension gauge. A properly functioning serpentine belt will ensure your engine runs smoothly without unnecessary strain on the various systems it powers.

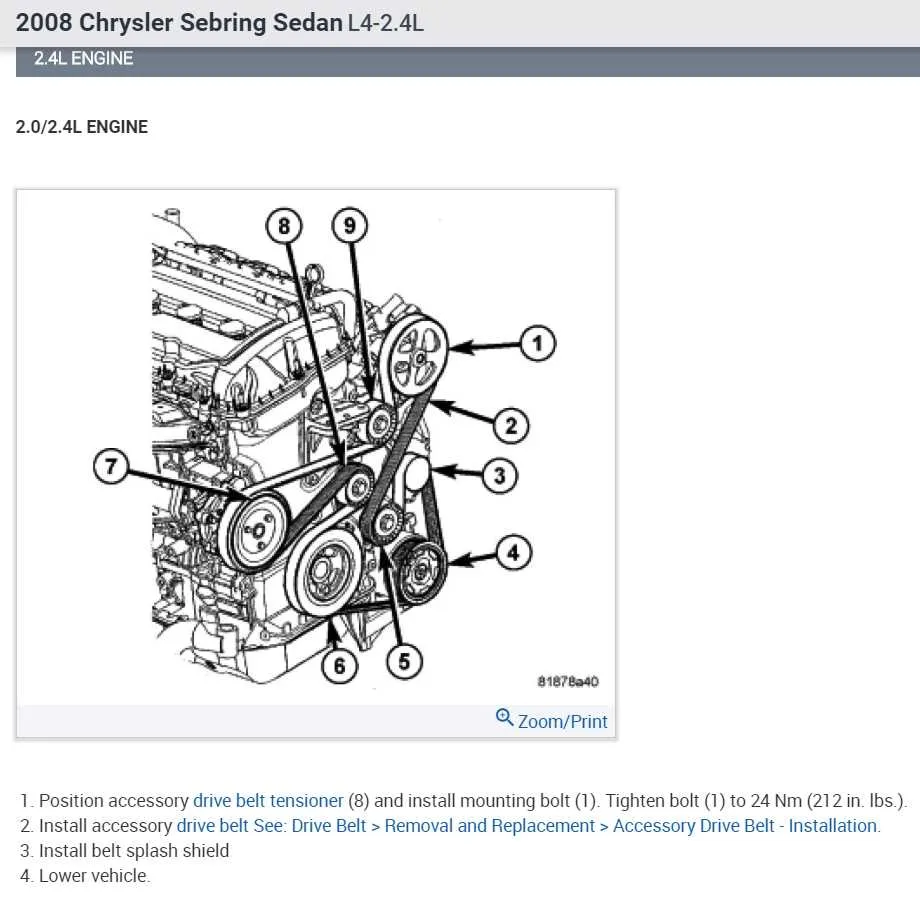

2013 Chrysler 200 Belt Diagram 2.4
The 2013 Chrysler 200 2.4L engine uses a serpentine belt system. To replace or inspect the belt, follow this diagram for accurate routing. The serpentine belt controls various components including the alternator, power steering pump, and air conditioning compressor. Incorrect installation may cause improper functioning of these parts.
Refer to the following key steps to ensure the correct belt routing:
- The belt should loop over the crankshaft pulley, then over the idler pulley and water pump.
- Ensure the belt passes over the alternator and tensioner pulley, with the tensioner keeping appropriate tension.
- Route the belt over the power steering pump and air conditioning compressor, ensuring proper alignment with pulleys.
Before installing the new belt, check the pulleys for wear or damage. It’s also recommended to inspect the tensioner for proper operation. A faulty tensioner can cause the new belt to wear prematurely.
Use a serpentine belt tool to relieve tension from the tensioner when removing the old belt. After installation, make sure the belt is properly seated on all pulleys. If any pulleys are misaligned or damaged, replace them before reinstalling the belt.
Refer to your vehicle’s service manual for any specific torque or tension specifications if needed during installation.

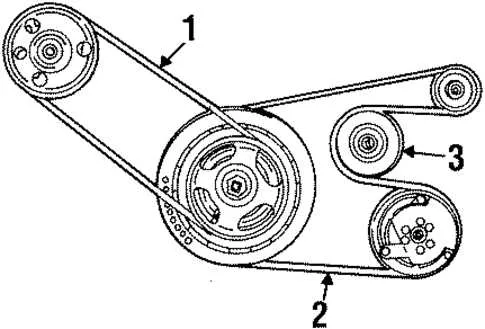

How to Read the 2013 Chrysler 200 2.4 Belt Diagram
To understand the 2013 Chrysler 200 2.4 belt diagram, focus on the main components and their arrangement. First, identify the serpentine belt. This belt drives several key accessories such as the alternator, power steering pump, air conditioning compressor, and the water pump. The diagram shows the route the belt takes around these components.
Look for the tensioner pulley, which maintains proper tension on the belt. It’s typically positioned to one side of the belt path and has a spring mechanism to adjust the tension automatically. The diagram will show the direction in which the belt should be routed around pulleys, with arrows indicating the flow. Pay attention to the number of grooves on the pulleys; this helps identify the belt’s type and whether it fits the specified configuration.
Next, locate the crankshaft pulley at the bottom of the diagram. This is the main driving pulley, powered by the engine. It is connected to the serpentine belt and often shown with a larger size in the diagram. The diagram may also indicate the specific location of any accessory pulleys, which vary by engine configuration.
Check the routing of the belt in the diagram to ensure it crosses the pulleys in the correct order. Improper routing can lead to belt slippage, excessive wear, or engine performance issues.
Lastly, refer to the tension specifications. If you need to replace or adjust the belt, knowing the correct tension range is key. Follow the diagram to make sure the new belt is routed exactly as the original for optimal performance.
Common Belt Routing Issues and Troubleshooting for Chrysler 200 2.4
Check the belt routing diagram carefully if you experience any issues. Incorrect belt routing can cause premature wear and malfunction. Refer to the official diagram for the Chrysler 200 2.4 to ensure the belt is installed correctly.
Here are common problems and troubleshooting steps:
- Loose Belt: A loose belt can cause slipping, noise, and overheating of components. Check the tensioner for wear or damage. If the tensioner isn’t holding proper tension, it may need replacement.
- Belt Misalignment: If the belt isn’t running straight on the pulleys, it could be misaligned. Inspect all pulleys and the routing to verify proper positioning. Misalignment can cause excessive wear and even damage other parts.
- Cracked or Frayed Belt: A damaged belt will fail sooner and might leave you stranded. Regularly inspect the belt for cracks or fraying. Replace it if you see any signs of wear.
- Squeaking or Squealing Noises: These noises often point to a worn-out or loose belt. Check the belt’s tension and adjust as needed. Lubricating the pulleys may help, but only if it’s safe and recommended by the manufacturer.
- Overheating: If the belt drives the water pump and it fails, the engine can overheat. Inspect the belt for proper routing and tension to ensure the water pump is functioning correctly.
- Belt Slippage: Slippage can cause a decrease in the alternator’s performance or battery charge. Make sure the belt is properly routed and tightly tensioned. Inspect the pulleys for rust or corrosion, which can increase friction and cause slippage.
Always ensure the belt is routed as shown in the official diagram to avoid unnecessary issues. If you experience problems even after adjustments, the belt, pulleys, or tensioner may need replacing.
Steps to Replace the Serpentine Belt on a 2013 Chrysler 200 2.4
1. Disconnect the negative battery cable. Use a wrench to loosen the bolt on the terminal and remove the cable to avoid accidental electrical contact.
2. Locate the serpentine belt tensioner. It’s usually found near the top or bottom of the engine. Identify the bolt or pulley on the tensioner that needs to be adjusted to release tension on the belt.
3. Use a socket wrench with the appropriate socket size to rotate the tensioner clockwise or counterclockwise (depending on the model). This will relieve the tension on the serpentine belt, allowing you to remove it.
4. Carefully remove the old belt from the pulleys. Note the routing of the serpentine belt before you take it off to ensure proper installation of the new belt.
5. Compare the old belt with the new one to verify correct size and length. Ensure the new belt matches the part number and specifications recommended for your 2013 Chrysler 200 2.4.
6. Route the new serpentine belt according to the diagram located on the engine or in the owner’s manual. Double-check the routing to ensure it follows the correct path through all pulleys.
7. Place the belt onto the tensioner and pulleys. Use your wrench again to rotate the tensioner and give enough slack to slip the belt onto the last pulley.
8. Slowly release the tensioner, allowing it to apply tension to the new belt. Check that the belt is seated properly on all pulleys, with no twists or misalignment.
9. Reconnect the negative battery cable, ensuring the connection is secure.
10. Start the engine and visually inspect the belt to confirm it is functioning properly. Listen for any unusual noises or signs of improper tension.
