Locate the main deck belt routing first to prevent unnecessary adjustments or damage. For the 46-inch deck, the belt wraps around the engine pulley, idler pulleys, and spindle pulleys in a specific path. Aligning it correctly ensures smooth blade rotation and consistent cutting height.
Check the tension on each pulley before installation. A belt that is too loose can slip under load, reducing cutting performance, while an overly tight belt strains bearings and shortens component life. Adjust the tension using the idler spring or adjustment bolt indicated in the diagram.
Follow the diagram for crossover points carefully. Some 46-inch models feature a crossover over the deck’s center spindle, which is critical to prevent belt flipping or binding. Keep the belt centered on each pulley and verify that it tracks correctly as you rotate the spindles by hand.
Replace worn or cracked belts immediately instead of attempting to reuse them. The diagram shows exact pulley positions and routing angles, making replacement faster and reducing the risk of premature wear. Using a correctly routed belt also minimizes vibration and extends the mower’s overall deck lifespan.
Keep pulleys and deck components clean. Debris accumulation can alter belt alignment, causing slipping or uneven blade engagement. Regularly inspect the deck, idlers, and spindles alongside the diagram to maintain optimal performance and avoid unexpected breakdowns.
Yard Machine 46 Inch Deck Belt Diagram
To replace or adjust the deck belt on your Yard Machine 46-inch mower, it’s crucial to follow the correct belt routing. Here’s the diagram for the typical setup: the belt runs from the engine pulley to the idler pulley, then to the deck pulleys, ensuring proper tension and efficient operation. Make sure the belt aligns with each pulley according to the manufacturer’s specifications to avoid wear or damage.
Start by checking the position of the idler pulley–this is key for maintaining the right tension. If the belt isn’t taut enough, it may slip, causing poor performance or damage to the mower. After securing the belt to the engine and idler pulleys, route it across the deck pulleys. Ensure the belt’s path follows the diagram exactly, with no twists or overlaps.
If you’re unsure about the routing, refer to the mower’s manual for an exact diagram. The manual will show the precise belt routing specific to your model. Also, regularly check the condition of the belt. If it’s frayed or cracked, it’s time to replace it. Replacing the deck belt with the correct part number ensures smooth and consistent mower performance.
How to Identify and Replace the Belt on a 46 Inch Deck
First, inspect the current belt for signs of wear, cracks, or damage. If the belt appears stretched, frayed, or broken, it’s time for a replacement. You can verify this by comparing the tension of the belt when the mower is off and checking the alignment against the deck pulleys.
To replace the belt, lift the deck using the deck lift lever, then secure it with a block or jack to ensure safety. Next, remove any covers or guards that shield the belt system. Take note of the routing path of the old belt before disconnecting it from the pulleys. This will help you install the new belt correctly. If needed, consult your owner’s manual for the exact belt routing diagram.
Once the old belt is removed, carefully place the new belt onto the pulleys, following the same path. Ensure that the belt sits properly within each pulley groove. After the belt is in place, check the tension by pushing the belt with your fingers. It should have slight resistance but not be too tight. Tighten the tension adjustment bolt if necessary to maintain proper tension.
Finally, reattach any guards or covers, lower the deck, and test the mower by engaging the blades. Watch for smooth operation and listen for any unusual noises that might indicate improper belt installation or tension.
Step-by-Step Guide to Understanding the Belt Diagram for Yard Machine Mowers
Start by identifying the correct belt diagram for your Yard Machine mower model. Each model may have slight variations in how the belt system is arranged, so it’s important to refer to the diagram specific to your mower.
Next, locate the mower deck and identify the pulleys involved in the belt system. Typically, you will find the engine pulley, the deck pulleys, and the idler pulleys. Each pulley plays a crucial role in ensuring that the belt operates smoothly and transfers power from the engine to the cutting blades.
- The engine pulley drives the belt, which in turn moves the cutting deck pulleys.
- The idler pulley adjusts the tension of the belt, keeping it tight for efficient operation.
- Make sure that the belt runs over the pulleys without any twists or kinks. A twisted or misaligned belt can cause slippage and affect performance.
Once you’ve visually inspected the pulleys, follow the belt’s path as shown in the diagram. This will allow you to confirm whether the belt is correctly routed. Any deviation from the diagram could lead to improper function or damage to the mower.
Check the belt’s tension. A belt that is too tight can wear out faster, while a loose belt may slip or fail to engage the blades properly. Adjust the tension using the idler pulley, if necessary.

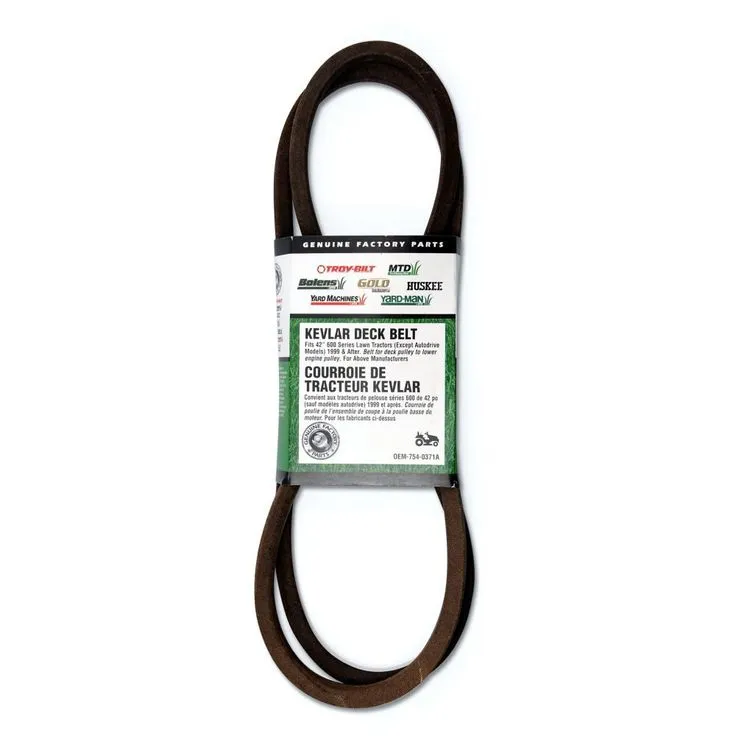

When replacing the belt, it’s a good idea to compare the new belt with the old one. Ensure that the new belt matches the dimensions and specifications outlined in the mower’s manual.
- Look for signs of wear or damage on the old belt, such as cracks or fraying.
- Ensure that the new belt is routed correctly before securing it around the pulleys.
Lastly, once the belt is installed, manually rotate the blades to make sure everything moves freely. If there’s resistance or noise, double-check the belt routing and pulley alignment.
Common Belt Issues and Troubleshooting Tips for 46 Inch Decks
If your 46-inch deck belt isn’t functioning correctly, first check for common issues like wear, misalignment, or damage. These problems can cause uneven mowing or belt slipping.
Start by inspecting the belt for signs of wear, such as cracks, fraying, or glazing. If the belt looks damaged, replacing it with a new one designed for your model will restore performance.
Misalignment can cause the belt to slip off or make an annoying noise. Check the pulley system and ensure that the belt runs smoothly across all pulleys. If any pulley is loose or out of place, tighten or replace it as necessary.
Another common issue is the tension of the belt. If the belt is too loose, it may not engage the mower’s blades effectively. Tighten the tensioner to ensure proper tension, but avoid overtightening, which can cause premature wear.
Occasionally, debris such as grass or dirt can get caught in the pulleys and prevent the belt from moving freely. Clean around the pulleys and the belt path to ensure there are no blockages affecting movement.
Finally, check the belt for proper routing. An incorrectly routed belt can lead to poor cutting performance and premature wear. Refer to your mower’s manual to confirm the correct routing diagram and adjust accordingly.
