To maintain the optimal performance of your John Deere D100, it’s crucial to understand the deck belt system. If the belt becomes damaged or worn out, your mower will experience significant performance issues, including poor cutting efficiency or failure to operate. Referencing the correct belt diagram ensures you can properly identify the right replacement parts and reinstall the belt without errors.

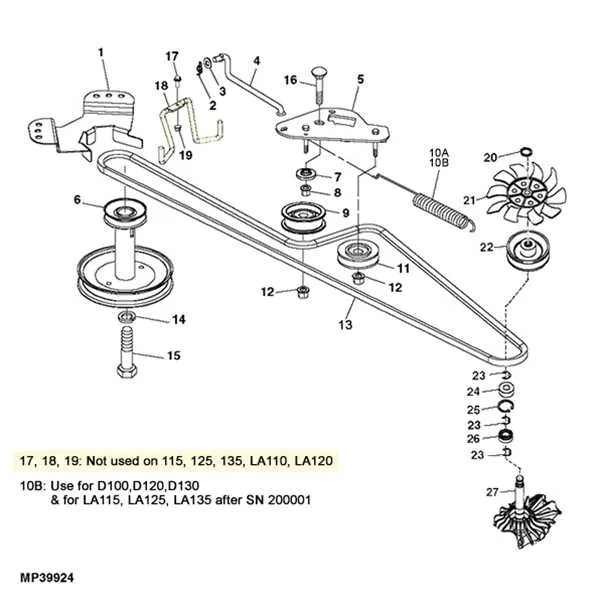

Start by locating the diagram on the mower deck or within the owner’s manual. It provides a clear illustration of how the belt should be routed around pulleys, spindles, and other components. The right diagram will show you the belt’s path and tensioning method, reducing the risk of mistakes during installation.
Once you’ve accessed the diagram, check for any signs of wear in the existing belt and ensure it matches the one shown in the diagram. Replace the belt if it’s frayed or cracked to avoid more serious damage down the line. Replacing the belt with the correct one and following the diagram ensures smooth operation for your mower.
John Deere D100 Deck Belt Diagram

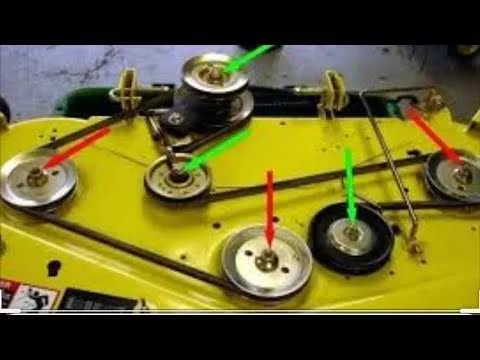

To replace or maintain the deck belt on a John Deere D100 lawn tractor, follow the belt routing provided in the diagram for proper installation. First, locate the belt tensioner pulley and ensure the belt is routed correctly around the pulleys, including the deck spindles and the drive pulley. Be mindful of the direction the belt must take to avoid unnecessary friction and wear. The diagram also shows the specific position of the spring-loaded tensioner, which helps keep the belt tight.
Before proceeding with the installation, disengage the mower deck and make sure the tractor is on a flat surface. Remove the deck from the chassis for easier access to the belt. If the belt is worn or damaged, it’s best to replace it with a new one that matches the part number provided in the owner’s manual. Incorrect belt routing or an improperly tensioned belt can cause the mower deck to function inefficiently or damage the drive system.
Ensure that the belt is installed in the correct sequence. Check for any obstructions that may interfere with the belt’s movement, and ensure the tensioner is moving freely. The diagram includes exact measurements and placement for pulleys to guarantee a smooth operation once the deck is reassembled. After the installation, spin the pulleys by hand to check for smooth rotation, then reassemble the mower deck and test the mower’s functionality.
How to Identify the Correct Belt Routing for the John Deere D100
To correctly route the deck belt on your John Deere D100, follow these steps to ensure proper operation of the mower:
- First, examine the deck and locate the pulleys. There should be a total of four main pulleys: the engine pulley, deck pulleys, and the idler pulley. These are the key points where the belt will pass through.
- Take note of the position of the tensioner pulley. This pulley will adjust the belt’s tension and should be positioned correctly to prevent the belt from slipping off.
- Place the new belt around the engine pulley and then loop it over the deck pulleys. Ensure the belt moves freely along these paths, without twisting.
- After passing the belt over the deck pulleys, thread it through the tensioner pulley and idler pulley, adjusting its path as needed to align with the manufacturer’s recommended routing.
- Double-check that the belt is seated securely in all grooves. If the belt is not routed correctly, it may slip or wear prematurely, leading to reduced performance or damage to the mower.
Consult the mower’s manual or the diagram for a visual reference. Following these steps precisely will ensure proper belt alignment and smooth operation of your John Deere D100.

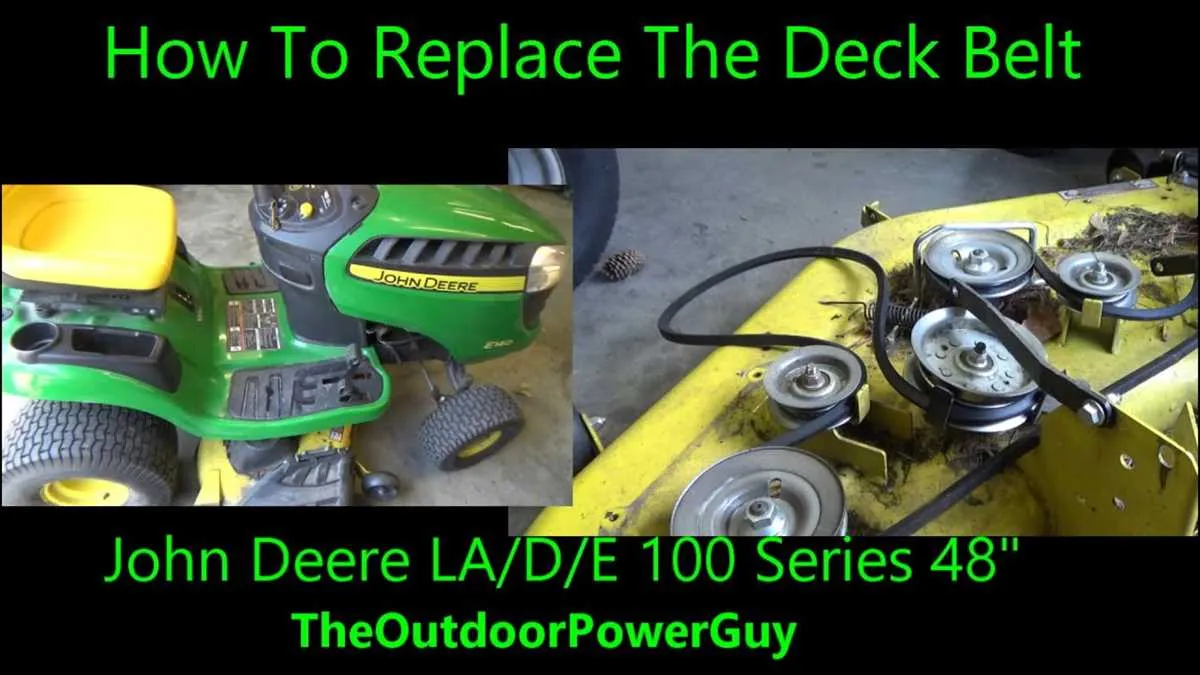

Step-by-Step Instructions for Replacing the Deck Belt on the John Deere D100
1. Disconnect the battery: Before starting, disconnect the battery to avoid any accidents or electrical issues while working on the mower.
2. Lift the mower deck: Use the deck lift lever to raise the mower deck to its highest position. This will provide better access to the belt.
3. Remove the mower deck: Loosen the fasteners holding the deck in place. Detach the deck from the mower by removing the pins and disconnecting any necessary linkages.
4. Remove the old deck belt: Release any tension on the belt by loosening the spring-loaded idler pulley. Slide the belt off the pulleys and the deck spindles, making sure to note how the belt is routed for reinstallation.
5. Install the new deck belt: Place the new belt onto the pulleys, following the routing diagram for the John Deere D100. Make sure the belt fits securely around the spindles and idler pulleys, ensuring proper tension.
6. Reattach the mower deck: Position the deck back into place and secure it by tightening the fasteners and reattaching the pins and linkages you previously removed.
7. Reconnect the battery: Once the deck is secured, reconnect the battery to restore power to the mower.
8. Test the mower: Start the mower and engage the blades to verify that the new deck belt is functioning properly. Check for any unusual noises or movement during operation.
Common Issues with Deck Belts on John Deere D100 and How to Avoid Them
One of the most frequent problems with the deck belt on the John Deere D100 is premature wear due to improper tension. Ensure the belt has the correct tension at all times, as both slack and excessive tightness can lead to quicker damage. Use a tension gauge to check the tension and adjust it according to the manufacturer’s specifications.
Another issue is debris buildup around the belt system. Grass clippings, dirt, and other debris can get caught in the pulleys and around the belt, causing it to slip or wear out faster. After each mowing session, clean the deck thoroughly, paying close attention to areas around the pulleys and belt path.
Misalignment of the pulleys is also a common cause of belt problems. If the pulleys are not aligned properly, it can lead to uneven wear on the belt. Check the pulley alignment regularly and adjust them if necessary to prevent unnecessary stress on the belt.
Friction between the belt and pulleys can also lead to belt degradation. Over time, friction increases as the belt ages, leading to cracks or fraying. Inspect the belt for visible signs of wear, and replace it if you notice any damage. Regularly lubricate the pulleys to reduce friction and extend the lifespan of the belt.
Lastly, using a belt that is not the correct size can cause issues. Always replace the deck belt with one that matches the specifications provided by John Deere. Using an incorrect size can result in poor performance, increased wear, and even belt failure.
