If you need to replace or adjust the deck belt on your John Deere LT155, understanding the correct routing is key. The deck belt powers the mower blades, and improper installation can cause wear and tear on the belt, as well as affect mower performance. Below, you’ll find a step-by-step guide on how to correctly route the deck belt for smooth operation.
The John Deere LT155 uses a specific belt routing diagram, which must be followed precisely to ensure proper belt tension and blade function. Begin by locating the deck belt and examining its path around the pulleys and idler arms. The belt runs from the engine pulley down to the deck, passing through various guides that keep it aligned. Make sure each pulley spins freely and is not obstructed, as friction could shorten the belt’s lifespan.
Tip: Check the condition of the belt and pulleys before reinstallation. A frayed belt or a misaligned pulley could be the reason your mower isn’t cutting properly. Replacing a worn-out belt and ensuring smooth pulley operation will prolong the lifespan of your mower deck.
Once you’ve checked the condition of the parts, follow the routing diagram to correctly position the belt. Each step in the diagram corresponds to a specific pulley, ensuring the belt fits properly and moves without slipping. Pay attention to how the belt crosses over idler arms and tensioners to maintain the proper amount of slack for smooth rotation.
For best results, refer to the LT155 owner’s manual for the exact diagram, as slight differences in mower model years might affect belt routing. If in doubt, consider reaching out to a certified John Deere technician for guidance. Following the proper steps will ensure your mower deck operates at its full potential.

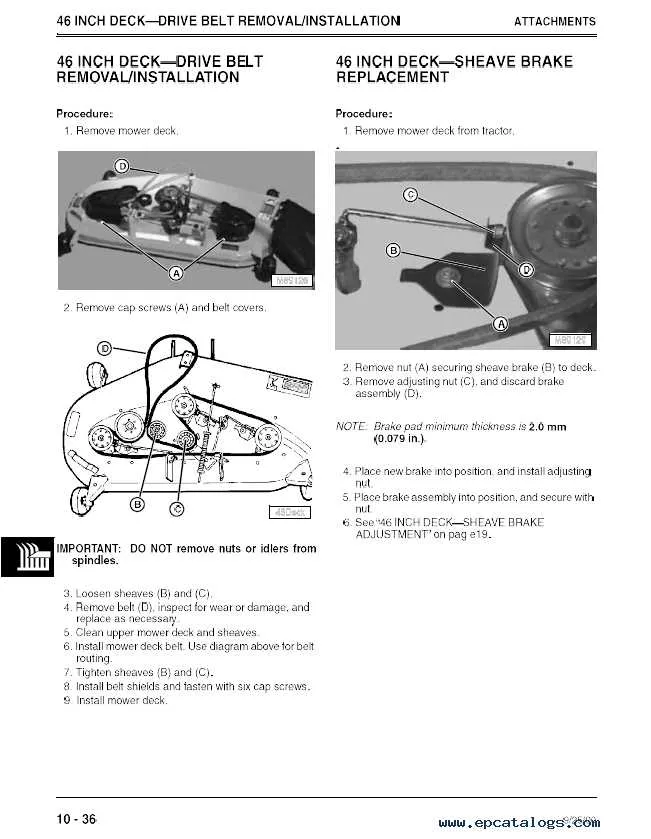

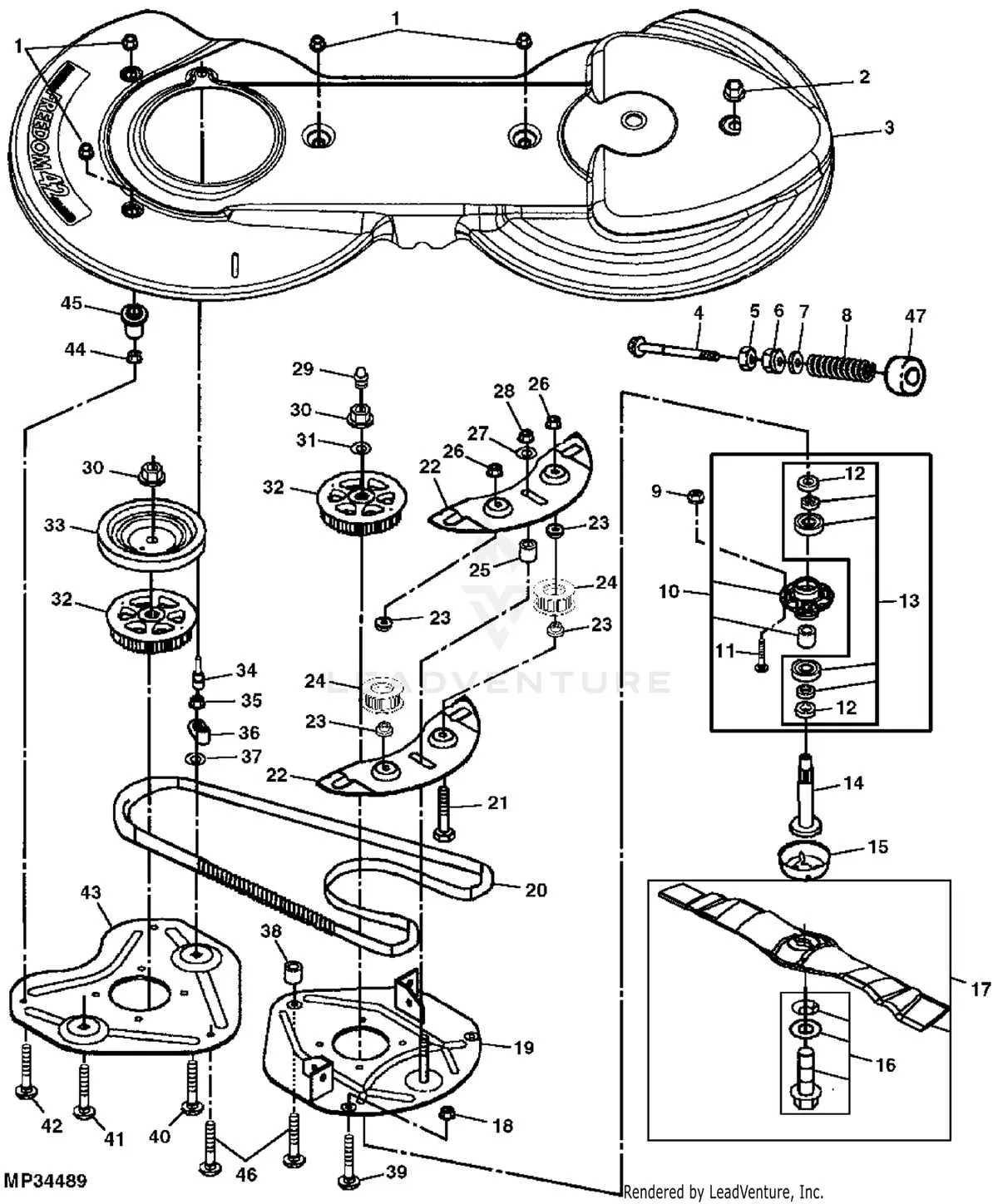

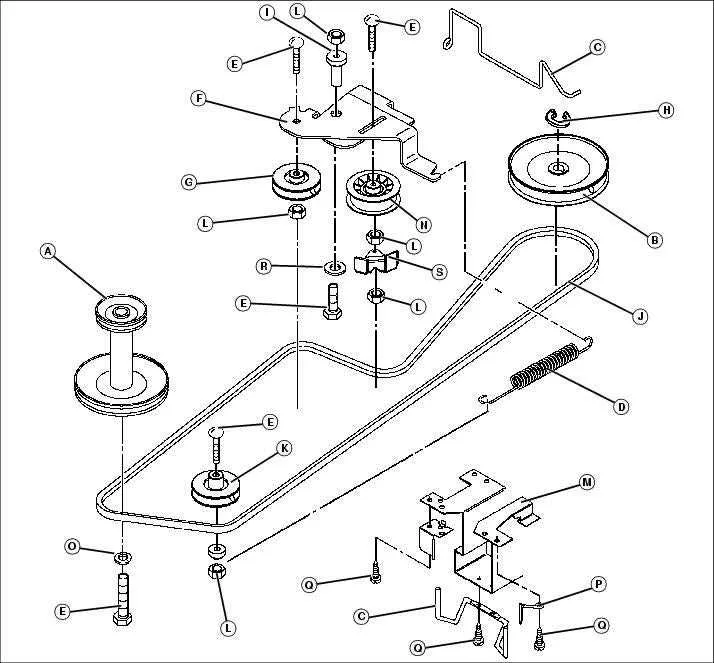

John Deere LT155 Deck Belt Diagram
The John Deere LT155 lawn tractor uses a specific deck belt system that powers the mower blades. To replace or adjust the belt, follow this detailed diagram for proper alignment.
Start by lifting the deck to its highest position. Remove the belt from the engine pulley and the idler pulleys. The deck belt runs through a series of pulleys, including the engine pulley, idler pulleys, and the blades. It is crucial to install the belt around the pulleys in the correct order for optimal performance.
Refer to the diagram to identify each pulley location. The belt should run from the engine pulley to the top idler pulley, then loop around the blade pulleys. Make sure the belt is positioned correctly on the blade spindles to avoid unnecessary wear.
Ensure the tensioner pulley is properly adjusted to maintain adequate belt tension. After the belt is in place, check that it moves freely without any binding. Reconnect the deck and lower it to the operating position.
After installation, manually rotate the blades to confirm the belt is functioning smoothly and there is no slippage. If the belt seems loose or tight, adjust the tension accordingly by adjusting the idler arm.
How to Identify the Correct Deck Belt for John Deere LT155
Check the model number of your John Deere LT155 mower to ensure you’re purchasing the correct deck belt. The LT155 typically uses a 48-inch deck, and the part number for the belt is commonly M127514. Always confirm the specific deck size, as different models may require varying belt lengths or types.
Inspect the existing belt to ensure it is the correct fit. If it’s worn, frayed, or broken, you can compare its length and width with the specifications found in your operator’s manual or online at a reputable parts retailer. Measure the old belt from end to end, and use this length to match with the replacement part.
Look for the deck belt routing diagram on the mower deck itself. This will show the exact path the belt should follow. It’s also helpful to keep a copy of the diagram when replacing the belt, so you can correctly thread the new belt through the pulleys and idlers.
Make sure the belt’s thickness matches the original. A belt that’s too thick or too thin can cause issues with performance or fit, leading to premature wear or malfunction.
Lastly, avoid buying generic belts that don’t meet John Deere specifications. Always opt for a genuine John Deere replacement belt to ensure the best performance and longevity.
Step-by-Step Guide to Installing the Deck Belt on John Deere LT155
First, disconnect the battery to ensure safety while working on the mower. Position the mower on a flat surface for stability. It’s best to elevate the mower deck using a jack or lift to give you better access.
1. Remove the mower deck:
- Loosen the mounting bolts connecting the deck to the frame.
- Slide the deck out from under the mower body carefully, keeping track of any pins or bolts for reassembly.
2. Remove the old deck belt:
- Locate the tension pulley on the deck. This pulley keeps the belt under tension and needs to be released.
- Using a wrench or socket set, release the tension on the pulley and slide the old belt off the pulleys.
- Carefully remove the old belt from the deck.
3. Install the new deck belt:
- Place the new belt on the largest pulley first, usually the one connected to the engine.
- Route the belt around all the pulleys according to the specific diagram for the LT155 deck belt, ensuring it follows the correct path around each pulley.
- Pay attention to the direction of the belt and make sure it’s securely seated in each groove.
4. Reinstall the tension pulley:
- Once the belt is properly positioned, replace the tension pulley to apply the necessary tension to the belt.
- Ensure the pulley is properly tightened to maintain the correct belt tension.
5. Reattach the mower deck:
- Carefully slide the deck back into place under the mower.
- Reattach the mounting bolts and secure them tightly.
6. Test the installation:
- Reconnect the battery and start the mower to test the functionality of the deck and the belt.
- Check for any unusual noises or misalignment during operation.
With these steps completed, your John Deere LT155 should be ready for a smooth operation with a new deck belt installed. Regularly check the belt for wear to ensure optimal performance.
Common Issues with John Deere LT155 Deck Belt and How to Fix Them
If your John Deere LT155 is showing signs of belt issues, here’s how to address some common problems:
1. Belt Slipping or Squealing
When the deck belt slips or makes a squealing noise, it usually indicates that the belt is either loose or worn. Check the belt tension by inspecting the idler pulley. If it’s too loose, adjust it according to the manual’s instructions. If the belt is frayed or cracked, replacing it with a new one is necessary to restore proper function.
2. Belt Breakage
Belt breakage is a serious issue, often caused by excessive wear or misalignment. Examine the entire length of the belt for any signs of damage. If the belt has worn out or snapped, replace it immediately. Ensure that the new belt is routed correctly, following the deck belt diagram to avoid further issues.
3. Deck Vibration
Excessive vibration while mowing can be caused by a misaligned deck belt. Ensure the belt is properly routed and the pulleys are in good condition. If the deck itself is bent or the pulleys are worn, they may cause the belt to track incorrectly. Realigning the deck and replacing faulty components will help resolve this problem.
4. Uneven Cutting
If your mower is cutting unevenly, a stretched or loose deck belt could be the culprit. Check the tension and condition of the belt, ensuring it is securely in place and not too slack. Adjust the tension as needed, and if the belt shows signs of wear, replace it.
5. Belt Off Pulley
Occasionally, the belt may slip off one of the pulleys. This usually happens if the pulleys are misaligned or the belt is not the right size. First, ensure that all pulleys are aligned and functioning properly. If they are worn out or damaged, replace them. A properly sized replacement belt is crucial for smooth operation.
By addressing these issues promptly, you can keep your John Deere LT155 running smoothly and extend its lifespan. Regular maintenance, including belt inspection and proper tension adjustments, will help avoid most of these common problems.
