If you’re replacing or adjusting the serpentine belt on your 2009 Dodge Ram 1500, it’s essential to have the correct diagram at hand. This will ensure that you route the belt properly, preventing potential engine damage or belt failure.
The 2009 Dodge Ram 1500 uses a serpentine belt system to drive various accessories, such as the alternator, power steering pump, and air conditioning compressor. Understanding the correct routing path is key to a smooth operation. Start by locating the belt tensioner, which is typically near the front of the engine, and ensure that the belt is routed over the pulleys in the precise sequence.
For convenience, always refer to the belt diagram that’s usually found on a label attached to the engine bay. If this label is worn or missing, you can find the diagram in the vehicle’s service manual or through online resources. A clear and accurate diagram saves time and prevents mistakes when reinstalling or adjusting the belt.
Once you have the diagram, carefully follow the specified path. Pay attention to the direction of the belt, ensuring it loops over the pulleys correctly. If you’re unsure about the belt’s condition, now’s a good time to inspect it for cracks or signs of wear.

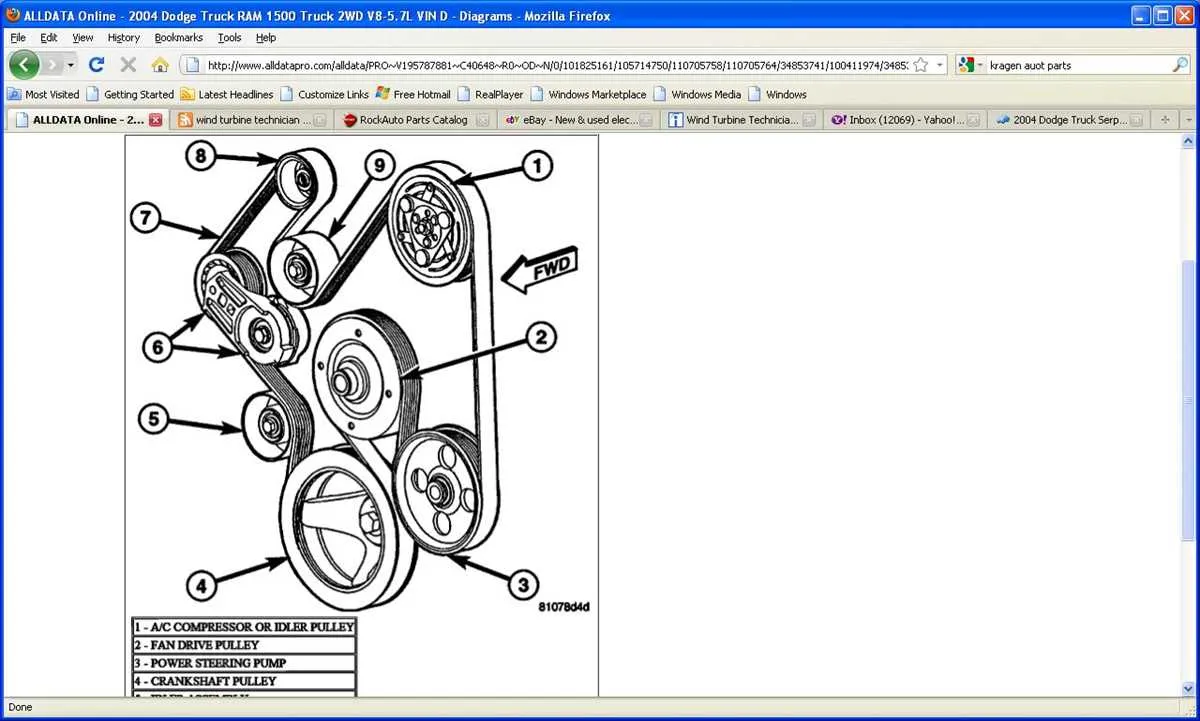

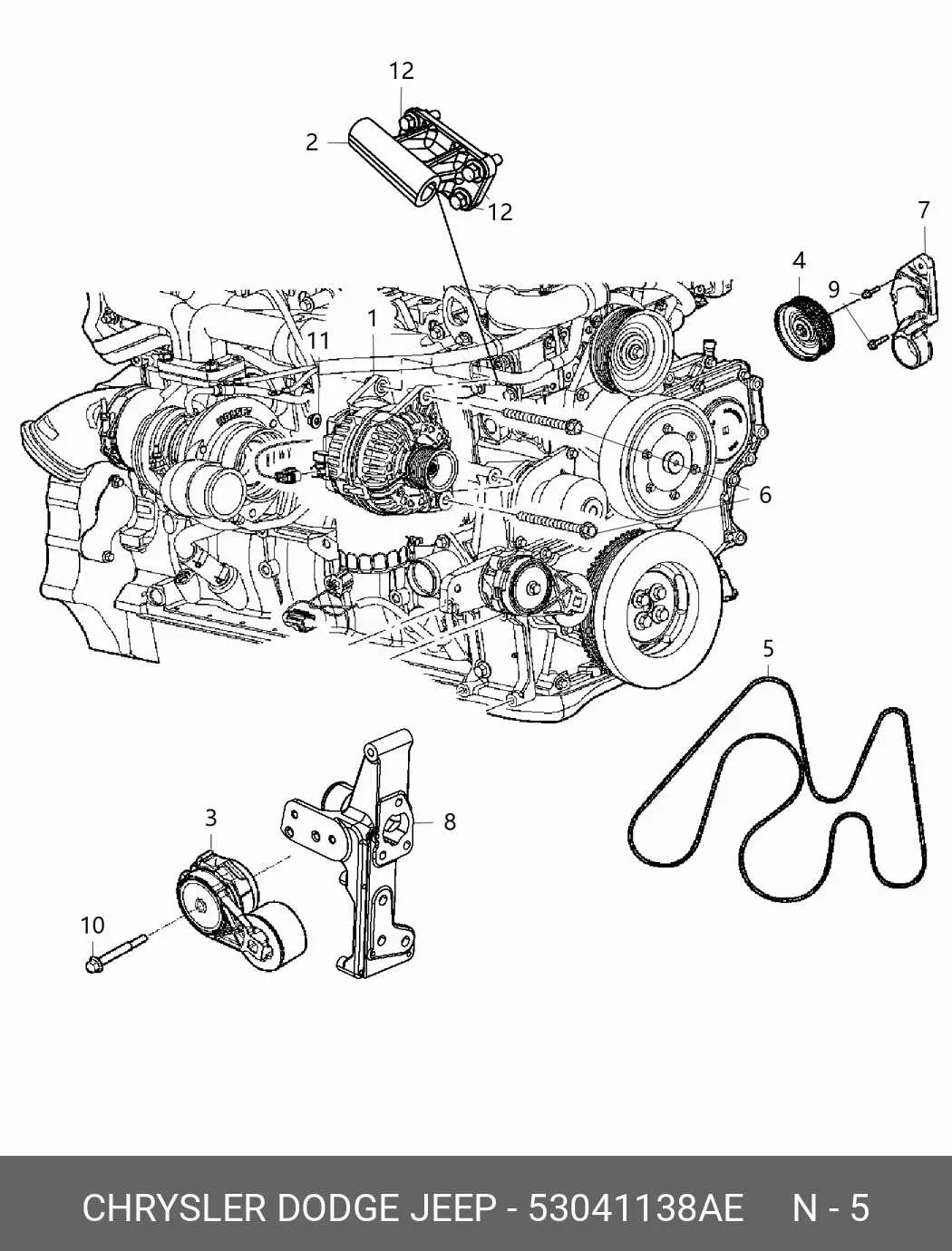

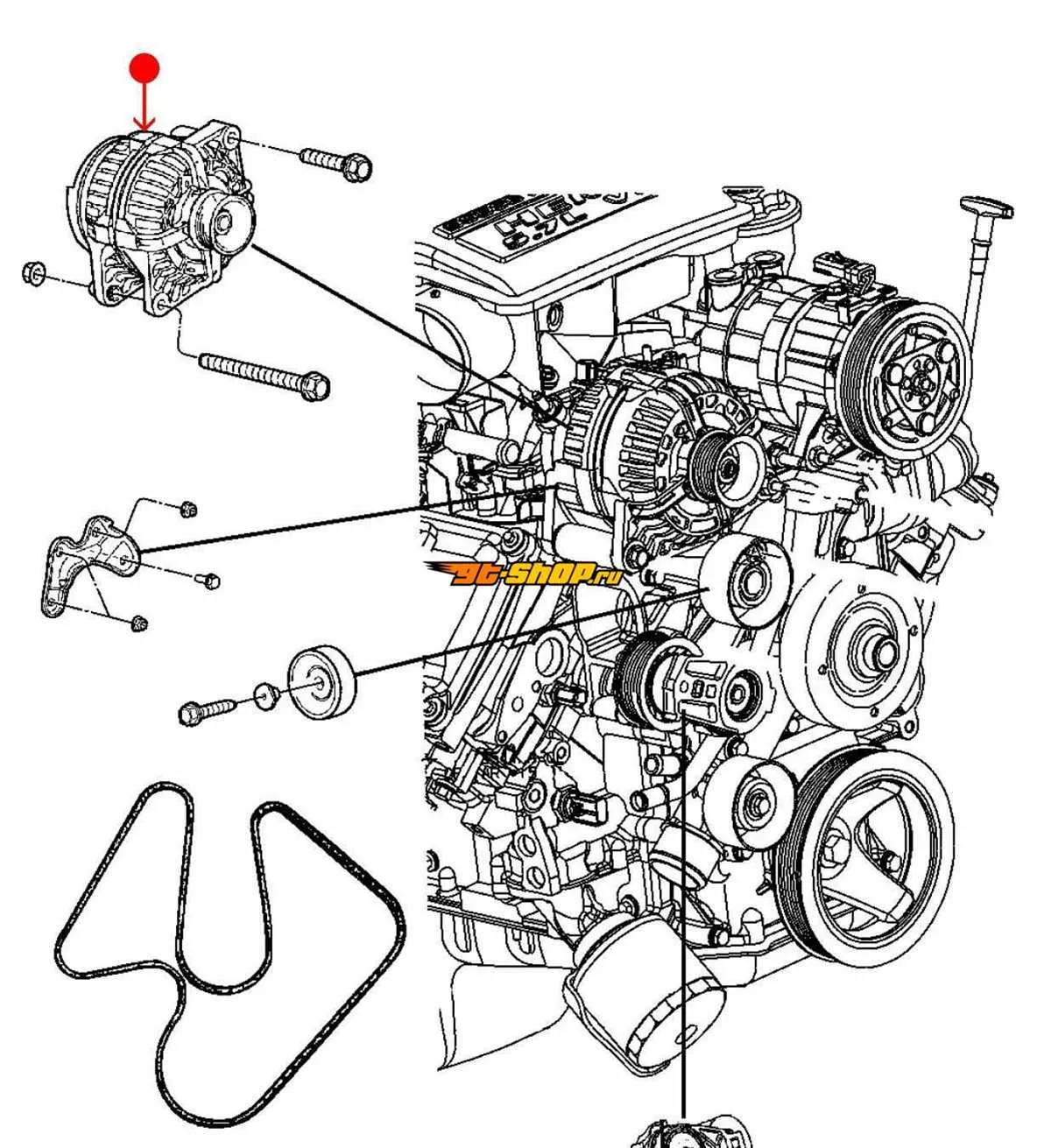

2009 Dodge Ram 1500 Belt Diagram
Check the serpentine belt on your 2009 Dodge Ram 1500 by following the factory-recommended diagram to ensure proper routing and prevent unnecessary wear. This belt drives several engine accessories, including the alternator, power steering pump, and air conditioning compressor. To avoid any malfunction, always verify the belt’s tension and condition regularly.

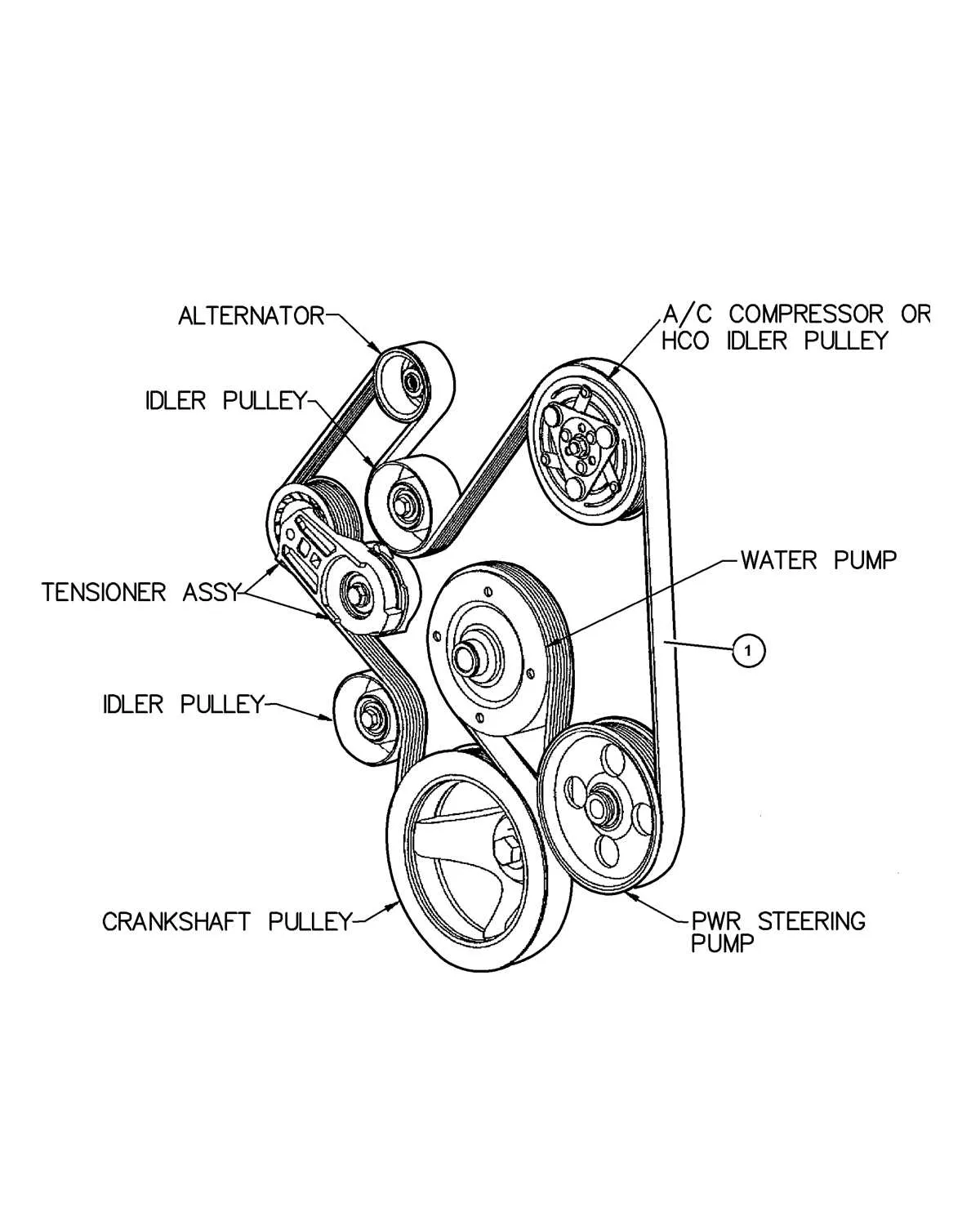

In the 2009 Dodge Ram 1500, the serpentine belt typically runs through a specific sequence of pulleys. The diagram outlines the belt’s path from the crankshaft pulley to the accessories and tensioner. Make sure the routing matches the diagram in your vehicle’s manual to avoid mistakes during installation or maintenance.
For easy access to the diagram, locate the belt routing chart under the hood of your vehicle. It’s often found on a sticker attached to the radiator support or the underside of the hood itself. If the sticker is worn out, consult your vehicle’s service manual for the correct diagram.
When replacing the belt, it’s critical to use the correct size and type for your model. Any deviation in size could lead to improper belt tension, which can result in inefficient operation or premature wear. Always check the belt tensioner’s condition too. If the tensioner is worn, replace it to prevent slippage or squeaking noises.
Remember to inspect the belt for any signs of cracking or fraying. These are common indicators that the belt is nearing the end of its lifespan and may need replacing soon. Regular checks ensure that your 2009 Dodge Ram 1500 runs smoothly without unexpected breakdowns caused by belt failure.
How to Locate the Serpentine Belt Routing on 2009 Dodge Ram 1500
Check the engine compartment for the routing diagram on the radiator support or the front of the engine. It’s typically a sticker or printed label showing the serpentine belt path. If this label is missing or unclear, you can find a clear diagram in the owner’s manual or by visiting the manufacturer’s website.
For additional clarity, the tensioner pulley is often marked with an arrow indicating the direction the belt should move. This helps in ensuring proper alignment when installing a new belt. The serpentine belt routes around the alternator, power steering pump, and air conditioning compressor, with the tensioner pulley adjusting the slack as needed.
If the routing diagram is unreadable, use an online resource or an automotive repair manual specific to the 2009 Dodge Ram 1500. Take note of the pulley positions before removing the old belt to make the replacement process smoother.
Always double-check the routing before tightening the new belt, ensuring it follows the path shown in the diagram and all pulleys are aligned correctly.
Step-by-Step Guide to Replace the Serpentine Belt on 2009 Dodge Ram 1500
To replace the serpentine belt on your 2009 Dodge Ram 1500, you’ll need a few basic tools: a socket wrench, a serpentine belt tool or a long-handled wrench, and the correct replacement belt. Follow these steps for a smooth replacement process.
1. Locate the serpentine belt: Open the hood and find the serpentine belt on the front of the engine. It’s wrapped around various components like the alternator, power steering pump, and water pump. Use the diagram under the hood to understand the routing.

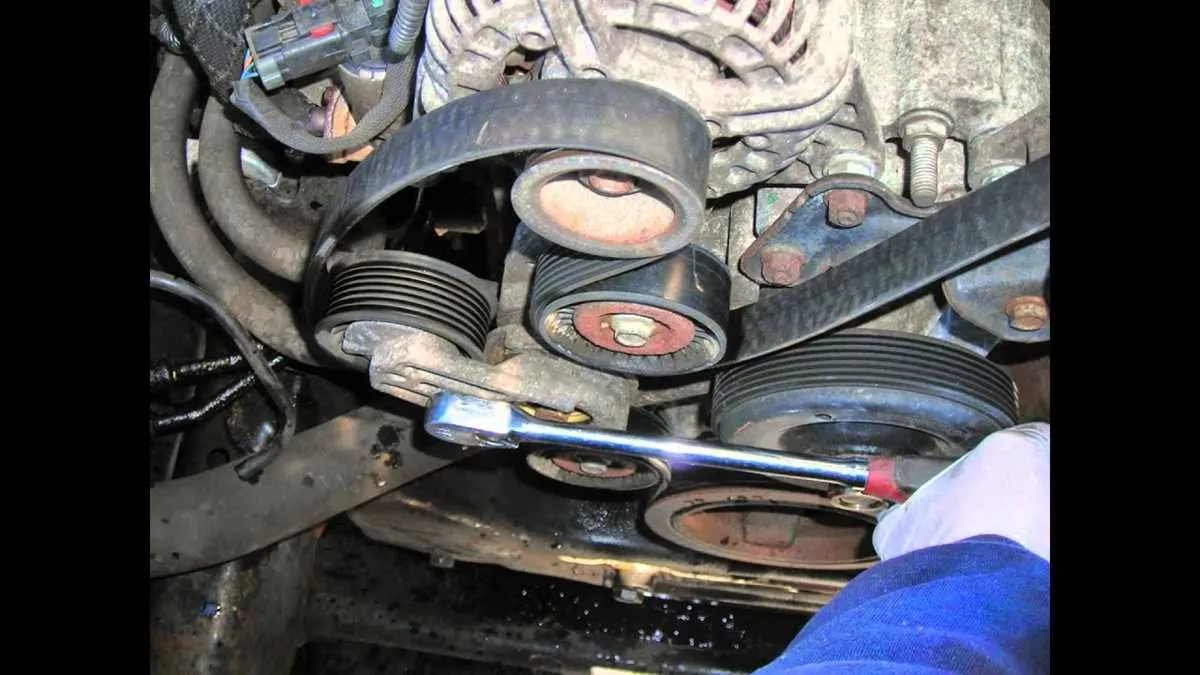

2. Release tension on the belt: Use a serpentine belt tool or a long-handled wrench to rotate the tensioner pulley counterclockwise. This will relieve the tension on the belt. Once loose, slide the belt off the pulleys. Keep the tool in place until the belt is free.
3. Remove the old belt: Carefully remove the old belt from all pulleys. Make note of the belt’s path so you can install the new one correctly. You can also take a picture of the routing for reference.
4. Install the new belt: Position the new serpentine belt around the pulleys according to the diagram. Make sure the belt sits snugly in each groove and follows the exact path of the old one. Double-check the alignment before moving on.
5. Reapply tension: Rotate the tensioner pulley again to provide tension for the new belt. Once the belt is tight, release the tensioner and ensure the belt is seated properly on all pulleys.
6. Check your work: Turn the engine over briefly while checking the belt’s alignment. Ensure there’s no slack and the belt runs smoothly around all pulleys. Listen for any unusual sounds that may indicate improper installation.
7. Finish up: Close the hood and start the engine. Verify that everything is running smoothly and that there are no squealing or slipping noises coming from the new serpentine belt.
Replacing the serpentine belt is a straightforward job that can be done in under an hour. Make sure to follow the steps carefully, and your 2009 Dodge Ram 1500 will be good to go with a fresh belt in no time.
Troubleshooting Common Belt Issues in 2009 Dodge Ram 1500
If your 2009 Dodge Ram 1500 is experiencing belt issues, here’s how to identify and fix common problems efficiently.
Start by checking the serpentine belt for visible wear. Cracks, fraying, or missing pieces mean it’s time for a replacement. If the belt is loose, inspect the tensioner and pulleys. A worn-out tensioner can cause the belt to slip or fail. Listen for squeaking sounds, which often indicate a loose or damaged belt.
To inspect the belt’s alignment, check if it runs smoothly along the pulleys. A misaligned belt can result from a misaligned pulley or faulty belt routing. If the belt comes off, it’s usually due to a misalignment or pulley malfunction. Be sure to examine the pulley bearings for signs of wear or damage.
If your air conditioning or power steering isn’t working, check the belt that drives these components. The belt may be slipping or damaged. Tension on these belts needs to be checked, as they can stretch or lose tension over time. A belt that’s too tight can wear out the components it drives, while a belt that’s too loose can slip.
Here’s a quick troubleshooting guide:
- Check for cracks or fraying on the belt.
- Inspect the tensioner for proper spring action.
- Listen for squealing or grinding sounds.
- Verify the belt’s alignment with the pulleys.
- Inspect pulleys for wear and tear or misalignment.
- Check for oil or coolant leaks near the belt area, as these can damage the belt.
If the issue persists after addressing these points, consider replacing the belt and inspecting related components, such as the alternator, power steering pump, and air conditioning compressor.
