If you’re replacing the drive belt on your Troy-Bilt Mustang 42, a proper diagram is key to ensuring the right fit and alignment. The drive belt plays a critical role in transferring power from the engine to the wheels, and improper installation can lead to premature wear or mechanical failure.
To start, locate the drive belt on the underside of the mower deck. It’s essential to know the path the belt follows around pulleys and idlers. A clear diagram will show you the exact routing sequence. Follow the diagram carefully, paying close attention to pulley alignment, as misrouting can cause slipping or excessive strain on the components.
Make sure the new belt matches the original specifications for length, width, and style. Most diagrams will include part numbers to help you choose the correct replacement. Once installed, test the belt tension by rotating the pulleys by hand to ensure there is no excessive slack.
By following a detailed drive belt diagram, you can ensure your Troy-Bilt Mustang 42 runs smoothly and efficiently. A little care in reassembly will prevent future maintenance issues and keep your mower in top working condition.

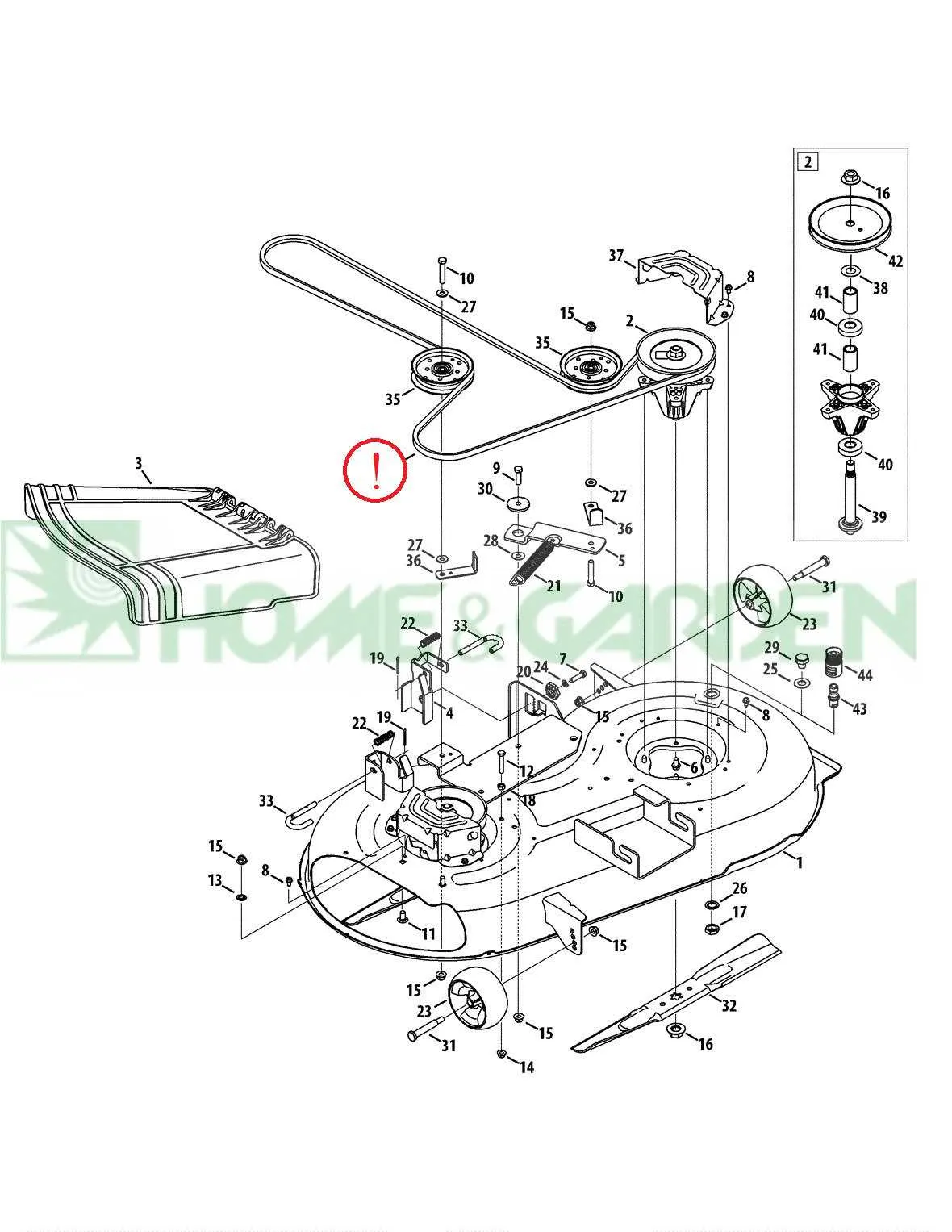

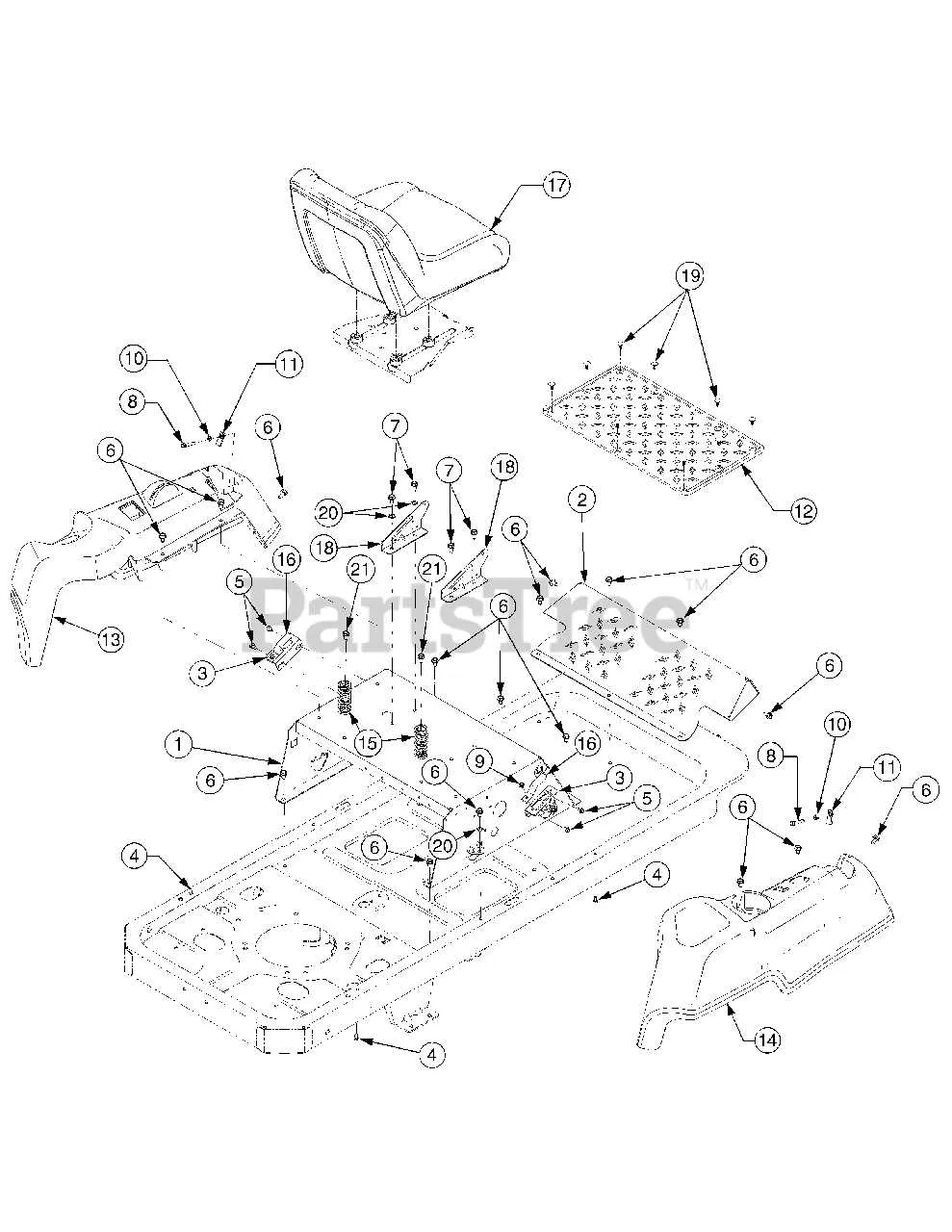

Troy Bilt Mustang 42 Drive Belt Diagram
To replace or inspect the drive belt on your Troy Bilt Mustang 42, follow these steps based on the provided diagram.
- Step 1: Disconnect the battery before starting any work to ensure safety.
- Step 2: Lift the mower deck for easy access to the drive belt system. Use the lift lever to raise the deck to its highest position.
- Step 3: Locate the drive belt. It runs from the engine’s pulley to the transmission. Pay attention to how the belt is routed along the various pulleys.
- Step 4: Remove the belt from the pulleys. You’ll need to release any tension by loosening the tension spring or pulley, depending on the model.
- Step 5: Before installing the new belt, compare it with the old one to ensure proper size and fit.
- Step 6: Install the new drive belt following the exact routing as shown in the diagram. Double-check that the belt sits properly on each pulley.
- Step 7: Reattach any components you removed during the process. Lower the mower deck and reconnect the battery.
- Step 8: Test the mower to ensure the drive system works correctly and the belt is properly engaged.
Regular maintenance and timely replacement of the drive belt will extend the life of your Troy Bilt Mustang 42 and keep it running smoothly.
How to Identify the Correct Drive Belt for Troy Bilt Mustang 42
Check the model number of your Troy Bilt Mustang 42 first. You will find this on a label located near the engine or on the frame. The correct drive belt for your mower depends on this specific model number.
Refer to the owner’s manual for the exact specifications of the drive belt. If you don’t have the manual, it’s available online through the Troy Bilt website or can be obtained by contacting their customer service.
Measure the existing drive belt’s length and width to match the new one. If the original belt is worn or damaged, it’s important to match these dimensions accurately to avoid issues with performance.
Check the part number on the original belt. Most Troy Bilt Mustang 42 models use a specific part number, such as 754-04060, but this can vary based on the year of manufacture. This number will help you find a replacement that fits correctly.
If you’re unsure, visit a local parts dealer with the model number and belt dimensions. They can help you identify the proper belt for your mower.
Always replace the belt with a high-quality replacement to maintain optimal performance. Low-quality belts may wear out faster, leading to unnecessary repairs.
Step-by-Step Guide to Installing the Drive Belt on a Troy Bilt Mustang 42
Before you begin, make sure the mower is turned off and the key is removed. This prevents any accidental starts during the process.
1. Lift the Mower Deck – Use a jack or raise the deck to give you enough room to work underneath. This will provide better access to the drive belt and other components.
2. Remove the Old Belt – Loosen the tension on the old belt by releasing the tensioner pulley. Carefully slide the belt off the pulleys, taking note of how it’s routed for later reference.
3. Inspect the Pulleys – Before installing the new belt, check each pulley for wear or damage. Replace any damaged pulleys to ensure the longevity of the new belt.

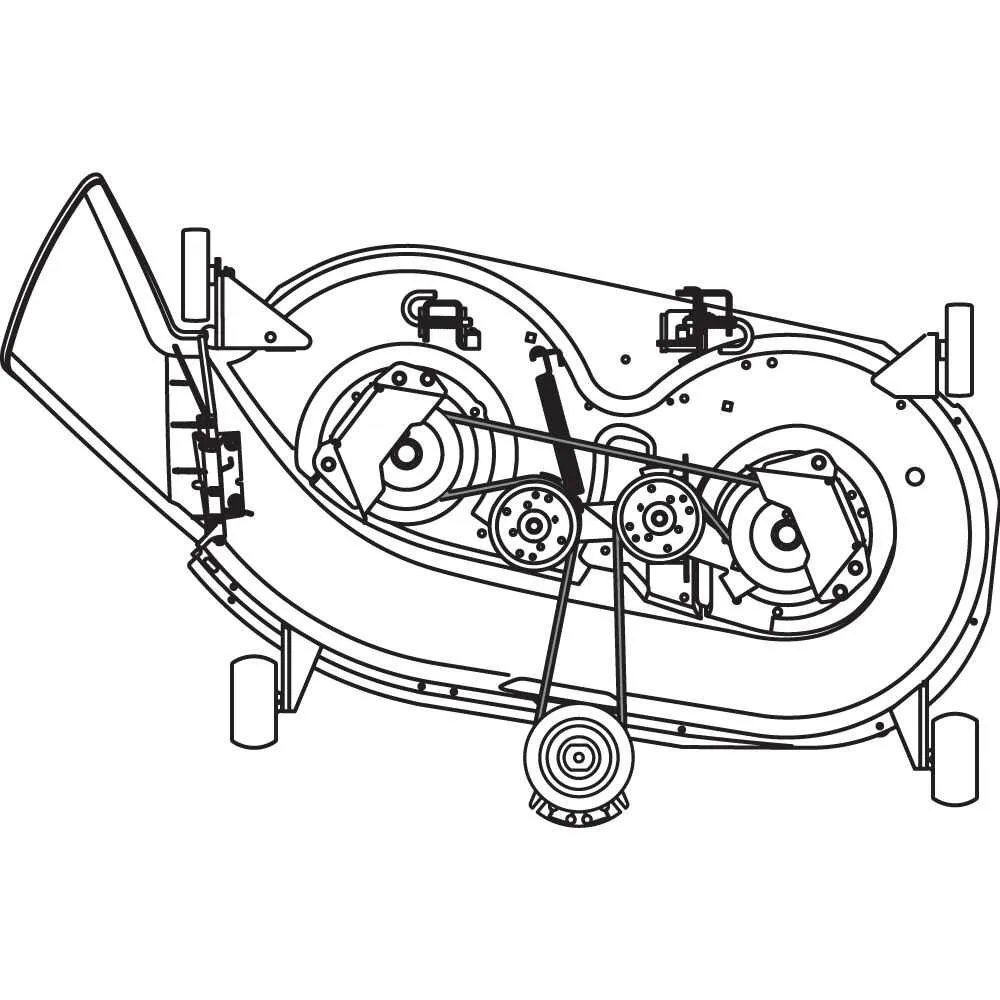

4. Route the New Belt – Using the diagram for the Troy Bilt Mustang 42, carefully route the new belt around the pulleys, making sure it matches the previous routing exactly. Ensure the belt is properly aligned with each pulley groove.
5. Install the Tensioner Pulley – With the belt in place, pull the tensioner pulley into position to add tension to the new belt. Make sure the pulley moves freely without obstruction.
6. Test the Belt – Rotate the pulleys by hand to ensure the belt is seated correctly and moves smoothly. Check for any misalignment or binding.
7. Lower the Deck – Once everything is in place, lower the mower deck and secure any components you may have removed. Double-check that the belt is properly tensioned.
8. Start the Mower – Turn on the mower and test the drive system to ensure everything is functioning as expected. Listen for any unusual noises or issues.
Common Issues with the Drive Belt on the Troy Bilt Mustang 42 and How to Fix Them
If the drive belt on your Troy Bilt Mustang 42 starts slipping or wears out prematurely, it can affect the mower’s performance. A common issue is the belt slipping off, which often occurs due to misalignment or wear on the pulleys. To fix this, inspect the pulleys for any signs of damage or debris that could cause friction. Clean them carefully, and ensure the belt is seated properly on the pulleys.
Another problem to watch for is a cracked or frayed belt. This can cause the mower to lose power or stop working altogether. To address this, replace the belt with a new one that matches the manufacturer’s specifications. You can find a replacement belt by checking the model number of your mower and purchasing the correct size.
Sometimes, the drive belt becomes too loose, which can lead to reduced performance. If the belt seems too slack, check the tension. The tension spring may have worn out or become loose. Tighten or replace the spring as needed to restore proper tension, ensuring the belt has the right amount of tightness to function correctly.
Excessive noise or vibration during operation is another indicator of belt-related issues. If you notice this, inspect the belt for signs of wear or misalignment. Replacing the belt or adjusting its alignment may resolve the problem and restore smooth operation.
