If you’re working on the serpentine belt for your 2015 Ford 6.7 engine, start by referencing the correct belt diagram. The diagram shows you the exact routing of the belt across the various pulleys, including the alternator, air conditioning, and power steering pump. Knowing the right configuration prevents mistakes and saves time when replacing or adjusting the belt.
Pay attention to the position of the tensioner pulley and the idler pulley. These play a key role in maintaining the right amount of tension on the belt. If the belt isn’t tight enough, it could slip or wear prematurely. Incorrect tension could also cause damage to other engine components, so take extra care when adjusting.
The belt should run smoothly along all the pulleys. If it shows any signs of wear or misalignment, replace it immediately to avoid further issues. Regularly inspect the belt for cracks or fraying, and ensure the diagram is followed closely for proper alignment. Keep this guide handy to ensure your 2015 Ford 6.7 engine continues to run without a hitch.

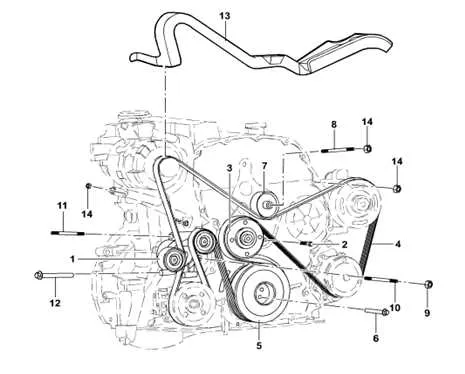

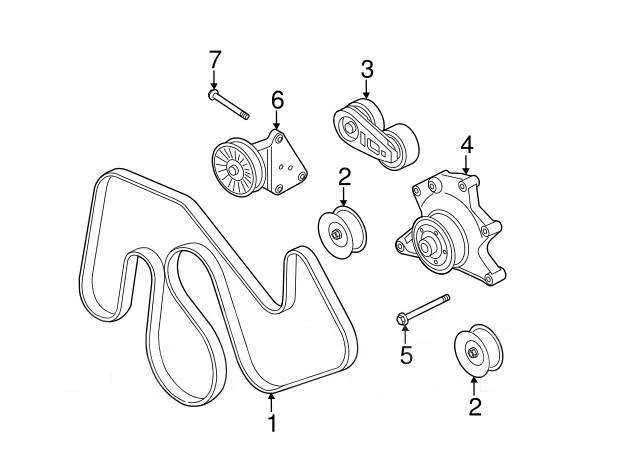

2015 Ford 6.7 Belt Diagram
To replace or inspect the serpentine belt on a 2015 Ford 6.7L Powerstroke, make sure the belt routing follows the diagram precisely to prevent misalignment and potential damage to the engine components. The belt should be routed around the main pulleys: the crankshaft, alternator, water pump, power steering pump, and the AC compressor. It’s crucial to follow the tensioner pulley’s position to ensure the belt remains tight but not overstretched.
The diagram shows that the serpentine belt passes over the crankshaft pulley first, moving towards the tensioner, then to the alternator. After that, it goes to the water pump, followed by the power steering pump, and then loops around the AC compressor before returning to the crankshaft. Pay close attention to the direction of the belt grooves and any alignment markers on the pulleys to avoid improper installation.
When inspecting the belt, look for signs of wear such as fraying, cracking, or glazing on the underside. If the belt appears damaged or stretched, replace it with a new one. Always use a belt that meets OEM specifications to maintain the system’s efficiency. A worn belt can lead to problems such as engine overheating or failure of accessories like the power steering and AC system.
Check the tensioner regularly for proper function. If it appears to be weak or doesn’t hold tension, it may need to be replaced. A faulty tensioner can cause slippage, which will lead to improper belt performance.
Understanding the Belt Routing for 2015 Ford 6.7 Diesel Engines
The correct belt routing on your 2015 Ford 6.7 Diesel engine is critical to ensure all accessories function properly and efficiently. The serpentine belt system powers key components like the alternator, water pump, power steering pump, and air conditioning compressor. Any deviation in the routing can cause malfunctions or belt damage, leading to costly repairs.
Follow the diagram carefully to route the serpentine belt over the tensioner, crankshaft pulley, and all accessory pulleys in the correct sequence. Make sure the belt is properly tensioned, as too much slack can lead to slipping or even snapping under load. If the belt is too tight, it may strain the components, especially the alternator and power steering pump.
Inspect the belt regularly for signs of wear, cracks, or fraying. A quick visual check can help prevent unexpected breakdowns, which often occur when the belt is close to failing. If you replace the serpentine belt, use only the manufacturer-recommended part to maintain the system’s performance.
Use a ratchet or belt removal tool to relieve tension on the belt, making it easier to replace. Always double-check the routing diagram before installation to avoid mistakes, as improper installation can lead to overheating or damage to other engine components.
Common Issues with Belt Misalignment and How to Resolve Them
Belt misalignment often results from worn-out or damaged pulleys, improperly tensioned belts, or misadjusted components. A misaligned belt can lead to excessive wear, poor performance, and even belt failure. Identifying the root cause early can prevent further damage.
Check pulley alignment using a laser alignment tool. If pulleys appear crooked, replace them or adjust their positions. Worn or damaged pulleys should be replaced to ensure smooth belt operation.
Incorrect belt tension is another common cause. Too much tension can cause excessive strain on the belt and pulleys, while too little tension leads to slippage. Use a belt tension gauge to measure and adjust tension according to the manufacturer’s specifications.
Inspect the condition of the belt itself. Look for cracks, fraying, or glazing, which are signs of improper alignment or wear. Replace the belt if any damage is detected.
Misalignment can also occur if the tensioner is faulty. Check the tensioner for any signs of wear or malfunction. A damaged tensioner should be replaced to restore proper belt alignment.
Finally, ensure all components are properly tightened. Loose bolts or fasteners can lead to misalignment, causing belt slippage or wear. Tighten all relevant components and check alignment after adjustments.
Step-by-Step Guide for Replacing the Serpentine Belt on a 2015 Ford 6.7
Before starting, gather the necessary tools: a ratchet wrench, socket set, serpentine belt tool, and a replacement serpentine belt. Make sure the engine is turned off and cool before working.
- Locate the Serpentine Belt Tensioner: The tensioner is positioned on the front of the engine, typically near the alternator. Use a serpentine belt tool or a socket wrench to relieve tension from the belt.
- Release Tension: Insert the wrench or tool into the square slot on the tensioner. Turn it counterclockwise to relieve pressure. Carefully remove the belt from the pulleys.
- Inspect the Pulleys: Check the condition of the pulleys and tensioner while the belt is removed. Make sure they rotate smoothly without any unusual noise or resistance.
- Remove the Old Belt: Once the tension is released, take the old serpentine belt off. Pay attention to how it was routed around the pulleys, as this will be crucial when installing the new belt.
- Route the New Belt: Place the new belt around the pulleys, following the exact same path as the old one. Double-check the diagram on the engine or the owner’s manual for correct routing.
- Reapply Tension: Using the serpentine belt tool, turn the tensioner clockwise to apply tension to the new belt. Ensure the belt is securely in place on all pulleys.
- Check Belt Alignment: Visually inspect the belt to make sure it’s properly aligned on all pulleys. If it’s off-center, adjust the tensioner until the belt is correctly positioned.
- Test the Engine: Start the engine and observe the belt while the engine is running. Listen for any unusual sounds and check that the belt operates smoothly without slipping.
- Final Inspection: After testing, turn off the engine. Re-check all pulleys, the tensioner, and belt to ensure everything is functioning correctly.
By following these steps, you can easily replace the serpentine belt on your 2015 Ford 6.7, ensuring your engine components are running smoothly.
