The 2017 Honda Civic uses a specific belt system that ensures proper engine functionality. Identifying the correct belt routing is key to maintaining optimal performance and preventing premature wear. Refer to the vehicle’s manual for detailed specifications, and always replace belts at recommended intervals to avoid costly repairs.
The main drive belt in the 2017 Civic is the serpentine belt, which powers various components, including the alternator, power steering pump, and air conditioning compressor. Ensure the belt is routed correctly, following the diagram provided by Honda, to avoid slipping or stretching, which can lead to engine failure.
For troubleshooting, inspect the belt for signs of wear, such as cracks, fraying, or glazing. If any issues are detected, replace the belt immediately to prevent it from breaking during operation. Additionally, check the tensioner and idler pulleys, as faulty components can lead to incorrect belt tension and cause premature damage.
2017 Honda Civic Belt Diagram
The 2017 Honda Civic features a serpentine belt system that drives several key components in the engine. The main belt routes power from the crankshaft pulley to the alternator, power steering pump, and air conditioning compressor. Ensure that the belt is installed correctly to avoid improper tension or misalignment.
To replace the serpentine belt, locate the tensioner pulley, which allows you to relieve tension. Use a socket wrench to rotate the tensioner and remove the old belt. Ensure the new belt follows the same routing path shown in the diagram. A misrouted belt can cause component damage or belt failure.
Check the belt for wear signs, such as cracks, fraying, or glazing. If any issues are found, replace the belt to prevent sudden failure. It’s also recommended to inspect the pulleys for wear or damage while replacing the belt. Proper belt maintenance will keep the engine running smoothly and prevent unnecessary repairs.

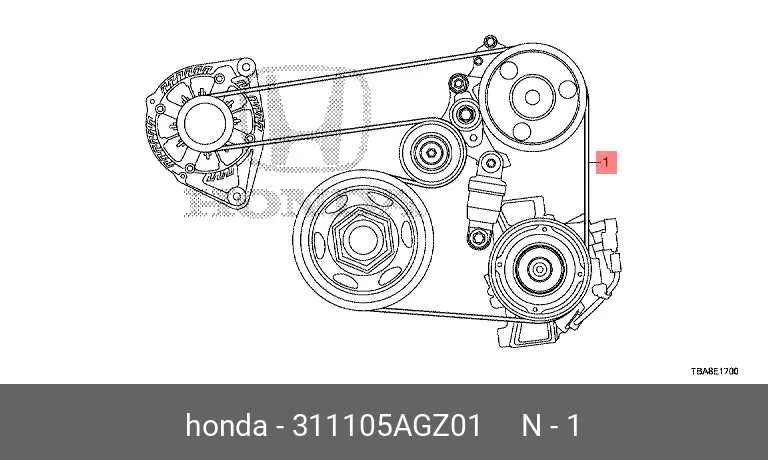

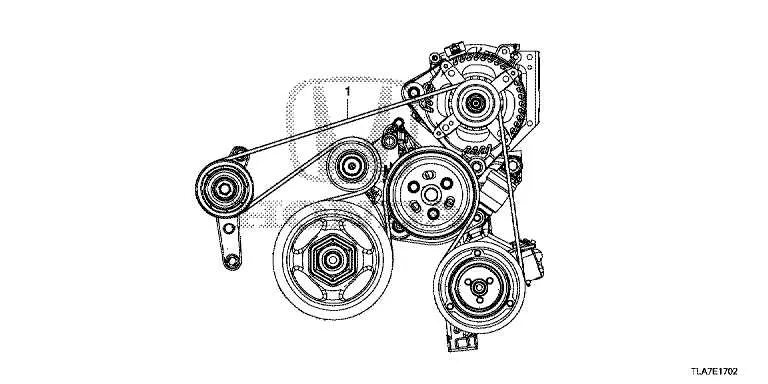

The diagram for the 2017 Honda Civic serpentine belt provides a clear view of each component’s position. Familiarize yourself with this diagram to ensure that you’re following the correct belt path and can troubleshoot effectively when needed.
Understanding the Layout of the 2017 Honda Civic Belt System
The 2017 Honda Civic belt system includes multiple components, each serving a specific function. The serpentine belt drives the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to identify the routing of this belt for maintenance or replacement.
Start by inspecting the tensioner, which keeps the serpentine belt taut. If it becomes worn or loses tension, it may lead to belt slippage or damage. Ensure the tensioner is properly aligned and adjusted according to the factory specifications.
Next, the timing belt controls the engine’s camshaft and crankshaft synchronization. This belt needs careful inspection, as a failure can cause serious engine damage. Follow the recommended replacement intervals outlined in the owner’s manual to avoid premature wear.
Check the alignment of pulleys regularly. Misalignment can cause uneven wear on the belt, leading to premature failure. Also, verify that all pulleys are in good condition, free of cracks or excess wear.
For optimal performance, ensure that the belts are free of debris and oil, which can degrade the rubber and cause it to crack or fray. Regularly clean the belt area to maintain efficiency and prevent potential issues.
How to Replace the Serpentine Belt in a 2017 Honda Civic
To replace the serpentine belt in your 2017 Honda Civic, follow these steps:
- Gather necessary tools and parts: You will need a new serpentine belt, a socket set, a belt tensioner tool, and a 3/8″ ratchet wrench.
- Locate the serpentine belt: Open the hood and locate the serpentine belt at the front of the engine. It’s routed around several pulleys, including the alternator, power steering pump, and air conditioning compressor.
- Release tension from the belt: Use a belt tensioner tool to rotate the tensioner pulley and relieve tension on the serpentine belt. Once the tension is released, slide the belt off the pulleys.
- Remove the old belt: Carefully remove the belt from the engine, ensuring not to damage any surrounding components.
- Install the new serpentine belt: Refer to the belt routing diagram on the engine bay or in the owner’s manual. Install the new belt, ensuring it follows the correct path around all the pulleys.
- Apply tension: Use the belt tensioner tool again to apply tension to the new belt. Ensure the belt is securely in place and properly tensioned.
- Double-check the installation: Verify that the belt is routed correctly and there is no slack or misalignment.
- Test the belt: Start the engine and observe the belt’s operation. Listen for any unusual noises and check that the belt runs smoothly over all pulleys.
If the new serpentine belt is installed correctly, the engine should run without issues, and the accessories driven by the belt will operate smoothly.
Troubleshooting Common Issues with the 2017 Honda Civic Belt System
If your 2017 Honda Civic’s serpentine belt is making noise, the first step is to check for wear or damage. Look for cracks, fraying, or glazing on the belt. A worn belt should be replaced immediately to avoid further damage to other components.
If the belt is not the issue, check the pulleys for misalignment. Misalignment can cause excessive wear or belt slipping. Inspect each pulley carefully for any signs of wear or obstruction that might cause improper function.
An often overlooked cause of problems is the tensioner. Over time, the tensioner spring can weaken, resulting in insufficient tension on the belt. If the belt is loose, the tensioner may need to be replaced.
Noises such as squealing or chirping can also indicate a problem with the pulleys, tensioner, or the belt itself. If the noise persists after replacing the belt, further inspection of the pulleys or the serpentine system is necessary.
Another common issue is overheating of the engine, which may result from a faulty belt-driven water pump. Ensure that the water pump and related components are functioning properly, as a failure here can cause the engine to overheat.
Lastly, if the alternator or air conditioning stops working, it may be due to a belt issue. In this case, inspect the serpentine belt for damage or slippage, and replace it as needed. Ensure the belt is properly routed through the system, as incorrect installation can also lead to performance issues.
