Locate the serpentine belt routing diagram for your specific Honda Odyssey model and year. This ensures correct installation and prevents misalignment that can damage the alternator, power steering pump, or air conditioning compressor.
Check belt tension and condition before installation. A worn or frayed belt reduces engine efficiency and increases the risk of slipping. Use a tension gauge or follow the manual’s recommended deflection measurements for precise adjustment.
Follow step-by-step alignment using the diagram to loop the belt around each pulley in the correct sequence. Confirm that all pulleys spin freely and that the belt sits in the grooves without twisting or overlapping.
Maintain periodic inspections by referencing the diagram during routine oil changes or scheduled maintenance. Replacing the belt at recommended mileage intervals prevents unexpected breakdowns and extends the lifespan of engine components.

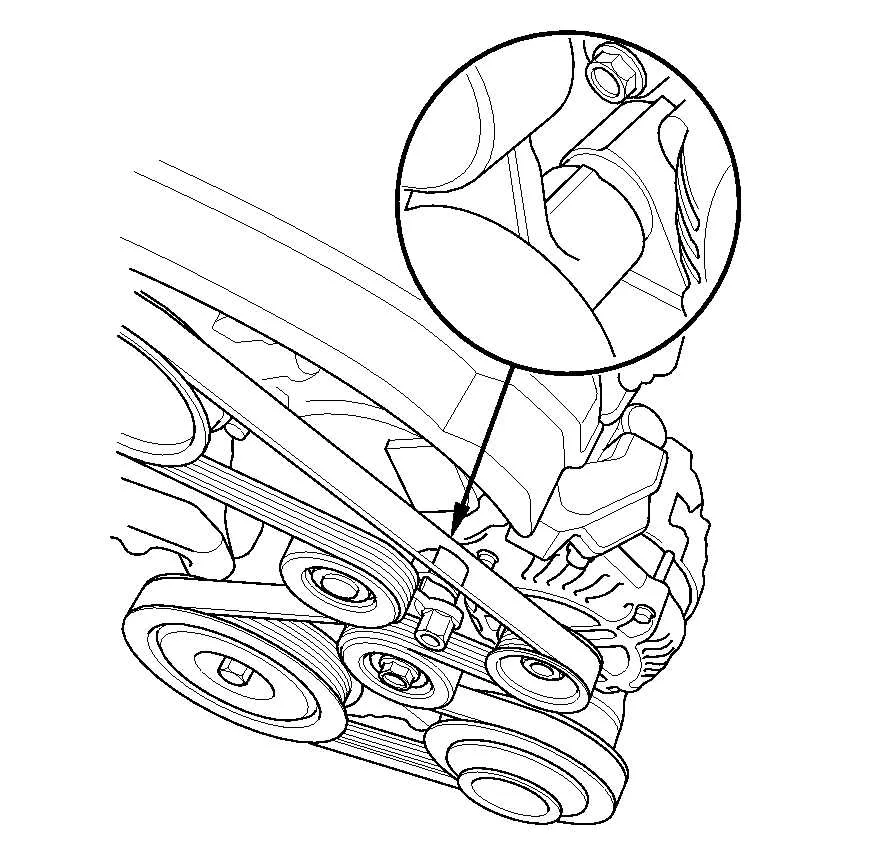

Honda Odyssey Belt Diagram Guide for Accurate Routing and Maintenance
Refer to the manufacturer-specific belt diagram to ensure correct routing of the serpentine and timing belts on your Honda Odyssey. Accurate alignment prevents premature wear, slipping, and engine damage.
Identify each belt by its function before removal. The serpentine belt drives the alternator, power steering pump, and air conditioning compressor, while the timing belt synchronizes the camshaft and crankshaft movements.
- Locate the tensioner pulley and release tension using a wrench or tensioner tool.
- Follow the diagram to route the belt around each pulley, maintaining the correct path over idlers and accessory pulleys.
- Check pulley grooves and belt surfaces for wear, cracks, or glazing before installation.
- Ensure the timing marks on the crankshaft and camshaft pulleys align precisely to maintain engine timing.
After routing, apply tension according to the manufacturer’s specifications. Rotate the engine manually two full revolutions to verify smooth movement and correct belt tracking.
Regularly inspect belts for fraying, cracking, or looseness. Replace the timing belt at the recommended interval, usually every 60,000 to 100,000 miles, and the serpentine belt as needed based on wear patterns.
Use high-quality replacement belts from reputable suppliers. Lubricate tensioner bearings if specified, but avoid adding oil or grease to belt surfaces. Maintain clean pulleys to prevent belt slippage and ensure long-term reliability.
Identify All Belts and Their Functions in Honda Odyssey
Locate the serpentine belt at the front of the engine; it drives the alternator, power steering pump, air conditioning compressor, and water pump. Inspect it for cracks, fraying, or glazing to prevent sudden failure.
The timing belt, positioned behind the engine cover, synchronizes the crankshaft and camshaft rotation. Replace it every 105,000 miles or 7 years, whichever comes first, to avoid engine damage.
Smaller accessory belts, like the A/C or fan belts, power individual components. Check their tension using the deflection method: press on the belt with moderate force, ensuring it deflects roughly half an inch for standard widths.
Identify belt routing using the diagram printed on the engine cover or the owner’s manual. Correct routing maintains engine performance and prevents slippage or premature wear.
Inspect belt pulleys for alignment and smooth rotation. Misaligned pulleys increase wear and may cause noise or belt damage. Replace worn tensioners promptly to maintain proper belt tension.
Step-by-Step Routing Diagram for Engine and Accessory Belts
Begin by positioning the serpentine belt around the crankshaft pulley at the bottom center of the engine. Ensure the belt teeth align with the pulley grooves to prevent slippage.
Next, route the belt upward to the alternator on the passenger side. Wrap the belt completely around the alternator pulley, keeping tension minimal but firm.
Guide the belt from the alternator to the water pump pulley located above the crankshaft. Maintain proper alignment to avoid rubbing against engine components.
From the water pump, lead the belt to the power steering pump on the driver’s side. Make sure the belt sits flush in the pulley grooves for consistent operation.
Continue routing the belt to the air conditioning compressor, ensuring it fully engages the pulley and follows the diagram’s path without crossing over other components.
Pass the belt around the tensioner pulley, applying slight pressure to allow the automatic tensioner to adjust and maintain correct tension throughout the system.
Finally, complete the loop by returning the belt to the crankshaft pulley. Double-check that the belt follows the diagram exactly, with all pulleys aligned and no twists or slack sections.
After installation, rotate the engine manually two full revolutions to verify smooth movement and proper engagement of all accessory pulleys before starting the vehicle.
Inspecting, Replacing, and Adjusting Honda Odyssey Belts
Check the serpentine and timing belts for cracks, fraying, or glazing every 30,000 miles. Use a flashlight to inspect the belt surface and edges, looking for missing chunks or excessive wear.
Replace the serpentine belt if you see deep cracks, shiny spots, or if it squeals under load. For the timing belt, follow the manufacturer’s recommended interval, usually around 105,000 miles for most Honda Odyssey models. Use a tensioner tool to release tension before removing the old belt.
Align the new serpentine belt according to the routing diagram on the engine cover. Ensure the belt sits correctly in all pulley grooves to prevent slipping. Rotate the crankshaft manually to confirm smooth movement and proper alignment.
Adjust the tensioner for optimal belt tension. The serpentine belt should deflect approximately half an inch when pressed at mid-span. For timing belts, verify tension with a gauge or follow the service manual procedure to avoid engine timing issues.
After installation, run the engine for a few minutes and listen for unusual noises. Recheck belt tension and alignment, tightening or adjusting the tensioner if necessary. Inspect belts periodically during routine maintenance to maintain performance and prevent failure.
