If you’re working on your 2006 Kia Sedona and need to replace the serpentine belt, referring to the correct diagram is key to making the process smoother. The serpentine belt in this model powers essential engine components, including the alternator, air conditioning compressor, and power steering pump. A clear understanding of the diagram ensures that you install the belt in the right position and avoid unnecessary errors.
The serpentine belt routing for the 2006 Kia Sedona is straightforward, but you should always double-check before proceeding with the installation. Make sure to align the belt according to the pulleys shown in the diagram, ensuring the right tension. If the belt is loose or misaligned, it can lead to poor performance or even engine damage.
For a smooth and efficient repair, consult a high-quality serpentine belt diagram for the 2006 Kia Sedona, and ensure the replacement belt matches the manufacturer’s specifications. Doing this will help keep your vehicle running smoothly and avoid further issues down the road.
2006 Kia Sedona Serpentine Belt Diagram
For a smooth operation of your 2006 Kia Sedona, it’s crucial to have the serpentine belt properly aligned and tensioned. The serpentine belt powers several components such as the alternator, power steering pump, and air conditioning compressor. If you’re unsure about the routing, use this diagram to ensure the correct setup.
Before you begin, make sure the engine is off and cool. If the serpentine belt is worn or damaged, replace it promptly to avoid further engine issues.
- The serpentine belt should be routed around the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and tensioner.
- The tensioner will maintain the appropriate tension, so check if it’s functioning correctly. A weak tensioner can lead to slippage and premature wear.
- Ensure the belt runs smoothly across all pulleys, with no twists or misalignments.
- If replacing the belt, always match the new belt’s length and width with the original. Incorrect dimensions could cause misalignment.

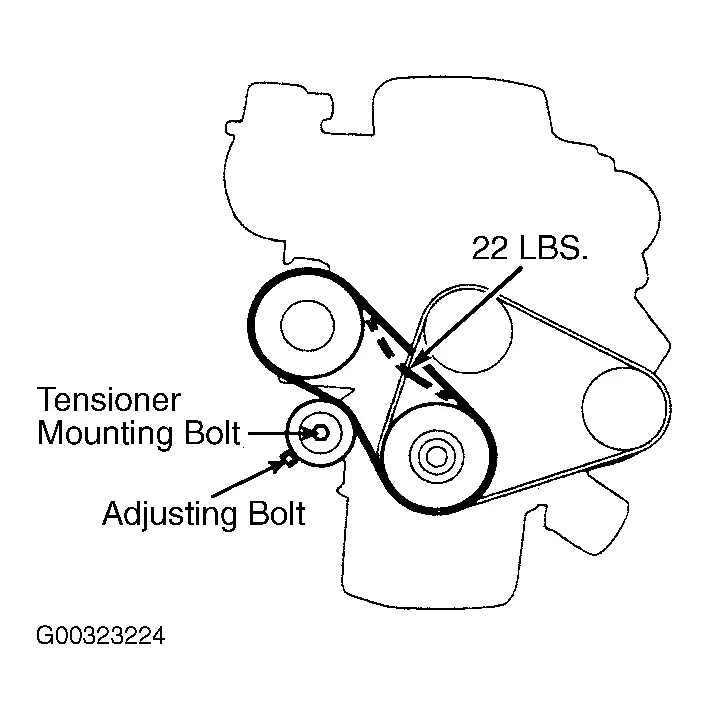

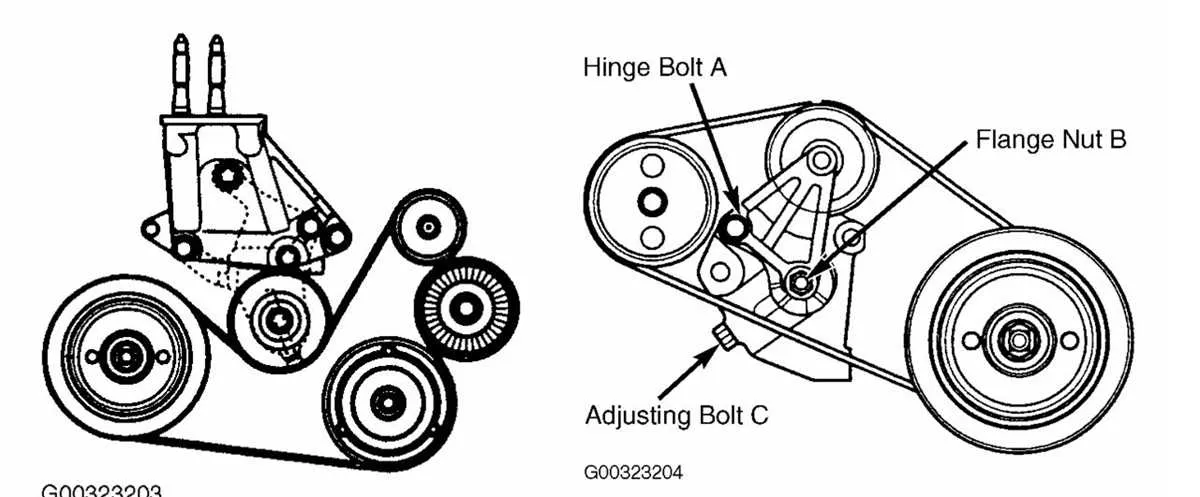

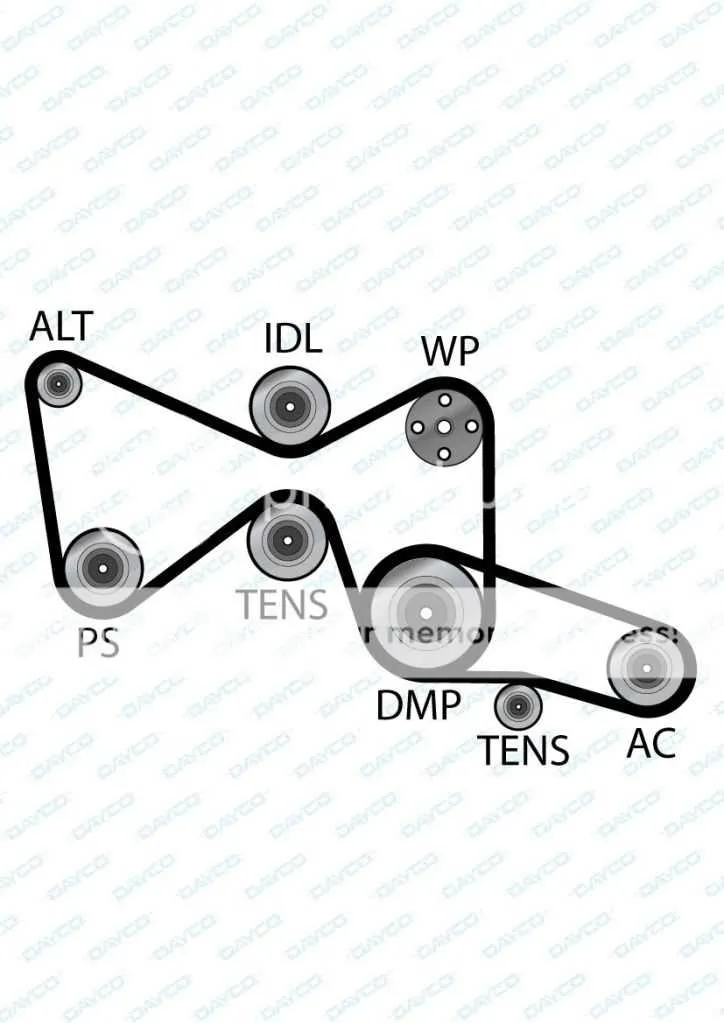

For a visual guide, refer to the diagram below. It clearly illustrates the precise path of the serpentine belt around the pulleys. This will help avoid any confusion during installation or replacement.
- Check for any cracks or fraying in the belt regularly.
- If you notice squealing or poor performance, inspect the serpentine belt immediately to ensure it is in top condition.
How to Identify the Serpentine Belt Routing on a 2006 Kia Sedona
Start by locating the belt routing diagram on the engine bay. It’s typically printed on a sticker or metal plate near the front of the engine. If the diagram is missing or unreadable, you can refer to the service manual for the correct routing. Look for the tensioner pulley, which is key in adjusting the belt’s tightness. It will be positioned along the belt’s path and is usually the only pulley with an adjustment mechanism.
Next, check the pulleys that the serpentine belt runs over. The 2006 Kia Sedona features a variety of pulleys, including the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. Make sure the belt loops over each one in the correct order as shown in the diagram. The crankshaft pulley is typically at the bottom, and the tensioner pulley should be easily accessible for adjustments.
If you’re replacing the serpentine belt, ensure the new one matches the correct length and width. Compare the new belt with the old one to make sure it fits the same routing. After installing the new belt, manually rotate the tensioner pulley to ensure the belt is taut and aligned correctly.
Finally, double-check the belt’s position by rotating the engine manually using a wrench on the crankshaft pulley. This will confirm that the belt is properly installed and aligned. If the belt slips or makes noise, it may need further adjustment or realignment.
Common Issues with the Serpentine Belt in 2006 Kia Sedona and How to Fix Them
If your 2006 Kia Sedona’s serpentine belt is showing signs of wear, addressing the issue promptly can save you from costly repairs. The most common problems include cracks, squealing noises, and loss of tension. Here’s how to identify and fix these issues.
Cracked Serpentine Belt
Cracks or visible damage on the belt are a clear sign it needs replacing. If you notice any damage, it’s best to replace the belt immediately. A cracked belt can snap at any moment, leaving you stranded and potentially damaging engine components.
Squealing or Whining Noises
If you hear squealing noises when starting the engine or while driving, this often points to a loose or worn-out serpentine belt. The noise typically happens when the belt slips on the pulleys. Tightening the tensioner or replacing the belt should solve the problem.
Belt Slipping or Wearing Out Prematurely
If the belt appears worn out prematurely or starts slipping, inspect the belt tensioner. A faulty tensioner may not be applying the correct amount of pressure, causing the belt to lose grip. Replace the tensioner and the belt if necessary.
Loss of Power Steering or Alternator Function
When the serpentine belt malfunctions, the alternator or power steering may stop functioning. A slipping or broken belt will disrupt the rotation of these vital components. If you notice power steering failure or a dimming dashboard light, inspect the belt for damage or looseness.
How to Fix: Start by checking the belt for cracks or significant wear. Tighten the tensioner to restore the proper belt tension. If the belt shows any significant damage, replace it with a new one. For a smooth repair, ensure the replacement belt matches the exact specifications for your Sedona model.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Kia Sedona
First, disconnect the negative terminal of the battery to avoid any electrical issues during the repair.
Locate the serpentine belt tensioner. It is typically positioned on the passenger side of the engine. Use a 3/8-inch ratchet or belt tool to rotate the tensioner clockwise. This will relieve the tension on the belt.
Remove the old serpentine belt from the pulleys. Pay close attention to the routing of the belt. It helps to take a picture or consult a diagram for reference before removal.
Before installing the new belt, inspect all pulleys and the tensioner for damage or wear. If any part seems worn or damaged, replace it before continuing.
Install the new serpentine belt, following the routing diagram. Ensure the belt fits properly over each pulley. Make sure it’s snug and properly aligned.
Once the belt is in place, use the tensioner tool to apply tension to the new belt. Double-check the belt’s alignment and ensure it’s securely in place on all pulleys.
Reconnect the battery and start the engine. Listen for any unusual sounds and check the belt’s operation. If the belt is functioning properly, the replacement is complete.
