Check the belt routing carefully before attempting removal or replacement on a 2013 Nissan Altima. The serpentine belt powers the alternator, water pump, and air conditioning compressor, so accurate alignment prevents engine strain and accessory failure.
Use the factory belt diagram located under the hood or in the owner’s manual as a reference. Identify each pulley: crankshaft, alternator, tensioner, and idler pulleys, and verify their positions against the diagram before loosening the tensioner.
Release the belt tension using a wrench on the tensioner pulley while keeping the belt path in mind. Install the new belt by following the diagram precisely, ensuring all grooves align with the corresponding pulley surfaces to avoid slipping or premature wear.
After installation, rotate the engine manually to confirm the belt tracks correctly. Check tension and pulley movement, and listen for unusual noises during the first startup, adjusting the tensioner if needed to maintain optimal performance.

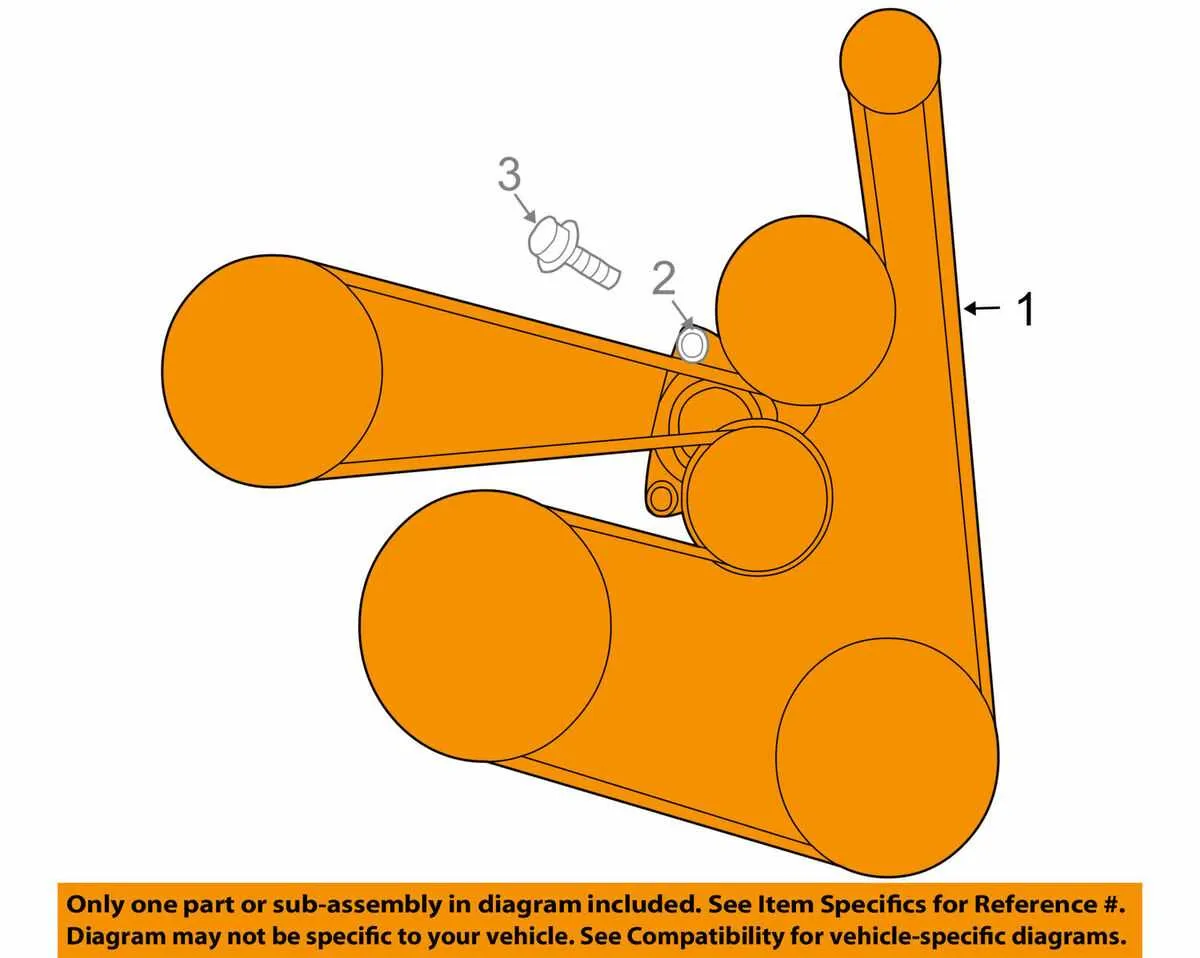

2013 Nissan Altima Belt Diagram Guide
Refer to the specific belt routing diagram for your 2013 Nissan Altima to ensure correct installation. The serpentine belt drives the alternator, power steering pump, air conditioning compressor, and water pump, all critical for engine operation.
Identify the belt path by locating the tensioner pulley and following the routing diagram carefully. Start by releasing tension on the automatic tensioner using a 14mm wrench or appropriate tool, then slip the belt onto each pulley in the sequence shown in the diagram.
Check that the belt sits properly in each pulley groove without twisting. Confirm alignment with the crankshaft pulley and ensure that the tensioner maintains adequate tension after installation.
Inspect the belt for cracks, fraying, or glazing before reinstalling. Replace the belt if any damage is present. Tighten the tensioner and rotate the engine manually two full turns to verify smooth movement and correct positioning.
Maintain a spare serpentine belt and keep the diagram accessible for future reference. Proper routing prevents premature wear and ensures stable operation of all driven accessories.
Identifying Serpentine Belt Routing for 2013 Nissan Altima
Locate the serpentine belt at the front of the engine, wrapping around multiple pulleys. Correct routing prevents slippage and maintains proper operation of the alternator, power steering pump, and air conditioning compressor.
Follow this routing pattern for the 2.5L engine:
- Start at the crankshaft pulley at the bottom center.
- Move clockwise around the water pump pulley.
- Continue to the alternator pulley.
- Wrap around the tensioner pulley to maintain proper tension.
- Proceed to the air conditioning compressor pulley.
- Route around the idler pulley before returning to the crankshaft.
For the 3.5L V6 engine, use this sequence:
- Crankshaft pulley at the lower center.
- Wrap to the water pump pulley.
- Move to the alternator pulley.
- Proceed to the idler pulley for proper belt alignment.
- Route around the power steering pump pulley.
- Wrap around the tensioner pulley.
- Return to the crankshaft pulley.

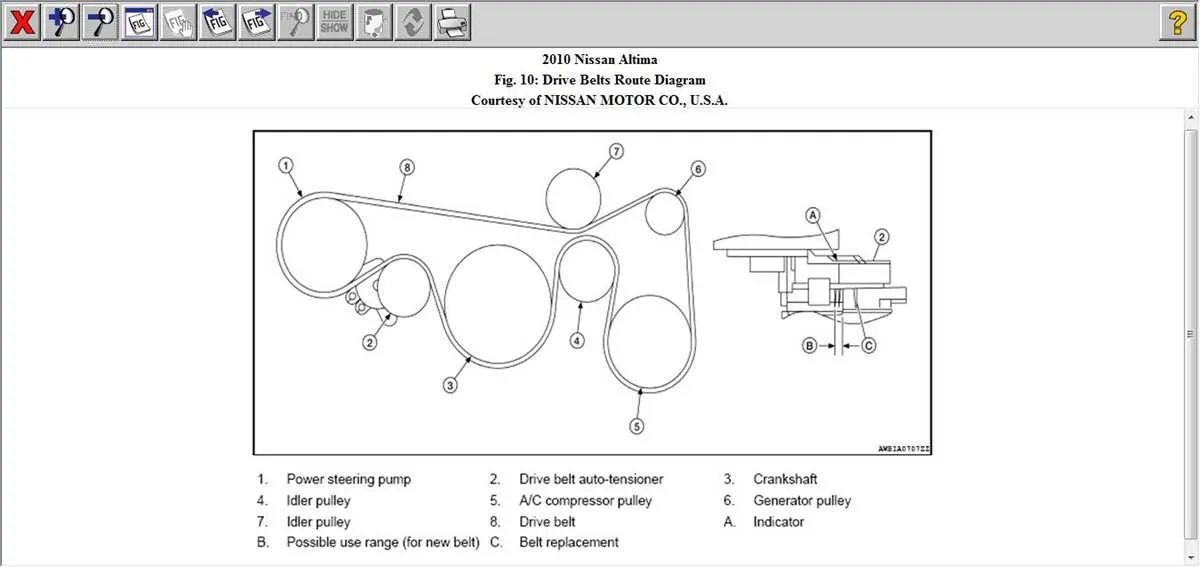

Check the routing diagram on the vehicle’s underside of the hood or the service manual. Ensure the belt sits fully in pulley grooves and the tensioner provides firm resistance. Misalignment or slack can cause noise, reduced accessory performance, or premature wear.
Regular inspection for cracks, fraying, or glazing improves reliability. Replace the belt if wear signs appear, following the exact routing to maintain engine function.
Locating Pulleys and Tensioners on 2013 Nissan Altima
Locate the crankshaft pulley at the bottom center of the engine; it drives the serpentine belt and connects directly to the engine’s main shaft.
Position the alternator pulley on the upper right side of the engine compartment; this pulley powers the alternator and maintains battery charge.
Identify the power steering pump pulley on the upper left; ensure the belt wraps smoothly over it without twisting.
The A/C compressor pulley sits near the front center of the engine; it engages only when the air conditioning is active.
Locate the idler pulleys along the belt path; they maintain proper belt tension and alignment, preventing slippage.
Find the automatic belt tensioner on the front left side of the engine; use a wrench to rotate it and relieve belt tension when replacing or routing the belt.
Confirm all pulleys spin freely and the tensioner returns to its resting position after release; this ensures correct belt operation and reduces wear.
Replacing or Adjusting the Belt on 2013 Nissan Altima
Loosen the serpentine belt by rotating the tensioner clockwise using a 14mm or 15mm ratchet. Ensure the engine is off and cooled before starting. Carefully slide the belt off the pulleys, noting the routing path or referring to the belt diagram sticker under the hood.
Inspect the belt for cracks, fraying, or glazing. Replace the belt if any damage is visible. Align the new belt along the same pulley route, making sure it sits fully in each groove. Start from the crankshaft pulley and follow the diagram for the alternator, power steering, and A/C pulleys.
Release the tensioner slowly to apply proper tension to the belt. Check that the belt rests evenly on all pulleys without twisting. Turn the engine manually with a wrench on the crankshaft pulley two full rotations and verify the belt alignment.
If adjustment is needed, use the tensioner to fine-tune the belt tension until it deflects about half an inch when pressed midway between pulleys. Recheck the alignment and tension after the first engine start to ensure smooth operation and prevent premature wear.
