To maintain your 2003 Buick LeSabre’s engine in optimal condition, knowing the belt routing is critical. The serpentine belt connects various components such as the alternator, power steering pump, and air conditioning compressor. A properly installed belt ensures that all systems run smoothly without strain or malfunction.
For accurate belt replacement, it’s essential to refer to the 2003 Buick LeSabre belt diagram. This diagram outlines the correct path and tension settings for each pulley, helping to prevent wear and misalignment. Always double-check the condition of the belt for cracks or fraying before installation. If the belt shows signs of damage, it is better to replace it than risk causing further issues to your engine.
When replacing the belt, ensure the tensioner is in good working order. A malfunctioning tensioner can cause the belt to slip or wear prematurely. If in doubt, consult a professional to ensure proper belt placement and tensioning. This preventative step can save you time and money in the long run.

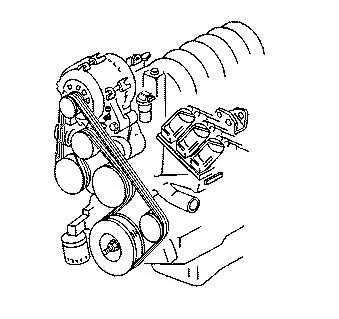

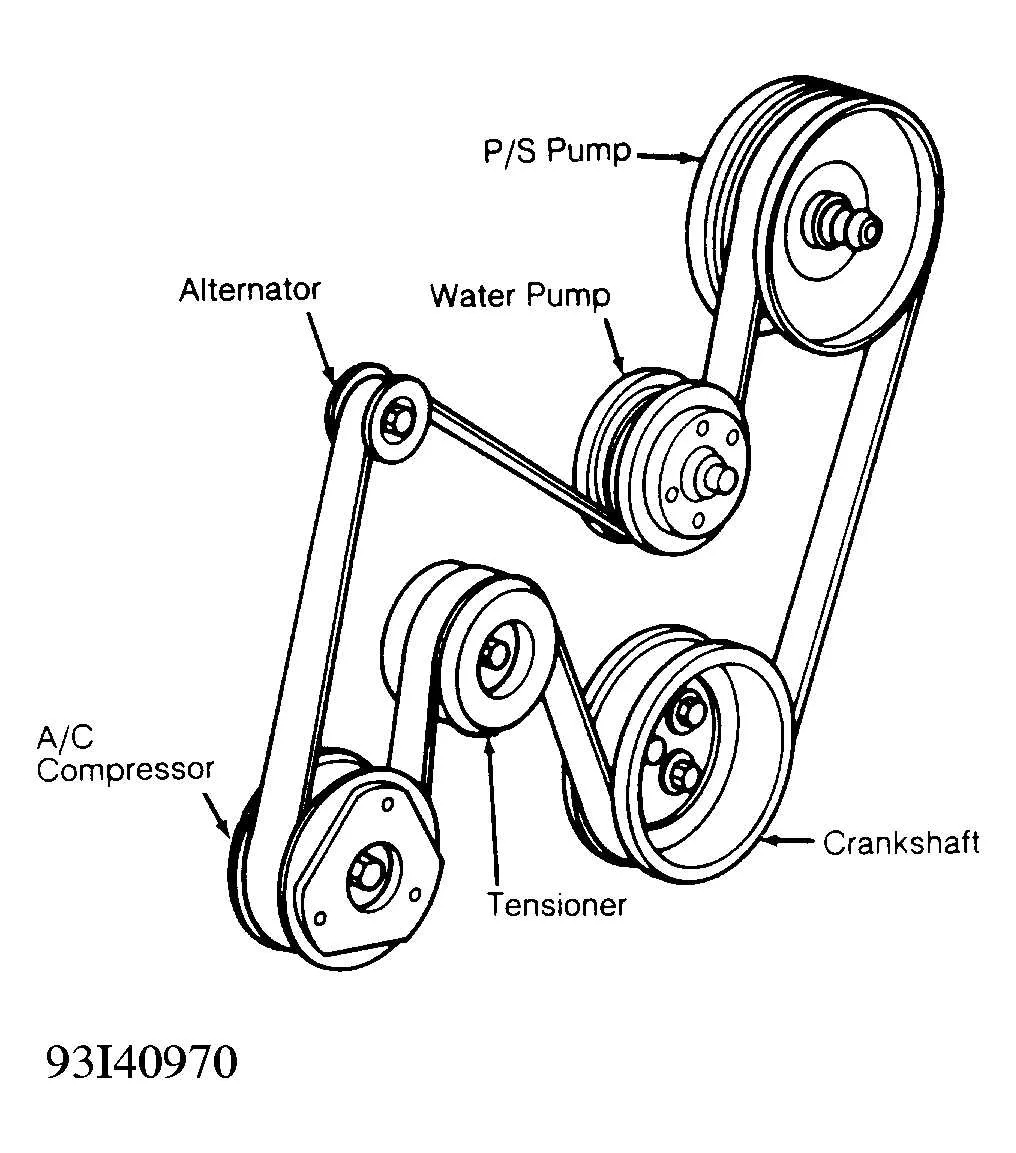

2003 Buick LeSabre Belt Diagram
The serpentine belt in the 2003 Buick LeSabre plays a critical role in driving various engine components like the alternator, power steering pump, and air conditioning compressor. Ensuring the belt is routed correctly is crucial for engine performance.
To properly identify the correct routing for the serpentine belt, first check the belt tension. If the tension is too loose or tight, it can cause unnecessary wear on engine components. Refer to the diagram printed on the engine compartment, typically near the radiator or fan shroud. This will provide the correct path for the belt, ensuring it follows the proper sequence around pulleys.
If you’re replacing the serpentine belt, it’s important to inspect the pulleys and tensioner. Over time, these parts can wear out, which may cause the new belt to fail prematurely. If any parts show signs of damage or excessive wear, replace them before installing the new belt. A smooth, properly routed belt will operate without slipping or making noise, contributing to smoother engine performance.
For troubleshooting, if the serpentine belt is making noise or slipping, check for misalignment or excessive wear on the pulleys. Replacing the belt is often necessary, but fixing misalignment or replacing damaged components is just as important for long-term reliability.
How to Identify the Correct Serpentine Belt Routing on a 2003 Buick LeSabre
To identify the correct serpentine belt routing on a 2003 Buick LeSabre, follow these steps:
-
Locate the belt routing diagram. It is usually found on a sticker or label on the radiator support or near the engine bay. If the diagram is missing or hard to read, refer to the service manual for the precise routing details.
-
Examine the belt tensioner. The tensioner is the part that keeps the belt tight. Make sure it is in good condition and that it moves freely when adjusting the belt.
-
Identify the pulleys. Ensure all pulleys are intact and rotate smoothly. Check the alternator, water pump, power steering pump, and air conditioning compressor, as the belt needs to route around them in a specific order.
-
Follow the diagram or service manual to align the belt. The routing path will typically follow a series of pulleys. Be sure that the belt goes over the crankshaft pulley first, followed by the other pulleys in the correct sequence.
-
Double-check the belt tension. Ensure that the belt has the proper tension. If it’s too loose, it will slip; if it’s too tight, it can cause damage to the components.
-
After installation, rotate the crankshaft manually to confirm the belt runs smoothly through the entire system without any misalignment or skipping.
Steps to Replace the Serpentine Belt on a 2003 Buick LeSabre
Begin by disconnecting the negative battery cable to prevent any electrical accidents. Locate the serpentine belt tensioner using a wrench or socket to relieve tension from the belt. Rotate the tensioner in the direction specified in your vehicle’s manual. Once the tension is released, carefully remove the belt from all pulleys.
Inspect the new serpentine belt to ensure it matches the old one in size and configuration. Position the new belt around the pulleys according to the diagram for your 2003 Buick LeSabre. Ensure the belt follows the same path and is aligned properly across all components.
Once the new belt is in place, use the tensioner to apply pressure and tighten the belt. Verify that the belt is snug, but not overly tight. Double-check the routing against the diagram and ensure the belt moves freely without any resistance.
Reconnect the battery and start the engine. Observe the new belt’s operation to ensure it runs smoothly without any noise or skipping. If necessary, make minor adjustments to the belt tension.
Troubleshooting Common Serpentine Belt Issues on a 2003 Buick LeSabre
If your serpentine belt on the 2003 Buick LeSabre shows signs of wear or malfunctions, start by inspecting the belt for visible damage such as cracks, fraying, or glazing. A damaged belt should be replaced immediately to prevent engine damage.
Listen for squealing noises coming from the engine. This sound typically occurs when the belt is slipping due to improper tension. Check the tensioner pulley and replace it if it’s not providing adequate tension on the belt.
Check for any misalignment of the pulleys. Misalignment can cause the belt to wear unevenly, leading to premature failure. Inspect each pulley and replace any that are damaged or not rotating freely.
If the belt is too tight, it can place excessive strain on the pulleys and the alternator. Ensure the belt is properly tensioned to avoid unnecessary stress on the components.
Examine the condition of the idler pulley and other components in the belt system. Worn bearings can lead to inefficient belt operation, causing noise or belt failure. If the idler pulley is damaged, replace it to prevent further issues.
For a thorough inspection, check the belt routing. Incorrect routing can cause the belt to come off the pulleys. Refer to the 2003 Buick LeSabre belt diagram to ensure the belt is properly positioned on all pulleys.
Finally, if the belt is still in good condition but you experience performance issues, check the alternator or other accessories powered by the belt. Faulty components can cause the belt to work harder than necessary, leading to faster wear.
