To replace or inspect the serpentine belt on a 2010 Ford F150 with a 5.4L engine, understanding the belt routing is crucial. The diagram for this specific engine model ensures that the belt is installed correctly, maintaining the proper tension for the alternator, power steering pump, air conditioning compressor, and other accessories.
Locate the belt routing diagram under the hood, usually on a sticker near the radiator or on the fan shroud. It’s also helpful to have a detailed view of the pulleys and tensioner. The serpentine belt runs along several pulleys, and a misalignment can cause damage to the components it drives.
The 2010 F150 5.4 belt diagram shows how the belt loops around each of the pulleys. Start by ensuring the tensioner is in the correct position. The tensioner arm should be adjusted to apply enough tension to the belt without over-tightening. If you’re replacing the belt, it’s a good idea to inspect the tensioner and pulleys for wear, as any damaged component could lead to premature belt failure.
For ease of installation, consider using a serpentine belt tool to relieve tension on the tensioner pulley. Once the old belt is removed, place the new one according to the routing diagram. Make sure the belt sits properly in the grooves of each pulley and that it is aligned correctly. Double-check that the belt is tight but not too tight, allowing for slight movement when pressed down.

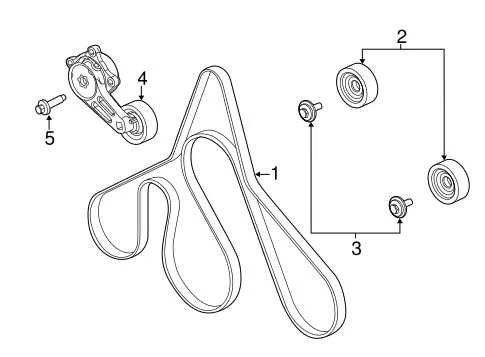

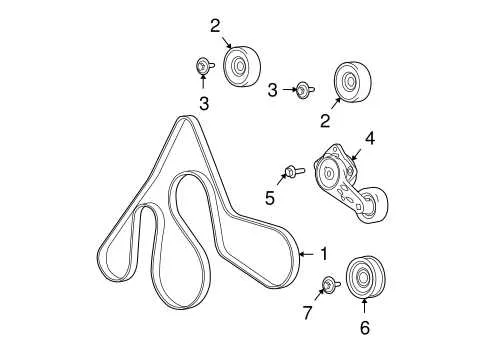

2010 F150 5.4 Belt Diagram
For the 2010 Ford F-150 5.4L engine, understanding the serpentine belt diagram is key for maintaining optimal performance. The diagram helps visualize how the belt routes around various components, including the alternator, power steering pump, water pump, and air conditioning compressor. Here’s how the system is configured:
- Start with the crankshaft pulley: The belt loops around the crankshaft pulley at the bottom of the diagram.
- Alternator: The belt moves upward to wrap around the alternator pulley, ensuring it powers the electrical system.
- Power Steering Pump: Next, it wraps around the power steering pump, allowing smooth steering operation.
- Water Pump: Continuing, the belt powers the water pump, crucial for coolant circulation in the engine.
- Air Conditioning Compressor: The last major component is the AC compressor, which is also driven by the belt.
If you need to replace the serpentine belt, ensure the tensioner is correctly adjusted to maintain proper belt tension. A misaligned or too-tight belt can cause premature wear or even breakage, leading to costly repairs. Regularly inspect the belt for signs of wear such as cracks or fraying.

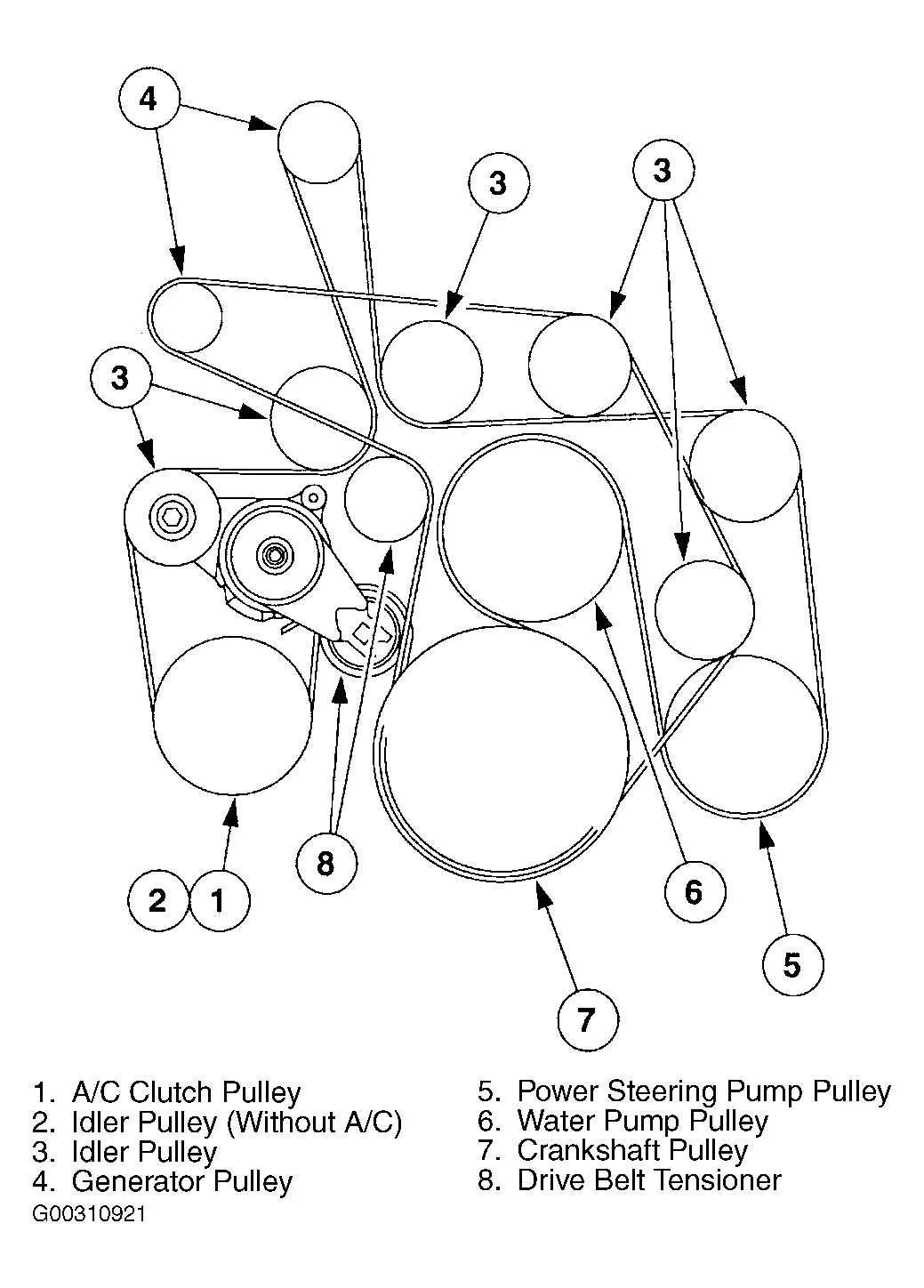

For quick reference, here’s the belt routing layout for the 2010 F-150 5.4L:
- Crankshaft Pulley
- Alternator Pulley
- Power Steering Pulley
- Water Pump Pulley
- Air Conditioning Compressor Pulley
Using the correct diagram can save time when servicing your truck and help prevent issues down the road. Be sure to double-check the diagram before installation to ensure everything is properly routed.
Step-by-Step Guide to Identifying the 2010 F150 5.4 Belt Routing
To correctly route the serpentine belt on a 2010 F150 5.4, follow these clear steps:
1. Locate the tensioner pulley on the passenger side of the engine. This pulley controls the belt’s tension and is essential for proper belt routing.
2. Use a 3/8-inch drive ratchet to rotate the tensioner clockwise. This releases tension on the belt, allowing you to remove it safely.
3. Begin by removing the belt from the accessories like the alternator, power steering pump, and air conditioning compressor. Keep track of how the belt sits around each component as you’ll need to reverse the process when installing the new belt.
4. Refer to the engine diagram for the 5.4L, which shows the correct path the belt follows. The diagram will indicate which pulleys the belt wraps around and the direction it should travel.
5. Install the new belt, starting with the crankshaft pulley. Follow the belt’s path around the other pulleys as shown in the diagram. Ensure that the belt fits snugly on each pulley without slipping off.
6. Once the belt is in place, rotate the tensioner pulley back into position to apply the correct tension to the belt. Double-check all pulleys to make sure the belt is aligned properly.
7. Run the engine briefly to ensure the belt runs smoothly without any unusual noises or movement. If everything looks good, you’re done.
Common Issues with Belt Tensioner on 2010 F150 5.4 and How to Fix Them
One of the most frequent problems with the belt tensioner on the 2010 F150 5.4 is a worn-out or faulty tensioner pulley. This typically causes the serpentine belt to slip or squeal, leading to poor engine performance or overheating. Replacing the tensioner assembly is the best solution. Start by removing the serpentine belt, then loosen the tensioner bolt and detach the pulley. Install a new tensioner in reverse order.
Another issue is a sticking or seized tensioner arm. Over time, the spring inside the tensioner can weaken or fail, preventing proper tension adjustment. You’ll notice this when the belt appears loose, even after installation. To fix it, replace the entire tensioner unit, ensuring you get a compatible part for your specific engine model.
A common sign of a faulty tensioner is an abnormal belt wear pattern. If the belt edges are frayed or damaged unevenly, the tensioner might not be applying the right amount of pressure. Check the tensioner’s condition and replace it if needed. Also, inspect the belt for any cracks or tears, which could indicate the tensioner’s failure to maintain proper tension.
If you notice any rattling noise coming from the tensioner, it could be due to a loose or damaged pulley. Tightening the bolt can sometimes resolve this, but if the pulley is visibly damaged, replacing it is necessary. Don’t forget to check the surrounding components, as issues with the alternator or power steering pump can sometimes cause tensioner problems.
Regular maintenance is key to preventing premature tensioner failure. Ensure proper lubrication of the tensioner spring and keep an eye on any signs of wear or misalignment. This will extend the lifespan of your tensioner and prevent unnecessary repairs down the road.
Tools Required for Replacing the Serpentine Belt on 2010 F150 5.4
To replace the serpentine belt on your 2010 F150 5.4, you’ll need a few specific tools. First, grab a 3/8-inch drive ratchet for loosening the tensioner pulley. A serpentine belt tool is highly recommended for easier belt removal and installation. You’ll also need a socket wrench set to remove bolts and access components that may be obstructing the belt.
For better reach, a long-handled ratchet will give you more leverage, especially when working with tight spaces. A torque wrench is necessary to ensure you tighten any bolts to the manufacturer’s specifications once the replacement is complete.
A breaker bar can help provide extra torque on the tensioner if the belt is particularly tight. Lastly, a flashlight or work light will make it easier to see in dark or cramped engine compartments.
