Locate the serpentine belt routing on the 2008 Cadillac DTS by referencing the factory diagram for accurate placement. The belt wraps around the crankshaft pulley, alternator, power steering pump, and A/C compressor in a specific sequence that ensures proper tension and operation. Misalignment can lead to squealing, premature wear, or accessory failure.
Check the tensioner position and routing points before installation. The automatic tensioner keeps the belt tight, but understanding its orientation helps avoid slipping or misrouting. Identify each pulley by its function–crankshaft, water pump, alternator, A/C, and power steering–to match the diagram precisely.
Replace the serpentine belt at the recommended mileage or if you notice cracks, fraying, or glazing. Use the diagram as a reference during removal and installation to prevent twisting or incorrect looping. Labeling each pulley or taking a quick photo before removal can save time and prevent errors.
Inspect all accessory pulleys and the tensioner for wear while the belt is off. Worn bearings or misaligned pulleys can shorten belt life. Align the belt exactly as shown in the diagram, ensuring smooth rotation and correct contact with each pulley groove for optimal performance.

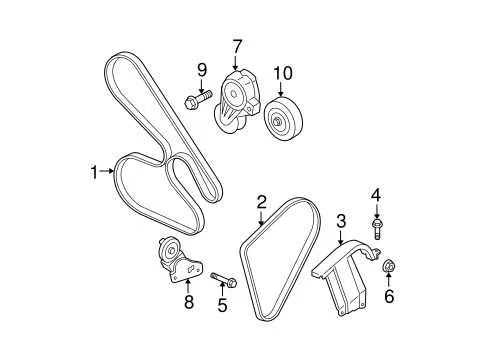

2008 Cadillac DTS Serpentine Belt Diagram
Install the serpentine belt by routing it according to the 2008 Cadillac DTS layout: start at the crankshaft pulley, then pass over the alternator, tensioner, water pump, and A/C compressor before returning to the crankshaft. The tensioner uses a spring-loaded arm; apply a wrench to rotate it and slip the belt into place.
Use the diagram printed in the owner’s manual or under the hood as a guide to avoid misalignment, which can cause squealing or premature wear. Ensure all pulleys spin freely before tightening the belt. Check that the belt sits fully in each pulley groove without twisting.
Inspect the belt for cracks, fraying, or glazing. Replace it if any signs of wear appear. Maintain proper tension: the tensioner should apply steady pressure without excessive slack. Double-check routing after the first engine start, watching for smooth operation and no unusual noises.
For accessory replacement or removal, follow the belt path carefully to avoid interference. Label components if needed to simplify reinstallation. Confirm alignment visually and by hand, verifying that the belt remains centered on each pulley under engine operation.
Locating the Serpentine Belt on a 2008 Cadillac DTS Engine
Identify the serpentine belt by opening the hood and focusing on the front of the engine, just above the crankshaft pulley. The belt wraps around multiple components, including the alternator, power steering pump, and the air conditioning compressor. For the 4.6L Northstar V8 engine, it sits low and slightly to the passenger side, making it visible without removing any major parts.
Use the belt routing diagram located on the underside of the hood or near the radiator support for reference. Trace the belt from the crankshaft pulley upward to confirm its path around each accessory pulley. Check the tensioner pulley, which is spring-loaded, to ensure the belt has proper tension and is seated correctly on all grooves.
Access is easiest from the passenger side of the engine bay. Remove any obstructing components such as the engine cover or air intake duct to get a clear view of the belt. Keep a flashlight handy to inspect the belt for cracks, fraying, or glazing while confirming the routing. This direct inspection helps prevent misalignment and ensures smooth operation of all driven accessories.

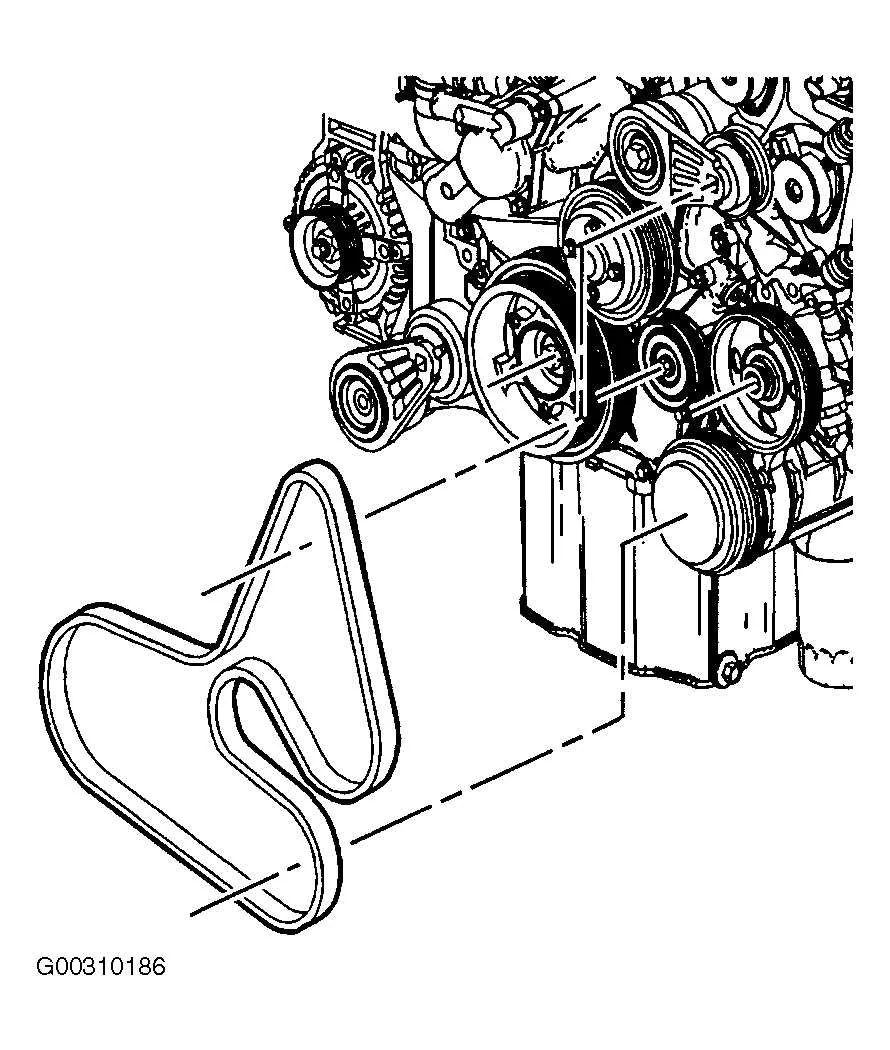

Step-by-Step Routing Diagram for the Serpentine Belt
Install the serpentine belt on a 2008 Cadillac DTS by following this precise routing sequence. Begin at the crankshaft pulley, wrapping the belt clockwise around the tensioner pulley.
- From the crankshaft, route the belt up and around the water pump pulley.
- Continue to the alternator pulley, ensuring the belt sits fully in the grooves.
- Guide the belt down to the power steering pump pulley, maintaining proper alignment.
- Loop the belt around the air conditioning compressor pulley, keeping tension consistent.
- Bring the belt back to the tensioner pulley for final adjustment, verifying all pulleys are aligned.
Double-check the belt path by comparing it with the diagram on the vehicle’s radiator support label. Use a wrench on the tensioner to create slack for easier installation. Rotate the crankshaft manually two full turns to confirm smooth operation and correct alignment. Ensure the belt sits snugly in every groove to prevent slipping or noise.
Use these steps during replacement or inspection to maintain proper function of all accessory components, avoiding engine strain and extending belt life.
Replacing the Serpentine Belt Without Removing Engine Accessories
Use a serpentine belt tool or a long-handled ratchet to release tension from the belt tensioner. Position the tool on the tensioner pulley bolt and rotate it clockwise to create slack. Carefully slide the belt off one pulley at a time, starting with the easiest-to-access accessory. Avoid forcing the belt over tight spots to prevent damage to pulleys or the belt itself.
Inspect all pulleys for wear or misalignment while the belt is loose. Align the new belt following the routing diagram specific to the 2008 Cadillac DTS, ensuring each rib sits properly in its groove. Begin threading the belt around the crankshaft pulley, then route it over the alternator, water pump, power steering, and AC pulleys, leaving the tensioner for last.
Rotate the tensioner again to slip the belt into position, then release slowly, confirming that the belt seats correctly on every pulley. Spin the crankshaft pulley by hand for two full rotations to verify smooth movement and proper alignment. Check tension at the longest span between pulleys; it should deflect roughly half an inch under moderate finger pressure.
Reconnect any accessories temporarily moved during installation. Start the engine and observe the belt for stable tracking, listening for unusual noises that indicate misalignment or improper tension. Make minor adjustments if the belt shifts off-center, then secure all components. This method avoids dismantling engine accessories while ensuring correct installation and reliable operation.
