If you’re working on your 2011 Subaru Forester and need to replace the serpentine belt, understanding its layout is key. The serpentine belt powers essential components like the alternator, power steering pump, and air conditioning compressor. Refer to the diagram for clear guidance on how the belt runs through each pulley to ensure correct installation.
The serpentine belt on the 2011 Subaru Forester is routed through a series of pulleys, with tension applied by the tensioner pulley. You’ll find a detailed diagram under the hood, typically near the radiator or on the front of the engine bay. The belt should be installed according to this diagram to prevent misalignment or excessive wear on the components it drives.
Ensure the belt is the correct length and specifications for your model. The diagram will highlight the precise routing path, including the positioning of the tensioner and idler pulleys. With the proper tools and understanding of this diagram, replacing the belt becomes a straightforward task.
After installation, check the tension of the belt. Too much slack can cause slipping, while excessive tightness may put unnecessary strain on the engine components. Always consult your vehicle’s manual for specific tensioning instructions, and inspect the belt for any signs of wear during maintenance checks.

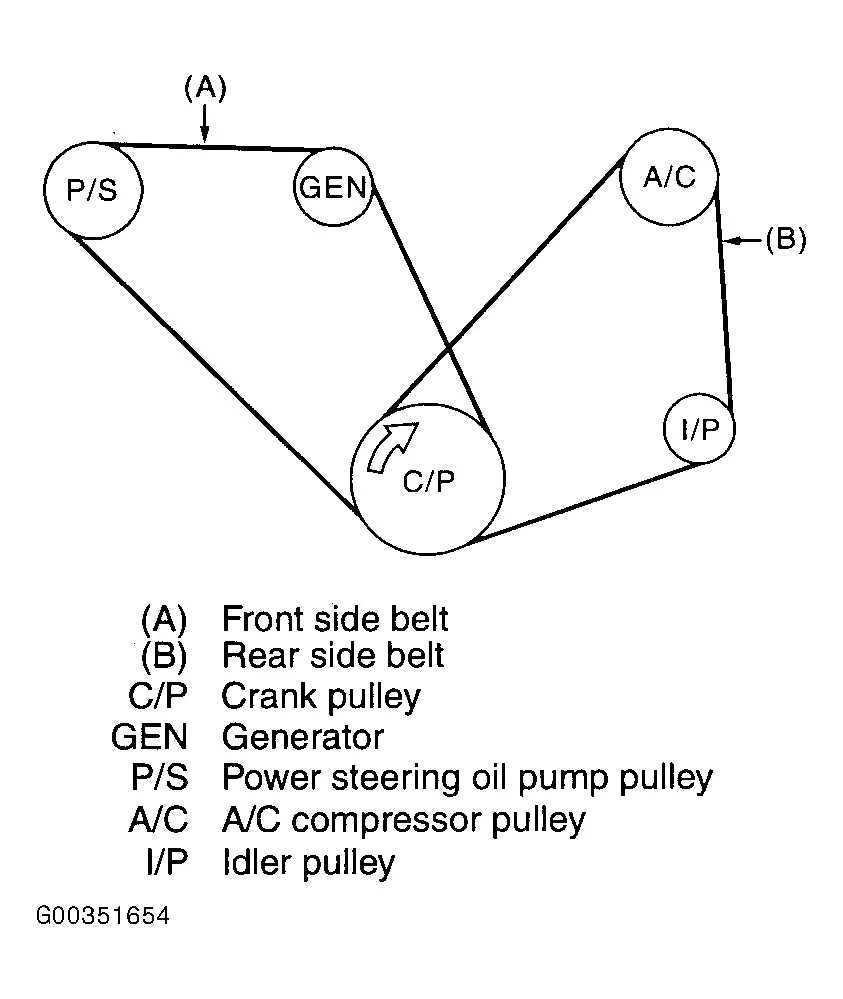

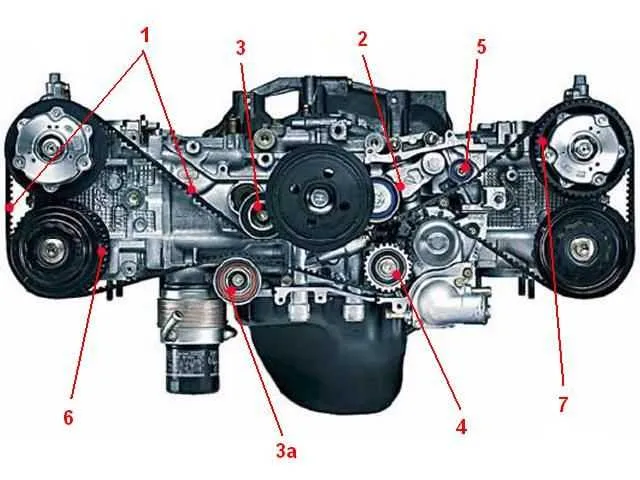

2011 Subaru Forester Serpentine Belt Diagram
The serpentine belt on a 2011 Subaru Forester is crucial for powering multiple engine accessories like the alternator, power steering pump, and air conditioning compressor. To ensure proper installation, it’s essential to follow the correct routing based on the engine’s configuration.
For the 2.5L engine, the serpentine belt route typically starts at the crankshaft pulley, loops around the tensioner, alternator, power steering pulley, and idler pulley, then finishes at the air conditioning compressor. Ensure that the belt is tightly secured on all pulleys without slack. The belt should run smoothly without any rubbing against nearby components.
Check the diagram on the engine bay label or your vehicle’s service manual for precise routing. If the diagram is not visible, consult a mechanic or repair manual for guidance. Always inspect the belt for signs of wear or cracks and replace it if needed to avoid engine accessory failure.
Before replacing the belt, relieve the tension by using a wrench to rotate the belt tensioner away from the belt. Once the belt is removed, inspect all pulleys for smooth rotation to avoid issues with the new belt. After installing the new belt, rotate the engine by hand to ensure the belt is aligned correctly and there’s no misrouting.
How to Identify the Correct Serpentine Belt Routing for 2011 Subaru Forester
For the 2011 Subaru Forester, identifying the correct serpentine belt routing involves following a specific path around the engine pulleys. The first step is to locate the belt diagram, which is typically found on a sticker in the engine compartment, near the radiator or on the underside of the hood. This diagram provides a visual guide for how the belt should run around various components like the alternator, power steering pump, and air conditioning compressor.
Next, ensure the belt follows the correct direction of movement, which should be clockwise when viewed from the front of the engine. Start by routing the belt around the crankshaft pulley, then work your way through the tensioner, alternator, and other pulleys according to the diagram. It’s vital that the belt fits snugly without slipping off any pulley. A loose or improperly routed belt can cause performance issues or even engine damage.
If you can’t find the diagram, you can refer to the vehicle’s manual or online resources specific to the 2011 Forester for a detailed illustration. Ensure the belt tension is set correctly by adjusting the tensioner. Too much slack or tightness could reduce the belt’s lifespan and cause malfunction. Double-check all pulleys are aligned and the belt is tracking smoothly before finishing the installation.
For clarity, take a photo of the diagram or make a note of the belt’s routing before removing the old one, as this will help you avoid mistakes.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Subaru Forester
Replacing the serpentine belt on your 2011 Subaru Forester is a straightforward task with the right tools. Follow these steps to ensure a successful replacement.
- Gather the Tools and Parts
- New serpentine belt
- Socket wrench set
- Ratchet
- Torque wrench
- Serpentine belt tool or a long-handled wrench
The serpentine belt runs along the front of the engine, driving various accessories like the alternator, power steering, and air conditioning compressor. Refer to the belt routing diagram under the hood for proper installation.
Use the serpentine belt tool or a long-handled wrench to rotate the tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to remove it easily.
Once the tension is released, slide the belt off the pulleys. Take note of the belt routing for reinstallation.
Before installing the new belt, check the pulleys for any signs of wear, such as cracks or excessive play. Replace any faulty pulleys before continuing.
Position the new belt according to the routing diagram. Make sure the belt sits properly on all pulleys. Be cautious not to force it onto any pulley.
Rotate the tensioner pulley clockwise to apply tension to the new belt. The belt should fit snugly but not be overly tight.
Ensure that the belt is correctly routed and aligned on all pulleys. Use your hands to feel for any slack or misalignment.
Start the engine and observe the serpentine belt in motion. Listen for any unusual noises or vibrations that could indicate improper installation.
Once everything is in place, use a torque wrench to tighten the tensioner pulley according to manufacturer specifications. Refer to the owner’s manual for the correct torque settings.
By following these steps, your 2011 Subaru Forester should have a properly installed serpentine belt that runs smoothly. Regularly check the belt for wear to avoid future issues.
Common Issues with Serpentine Belt Installation on 2011 Subaru Forester and How to Avoid Them
Incorrect belt routing is a common mistake when installing a serpentine belt on the 2011 Subaru Forester. Double-check the belt’s path before securing it to avoid misalignment, which can lead to premature wear and poor performance.
Another issue is improper tension. If the belt isn’t tensioned correctly, it can slip or wear out faster. Use a belt tension gauge to ensure the correct tension is applied. If you’re using an automatic tensioner, verify it’s functioning properly to prevent over-tightening or slack.
Check for debris or contaminants on the pulleys before installation. Any foreign material can cause excessive friction, leading to belt damage or reduced system efficiency. Clean the pulleys thoroughly to ensure smooth operation.
A worn-out or failing tensioner is often overlooked. A faulty tensioner can cause the belt to lose its proper tension, leading to belt failure. Test the tensioner for smooth movement before installing the new serpentine belt.
Lastly, ensure that you’re using the correct belt size for your Forester. A belt that’s too long or too short will not perform optimally, potentially causing system failure. Always refer to the vehicle’s manual or manufacturer’s specifications for the proper part number and dimensions.
