The serpentine belt in the 2012 Mazda 3 plays a critical role in powering various engine accessories. Knowing how to identify the correct routing for this belt can save you time and ensure proper functionality of your vehicle’s systems. Always refer to the vehicle’s manual or a reliable diagram for accurate belt routing, especially when replacing or inspecting the belt.
Inspecting the serpentine belt is important for maintaining the longevity of your vehicle. Look for signs of wear, such as cracks, fraying, or glazing. A damaged belt can lead to overheating, electrical issues, or even a breakdown. If you notice any of these issues, consider replacing the belt immediately.
The 2012 Mazda 3 serpentine belt diagram provides a clear layout of the components that the belt drives, including the alternator, air conditioning compressor, and power steering pump. Understanding how these components work together will help you identify potential problems quickly.
2012 Mazda 3 Serpentine Belt Diagram
The serpentine belt in a 2012 Mazda 3 plays a key role in powering various engine components like the alternator, air conditioning compressor, power steering pump, and water pump. Understanding the layout of this belt is crucial for maintenance and troubleshooting. Here’s how to read the diagram and replace the serpentine belt when necessary.
Begin by locating the serpentine belt on the front of the engine. The 2012 Mazda 3 typically features a single continuous belt that loops around various pulleys. The belt should be checked regularly for signs of wear, cracks, or fraying. If any of these issues are present, replacing the belt immediately can prevent engine damage.

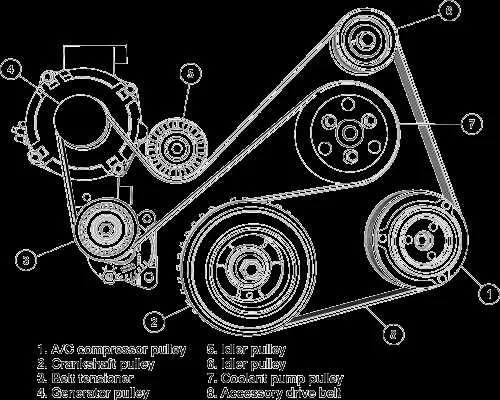

The diagram for this belt shows the precise path it follows across pulleys. Pay attention to the tensioner pulley, which is designed to maintain the correct tension on the belt. If the belt is too loose or too tight, it can lead to premature wear and failure.
- The serpentine belt runs from the crankshaft pulley, looping around the alternator, power steering pump, and air conditioning compressor.
- It also passes through the water pump pulley, which is critical for engine cooling.
- Ensure the belt is routed correctly according to the diagram, ensuring all components are driven properly.
To replace the serpentine belt, first, use a wrench to release the tension on the tensioner pulley. Remove the old belt and route the new one according to the diagram. Ensure the belt is seated correctly in all grooves before tightening the tensioner pulley again.
Regularly inspect the belt for wear and replace it every 60,000 to 100,000 miles to maintain optimal engine performance.
How to Identify the Serpentine Belt Path in a 2012 Mazda 3
To identify the serpentine belt path in a 2012 Mazda 3, start by locating the diagram. It is typically found on the engine bay, either on the radiator support or near the front of the engine. This diagram shows the routing of the serpentine belt around various pulleys and components.
Examine the tensioner pulley first. The belt loops around it, helping maintain proper tension. The diagram will show its position relative to the crankshaft pulley, alternator, air conditioning compressor, and power steering pump. Each pulley serves a specific function, so it’s important to follow the diagram carefully.
When inspecting the belt path, ensure the belt is properly aligned with the grooves of each pulley. Misalignment can cause premature wear or belt failure. Check the routing around the alternator and other components to ensure it follows the pattern exactly as shown in the diagram.
If you are replacing the belt, it’s crucial to note the direction of rotation. The belt must run smoothly across each pulley without any slack or tight spots. After installing the new belt, turn the engine over by hand to verify proper alignment and function.
Regular inspection of the serpentine belt path is recommended to prevent any unexpected failures. Keep an eye out for any worn-out or damaged pulleys, as they can affect the belt’s routing and lead to engine issues.
Common Issues with the Serpentine Belt in 2012 Mazda 3 and How to Fix Them
Worn or Cracked Belt: Over time, the serpentine belt may develop cracks or signs of wear. Inspect the belt for visible damage. If the belt looks worn, replace it to avoid further complications, such as slipping or failure.
Squealing Noise: A squealing sound when starting the engine or when accelerating often points to a loose or worn-out serpentine belt. Tighten the belt or replace it if necessary. Check the pulleys for any misalignment or wear.
Belt Slipping: If the belt is slipping, it may be due to improper tension or a worn pulley. Use a tension gauge to check the belt tension. If the belt is loose, adjust the tensioner or replace the belt if it’s stretched. Also, inspect the pulleys for wear or damage that could cause slippage.
Pulley Misalignment: A misaligned pulley can cause the belt to wear unevenly or come off. Check the alignment of the pulleys by turning the engine by hand and observing if they rotate smoothly. If any pulley seems misaligned, replace or realign it.
Damaged Tensioner: A faulty tensioner can lead to improper belt tension. If the tensioner is not holding the correct tension, replace it immediately. A worn-out tensioner will cause the belt to lose proper tension and result in slipping or squealing.
Step-by-Step Guide to Replacing the Serpentine Belt in a 2012 Mazda 3
Start by gathering the necessary tools: a socket wrench, serpentine belt tool, and a replacement belt. Ensure the vehicle is parked on a flat surface with the engine off and cool.
Locate the serpentine belt and tensioner pulley. The belt runs across several components including the alternator, power steering pump, and AC compressor. The tensioner pulley maintains the belt’s tension and needs to be released to remove the belt.
Use the serpentine belt tool to rotate the tensioner counterclockwise, which loosens the tension on the belt. Once released, carefully slide the belt off the pulleys, noting the routing path for reinstallation.
Compare the old belt to the new one to ensure they are of the same size and configuration. Lay the new belt on the pulleys, following the same path as the old one.
Rotate the tensioner again to allow the new belt to fit into place. Make sure the belt is seated properly on all pulleys and that there is no slack.
Once the belt is securely in place, manually rotate the crankshaft pulley to ensure the belt moves smoothly. Check for any signs of misalignment or incorrect tension.
Finally, start the engine and observe the belt while the vehicle runs. Listen for any unusual noises and confirm the belt runs smoothly. If everything looks good, the job is complete.
