If you’re working on the Snapper SPX 42, understanding the belt system and its layout is key for proper maintenance and troubleshooting. Refer to the diagram to ensure the belts are aligned correctly and tensioned properly for optimal performance.
The Snapper SPX 42 typically uses a dual-belt system for smooth operation. This includes a primary drive belt and a secondary belt that connects different components, including the engine, the blades, and the wheels. It’s important to regularly inspect these belts for signs of wear or damage to avoid unexpected issues while using the mower.
When replacing or adjusting belts, make sure to follow the diagram closely. Ensure that the belts are routed precisely as shown in the guide. Misrouted belts can lead to poor performance, excessive wear, or even system failure. Also, check the tension after installing the new belts, as too tight or too loose a belt can affect the mower’s operation.
In case you’re troubleshooting performance issues, inspecting the belts and their routing should be your first step. A misaligned or worn belt can cause slipping or uneven power delivery to the mower’s blades and wheels. Keep the belt diagram handy for quick reference when performing these checks.

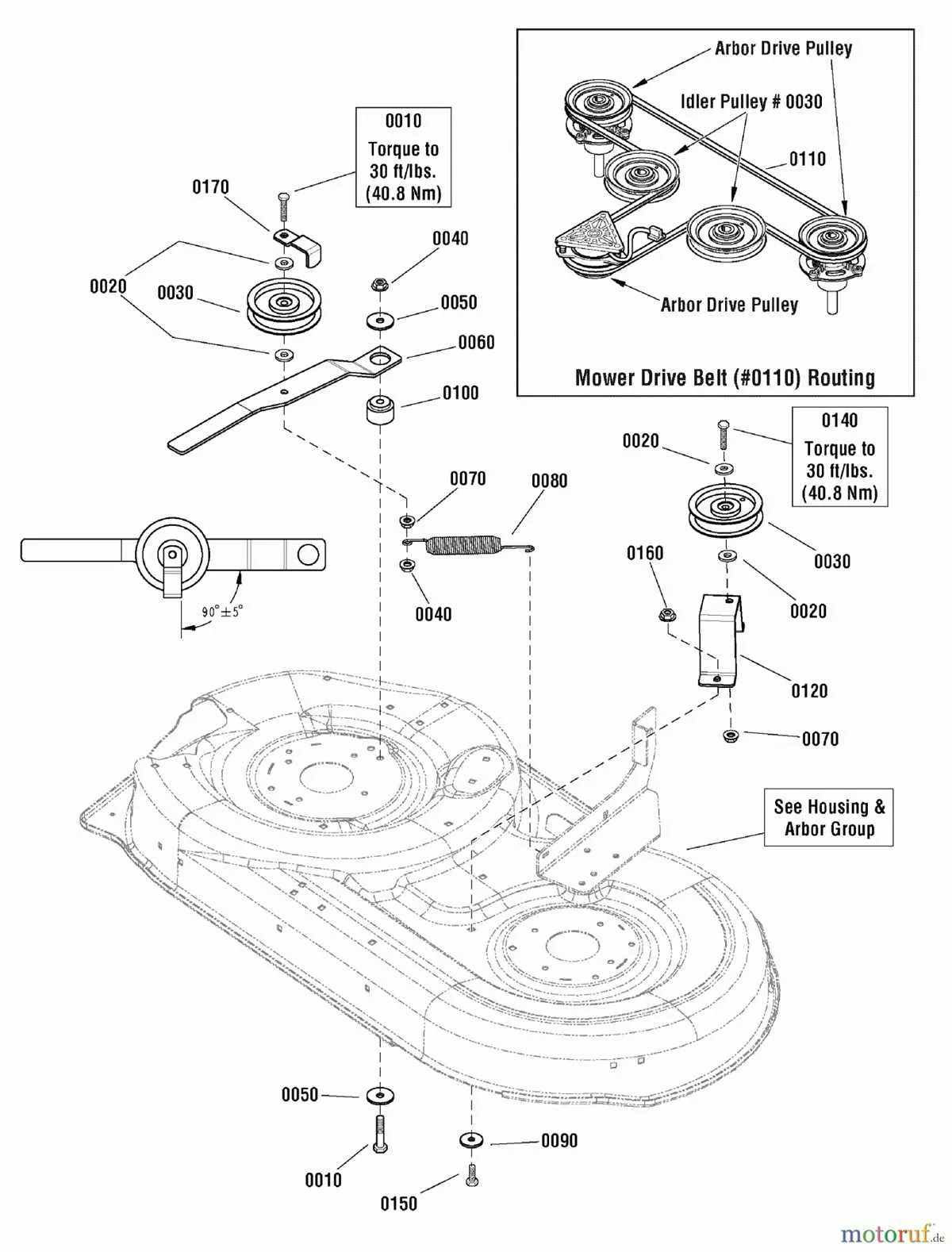

Snapper SPX 42 Belt Diagram
To replace or inspect the belt on your Snapper SPX 42, follow the diagram carefully to ensure correct placement. First, locate the main drive belt and note the routing path. The belt should pass over the engine pulley, under the tensioner, and through the two idler pulleys, before connecting to the mower blades. Ensure the belt is tight enough to avoid slipping but not too tight to cause wear on the pulleys.
Check the diagram for the belt’s alignment with the pulleys, ensuring that it sits evenly in the grooves. This alignment is key for smooth operation. If you’re replacing the belt, make sure the new belt matches the original in both length and width. Refer to the model specifications for the exact measurements to avoid compatibility issues.
After installation, manually rotate the mower blades to ensure the belt moves freely and stays within the correct alignment. If the belt makes any noise or slips during testing, recheck the routing and tension. A properly installed belt will improve the mower’s efficiency and extend its lifespan.
Understanding the Belt Layout on Snapper SPX 42
The Snapper SPX 42 features a precise belt system designed for optimal performance and smooth operation. The key to maintaining this system is knowing the correct routing of the belts. Always ensure the primary drive belt is securely positioned around the engine pulley and the transmission. The secondary belts connect the transmission to the wheels, transferring power efficiently for movement. Check the tension of these belts regularly to avoid slippage and ensure they are properly aligned with the pulleys.
Start by inspecting the drive belt located at the front. It runs from the engine’s crankshaft to the transmission. For smooth operation, the belt should not have excessive slack or signs of wear. Next, the secondary belt should be routed to the rear axle, driving the wheels. Make sure it’s not twisted or misaligned, as this could cause uneven power distribution.
If you notice any issues with belt wear or alignment, replace the affected belts immediately to prevent further damage. Adjust the tension to manufacturer specifications to keep the machine running smoothly. Regular maintenance of these components will extend the life of your Snapper SPX 42 and keep it operating at its best.
Step-by-Step Process to Replace the Belt on Snapper SPX 42
Start by ensuring the mower is turned off and the ignition key is removed to prevent any accidents.
- Lift the front of the mower using a jack or appropriate lifting tool for better access to the underside.
- Locate the belt cover on the Snapper SPX 42 and remove the screws securing it. Set the cover aside.
- Inspect the belt for any visible damage. You will need to remove the old belt before installing the new one.
- Loosen the tension on the existing belt. You may need to adjust the tension pulley to release it.
- Carefully remove the belt from the pulleys, taking note of the belt routing to ensure the new one is installed correctly.
- Take the new belt and align it along the path where the old belt was. Make sure it follows the same routing as the previous belt.
- Once the belt is in place, adjust the tension pulley back to its original position to tighten the belt.
- Reattach the belt cover and secure it with the screws you removed earlier.
- Lower the mower and check the belt tension. Ensure it has enough slack for smooth operation but is tight enough to engage the pulleys properly.
- Finally, test the mower by starting it and verifying that the belt is functioning as expected.
Replacing the belt on your Snapper SPX 42 is straightforward if you follow these steps carefully. Always ensure that the mower is turned off and all safety precautions are followed during the process.
Common Issues with the Snapper SPX 42 Belt and How to Fix Them
One of the most frequent problems with the Snapper SPX 42 is a loose or worn-out belt. If the belt has become too loose, it can slip off or fail to engage properly, affecting the mower’s performance. To fix this, inspect the belt for signs of wear and replace it if necessary. Adjust the tension according to the manufacturer’s specifications, ensuring the belt is neither too tight nor too loose.
Another common issue is the belt coming off due to misalignment. This can happen when the pulleys are not aligned correctly, causing the belt to slip or rub against the sides. Check the alignment of the pulleys and adjust them as needed. If the pulleys show signs of damage or wear, they should be replaced to prevent further belt issues.
In some cases, the belt may become damaged due to excessive debris buildup. Grass, dirt, and other materials can get caught around the pulleys, causing the belt to wear out prematurely. To avoid this, regularly clean the pulleys and belt area to ensure there is no debris accumulation. Clear the area after each use, and inspect the belt for any signs of fraying or other damage.
If the belt still doesn’t engage properly, check the belt’s routing. A wrong belt routing can result in improper tension or cause the belt to slip. Refer to the Snapper SPX 42 belt diagram to verify that the belt is routed correctly through all pulleys and guides.
Finally, worn bearings in the pulleys can contribute to belt issues. Over time, bearings can seize, causing resistance that affects belt movement. If the bearings are damaged or noisy, they should be replaced to restore smooth operation and prevent further strain on the belt.
