To properly install or replace the serpentine belt on a 2012 Honda Accord V6, refer to the belt routing diagram for the accurate configuration. The diagram shows the exact path the serpentine belt should take around the engine components, ensuring all systems are powered correctly.
The serpentine belt on this model drives several critical components, such as the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to check the belt for wear and tear regularly to avoid engine performance issues.
When replacing the serpentine belt, ensure it is routed according to the factory diagram. Incorrect routing may result in damaged components or belt slippage. You can find the diagram on the underside of the hood, or refer to the vehicle’s service manual for additional details. Always verify the belt tension after installation to prevent premature wear.
For a smoother process, use a belt tool to relieve tension on the idler pulley. This will allow for easy removal and installation of the belt without causing any damage to the tensioner. Regular inspections of the serpentine belt system can help prevent unexpected breakdowns.

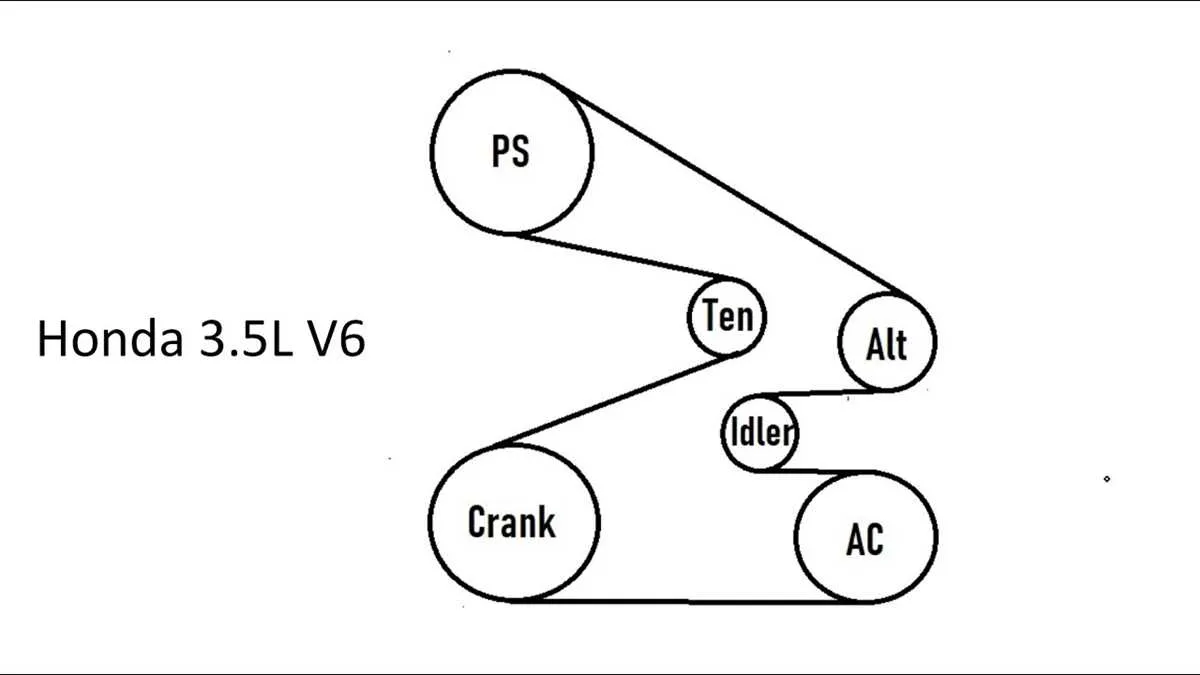

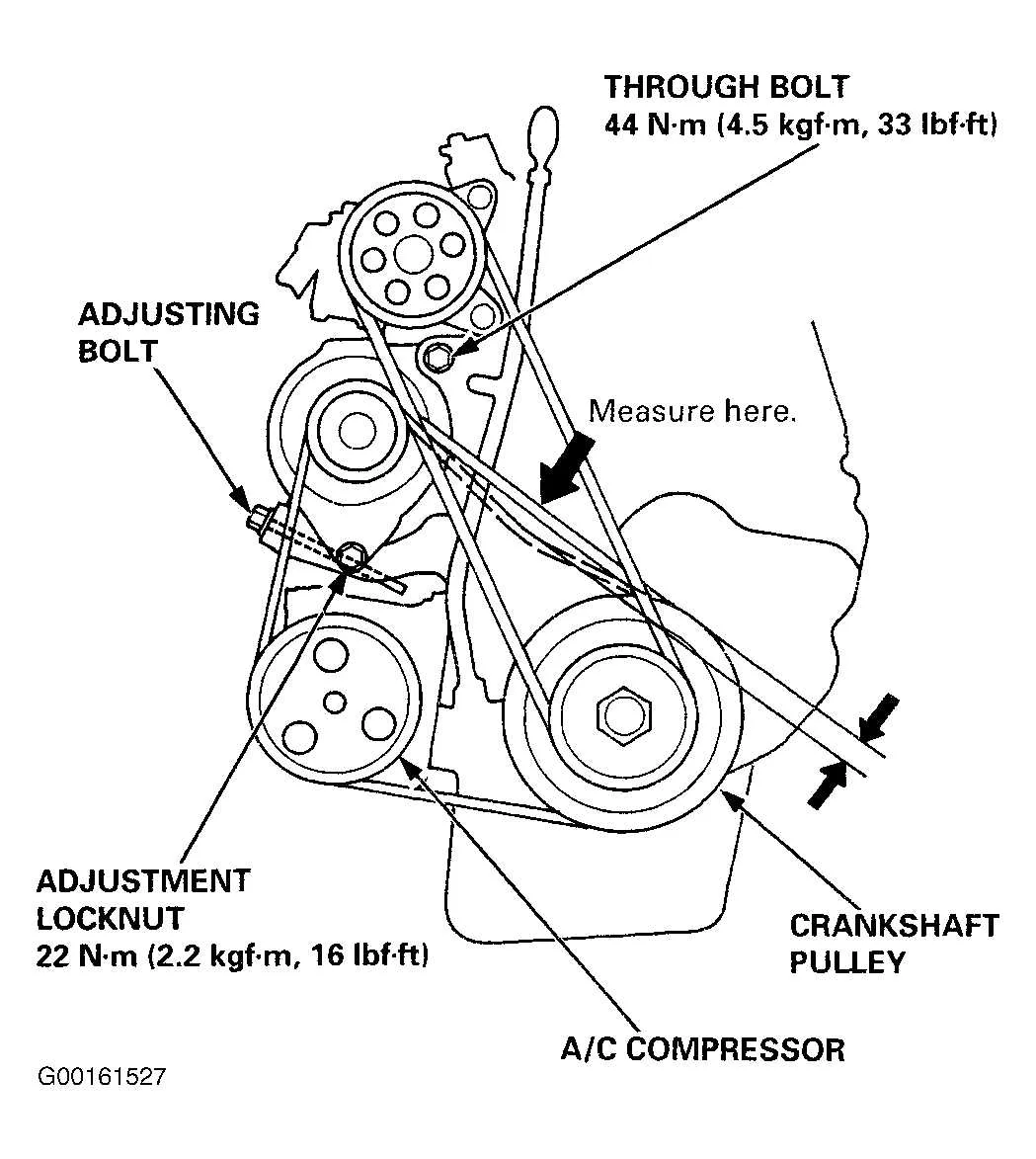

2012 Honda Accord V6 Serpentine Belt Diagram
The serpentine belt on a 2012 Honda Accord V6 is a critical component for driving the alternator, power steering pump, air conditioning compressor, and water pump. To ensure your vehicle runs smoothly, refer to the following belt routing diagram and guidelines for proper installation.
When replacing the serpentine belt, follow the precise path shown in the diagram. Start by locating the tensioner pulley and use a wrench to release the tension. Then, remove the old belt and install the new one by following the same routing. The belt should be snug but not overly tight. Ensure all pulleys are properly aligned to avoid premature wear on the new belt.
Check the condition of other components such as pulleys and tensioner while replacing the belt. Any signs of wear, rust, or misalignment should be addressed immediately to prevent future issues.
After installation, manually rotate the belt to ensure it is positioned correctly before starting the engine. This will help you verify that there are no misalignments or noises. Once the engine is running, listen for any unusual sounds that could indicate problems with the belt or associated components.
How to Read the 2012 Honda Accord V6 Serpentine Belt Diagram
Start by identifying the components shown in the diagram. The serpentine belt diagram for the 2012 Honda Accord V6 includes the belt routing and the components it powers, such as the alternator, power steering pump, air conditioning compressor, and water pump. Knowing the role of each component helps you understand the diagram more clearly.

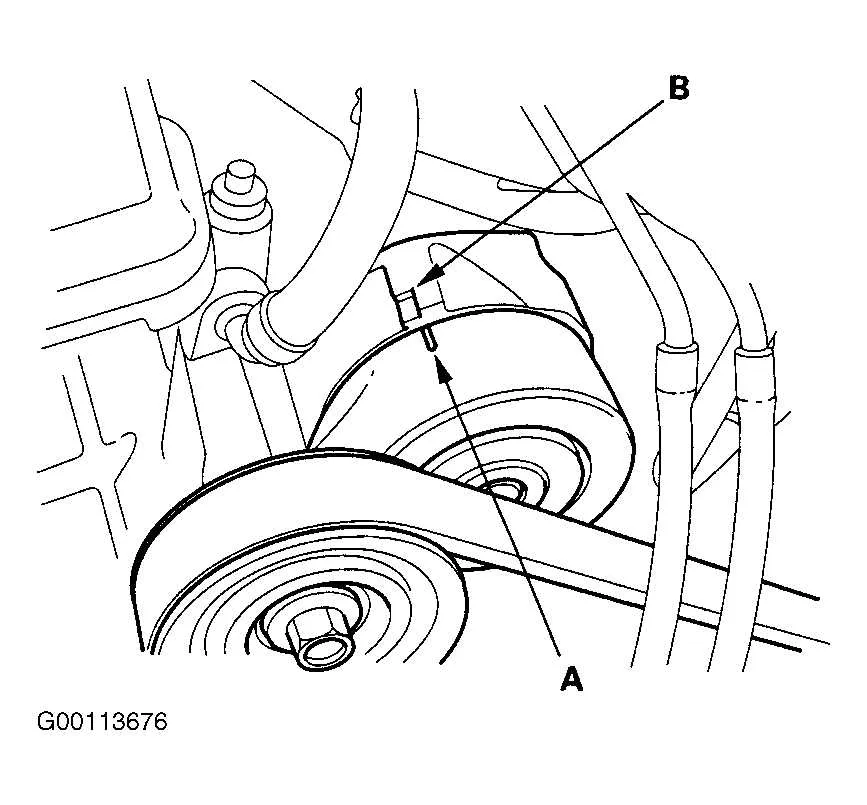

Next, locate the tensioner. This is a crucial part that keeps the belt tight. The diagram typically shows the tensioner’s direction of movement, which is essential when replacing the belt. The tensioner will either need to be rotated to relieve pressure or simply moved to a certain position to allow the belt to be removed.
Examine the direction of rotation for each pulley. Most serpentine belt diagrams indicate the rotation direction with arrows. Be sure to follow the rotation to ensure that the belt is installed correctly, preventing damage to components.
- Check for the path of the belt around each component, ensuring it follows the proper tensioner and pulleys.
- If the diagram includes any specific instructions, such as the use of a special tool to release the tensioner, follow them carefully.
- Note the orientation of the belt, especially where it loops around components, to avoid misalignment during installation.
Finally, always compare the diagram to the physical layout of your engine to ensure the belt routing matches. If you notice any discrepancies or signs of wear in your current belt, consider replacing it to prevent unexpected failures.
Step-by-Step Guide to Replacing the Serpentine Belt on 2012 Honda Accord V6
Start by disconnecting the car battery to avoid any electrical issues. Use a wrench to remove the negative terminal. This step is important for your safety throughout the repair process.
Locate the serpentine belt. It runs across several components, including the alternator, power steering pump, and air conditioning compressor. Understanding the path of the belt is key to its replacement.
To relieve tension, use a serpentine belt tool or a breaker bar to rotate the tensioner pulley. This will loosen the belt. Carefully slide the belt off the pulleys once the tension is released.
Before installing the new belt, compare it with the old one to ensure the correct size and fit. Lay the new belt out on a flat surface and make sure its ribs and grooves align with the pulley system.
Begin installing the new serpentine belt by threading it over the pulleys, starting from the bottom. Follow the path indicated by the diagram for the 2012 Honda Accord V6. Be sure the belt sits properly in the grooves of each pulley.
Once the belt is in place, rotate the tensioner pulley again to relieve the pressure and slip the belt onto the final pulley. Double-check that the belt is seated correctly across all pulleys.
Reattach the negative terminal of the battery. Start the engine and observe the belt’s movement to ensure there is no slippage or noise. If the belt appears to be functioning properly, you’re done.
Check the belt’s tension after a short drive to ensure it remains secure and correctly aligned.
Troubleshooting Common Serpentine Belt Issues in the 2012 Honda Accord V6
Inspect the serpentine belt for visible signs of wear, such as cracks, fraying, or glazing. A worn belt can slip, causing poor engine performance and reduced power to accessories like the alternator, power steering, and air conditioning. If the belt appears damaged, replace it immediately to avoid further complications.
If you hear squealing or squeaking noises from the engine area, check the belt tension. A loose or misaligned belt can create friction, leading to these sounds. Use a belt tension gauge to ensure the correct tension is maintained. If it’s too loose, adjust the tensioner or replace a faulty tensioner pulley.
For poor AC or overheating issues, verify the condition of the serpentine belt. A slipping belt may not drive the water pump or air conditioning compressor effectively, reducing system efficiency. In these cases, replacing the belt or addressing misalignment issues is necessary.
Ensure that the pulleys are in proper alignment. Misaligned pulleys can cause premature belt wear and tension issues. Check for any pulley damage or worn bearings that might contribute to belt misalignment.
If the serpentine belt is frequently coming off, inspect the pulleys for debris or buildup that could obstruct their movement. Clean any dirt or foreign objects from the pulleys to restore smooth operation.
Lastly, replace the serpentine belt at regular intervals, typically every 60,000 to 100,000 miles, depending on your driving habits and environmental conditions. A proactive approach can prevent unexpected breakdowns and extend the life of other engine components.
