To replace the drive belt on your John Deere GT245, it’s important to first understand the routing diagram. This ensures that the belt is installed correctly, reducing the risk of malfunction. The drive belt is responsible for transferring power from the engine to the transmission, making proper installation crucial for the machine’s performance.
Check the diagram carefully before starting the replacement process. The belt should be routed through specific pulleys, and the tension should be adjusted to prevent slippage. A misrouted or poorly tensioned belt can lead to issues such as inefficient operation or premature wear.
Ensure that the replacement belt matches the specifications outlined in the diagram. Using the wrong size or type of belt will cause the machine to operate improperly, and may even lead to damage. If you notice any damage to the pulleys or the belt’s path, address it before reassembly to maintain the longevity of your GT245.

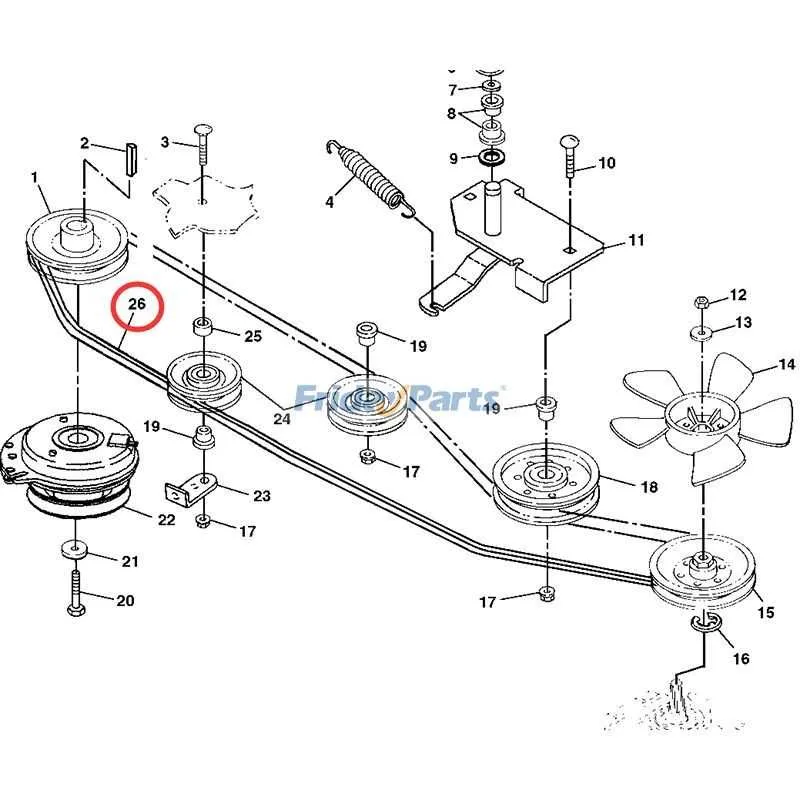

John Deere GT245 Drive Belt Diagram
When replacing or inspecting the drive belt on the John Deere GT245, it is important to refer to a detailed belt diagram to ensure proper routing. The drive belt is responsible for transferring power from the engine to various components, such as the mower deck and the transmission system. Proper alignment of the belt is crucial to maintaining functionality and avoiding premature wear.
The GT245 uses a dual-belt system, with one belt connecting the engine to the transmission, and the other belt driving the mower deck. Begin by lifting the hood and locating the engine pulley. Identify the routing path of the belts as shown in the diagram. Pay attention to the tensioner pulley, which is responsible for maintaining the correct tension on the drive belt. If the belt is loose or too tight, it can lead to performance issues.
To replace the belt, first disengage the mower deck, then remove the old belt by loosening the tension on the idler pulley. Carefully remove the belt from the pulleys and replace it with a new one, ensuring it follows the exact routing as indicated in the diagram. Check that the belt fits snugly in all grooves, and that there is adequate tension. Test the system by engaging the mower deck and running the tractor briefly to confirm smooth operation.
If you experience unusual noise or slippage, double-check the belt’s alignment and tension. Over time, belts can stretch or become damaged, so regular inspection is necessary to maintain performance. Refer to the owner’s manual for recommended maintenance intervals and part numbers for replacements.
How to Identify the Correct Drive Belt for John Deere GT245

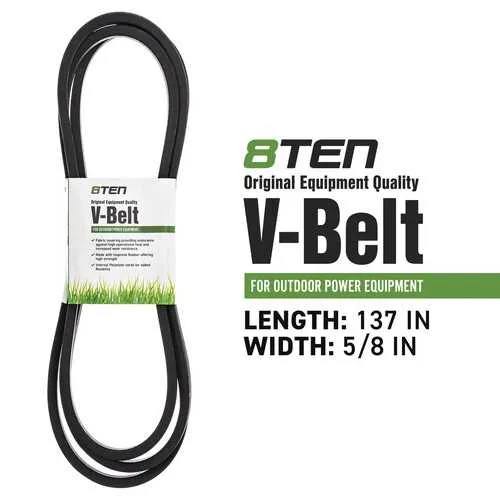

Check the part number of the original drive belt. You can find it on the existing belt or in the owner’s manual. Make sure to match the belt length, width, and material to the specifications for the John Deere GT245.
Verify the belt configuration. The John Deere GT245 uses a specific belt routing system. Ensure that the replacement belt matches the correct path, paying close attention to any twists or turns that may affect performance.
Inspect the belt’s material and construction. John Deere recommends using OEM belts to ensure the best fit and durability. Choose a belt made from high-quality rubber compounds with reinforced layers for added strength.
Measure the belt dimensions if you don’t have the original. Use a tape measure to check the length and width of the current belt. Make sure the replacement belt is of the same dimensions to avoid issues with the drive system.
Cross-reference your part number with official John Deere catalogs. Authorized dealers and online platforms typically offer a list of compatible belts for the GT245 model. Always double-check that the part number is correct before purchasing.
Consult the service manual. It contains detailed information on belt sizes and specifications. If unsure, the manual is a reliable resource to confirm the correct part number and other necessary details.
Ensure that the belt is installed correctly. Once you have the right belt, carefully follow the John Deere GT245 belt diagram to ensure proper installation and optimal performance.
Step-by-Step Guide to Installing the Drive Belt on John Deere GT245
Begin by lifting the hood of the John Deere GT245 to access the engine area. Make sure the engine is turned off and the key is removed from the ignition.
Next, locate the old drive belt. You will see it running from the engine pulley to the transmission pulley, along with other components like the idler pulleys. Take note of the current belt’s routing to ensure proper installation of the new one.
Using a socket wrench, remove any covers or components obstructing the belt, such as the belt guards or brackets. Keep these screws in a safe place for reassembly.
Release the tension from the belt by loosening the idler pulley. You may need to use a wrench or socket to turn the tensioner and relieve pressure on the old belt.
Carefully slide the old belt off the pulleys, starting with the engine pulley. Take your time to avoid damaging any components.
Now, take the new drive belt and match its length and width to the old one to ensure compatibility. Begin installing the new belt by looping it around the engine pulley first, then continue around the remaining pulleys following the same route as the original belt.
Once the belt is properly in place, check that the routing matches the diagram in the owner’s manual. Make sure the belt is seated correctly on each pulley.
Reinstall any components or guards that were removed earlier, securing them tightly with the screws you saved. Double-check everything to ensure all parts are securely in place.
Finally, adjust the tension on the idler pulley to ensure the belt has the proper amount of slack. Start the engine and observe the belt in operation to verify that it is running smoothly.
Troubleshooting Common Issues with the Drive Belt on John Deere GT245
If the drive belt on your John Deere GT245 is slipping or not functioning properly, check for wear and tear. Inspect the belt for visible damage, such as cracks or fraying. Replace it if necessary, as a damaged belt can affect performance.
Another common issue is improper tension. A loose belt can lead to poor traction or slipping during operation. Use the tension adjustment procedure outlined in the owner’s manual to ensure the belt is at the correct tension.
Examine the pulleys for debris or obstructions. Dirt or grass buildup can prevent the belt from moving smoothly. Clean the pulleys regularly and ensure they are free of blockages that could cause the belt to malfunction.
If the belt is still not functioning after addressing these issues, check the alignment of the pulleys. Misalignment can cause the belt to wear unevenly or slip off. Realign the pulleys as necessary, making sure they are in their proper positions according to the diagram in the manual.
Lastly, listen for any unusual noises while the mower is running. Squealing or grinding sounds could indicate that the belt is rubbing against another component or not running smoothly. Tighten or replace parts as needed to resolve these sounds.
