The correct belt installation in the 2013 Nissan Altima 2.5 is crucial for ensuring the engine’s smooth operation. Make sure to follow the belt routing diagram closely to avoid unnecessary damage to components. The serpentine belt should align precisely with the pulleys, including the alternator, power steering pump, and air conditioning compressor.
Start by inspecting the belt for wear and tear. If it shows signs of cracks or fraying, it’s time for a replacement. Refer to the diagram to ensure the new belt is routed correctly through all the pulleys. The diagram will show you the exact positions for tensioners and the belt’s path, ensuring all components are powered efficiently.
After installing the new belt, check for proper tension. A slack belt can cause squeaking or even slip off, leading to potential engine damage. The tensioner should automatically apply the right amount of force to maintain the belt’s position. If necessary, adjust the tension to the manufacturer’s specifications to avoid complications during operation.
By following these steps and the belt diagram, you’ll ensure the proper functioning of your 2013 Nissan Altima 2.5’s engine components, keeping it running smoothly for miles ahead.

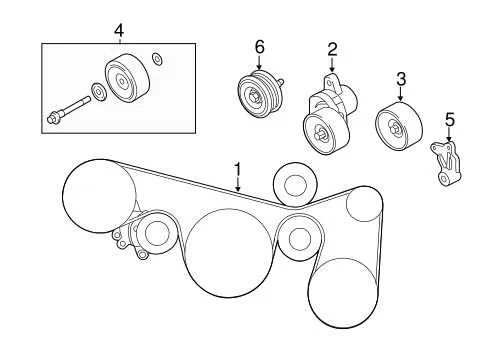

2013 Nissan Altima 2.5 Belt Diagram
The 2013 Nissan Altima 2.5 features a serpentine belt system that powers essential components like the alternator, power steering pump, and air conditioning compressor. Understanding the belt diagram ensures proper installation and troubleshooting when needed.

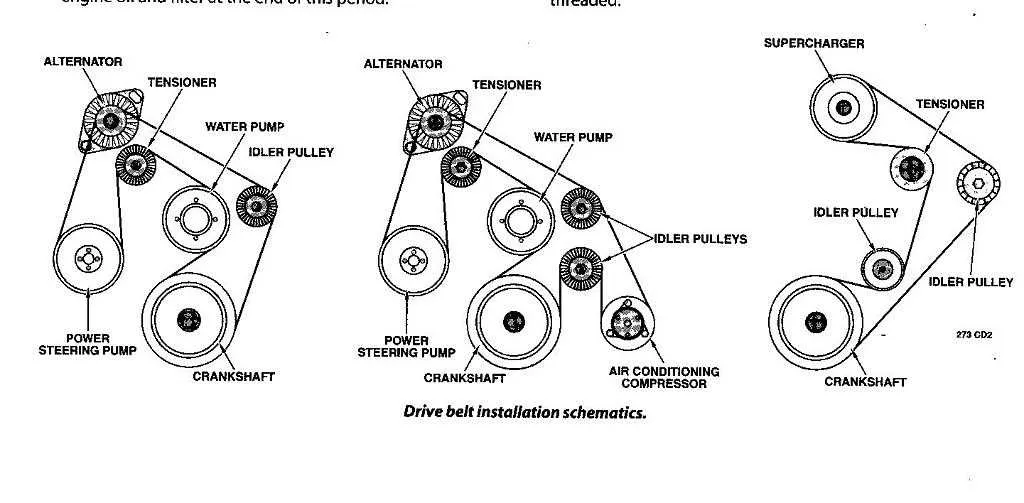

To properly install the serpentine belt, follow the diagram provided in the vehicle’s manual. It shows the correct path and routing of the belt around pulleys and tensioners. Here are the key steps to follow:
- Ensure the engine is turned off and cooled down before starting any work on the belt.
- Locate the belt tensioner and use a wrench to relieve tension on the belt.
- Carefully remove the old belt if applicable, and inspect the pulleys for any signs of wear or damage.
- Install the new belt following the exact route shown in the diagram, making sure it’s securely placed on each pulley.
- Release the tensioner, allowing it to apply the correct tension to the belt.
- Double-check the belt alignment and ensure there is no slack or misalignment.
If you’re facing belt-related issues such as squeaking or slipping, check the belt tension. It’s important to maintain proper tension for optimal performance. If the belt shows signs of cracking or excessive wear, replace it immediately to avoid further engine damage.
Consult your vehicle’s repair manual for the specific diagram, as variations may exist depending on engine configuration or production year. Regular inspection of the serpentine belt helps prevent unexpected failures and keeps the vehicle running smoothly.
Understanding the Belt Routing on 2013 Nissan Altima 2.5
The serpentine belt on the 2013 Nissan Altima 2.5 is responsible for driving essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. Correct belt routing ensures these components function properly, preventing potential damage to the engine or other systems. When inspecting the belt routing, always check that the belt follows the exact path as outlined in the vehicle’s diagram. An incorrect routing can lead to improper tension, premature wear, or failure of the belt and accessories.
The serpentine belt typically loops around multiple pulleys, with each pulley serving a distinct function. The tensioner pulley maintains the correct tension, while the idler pulley helps guide the belt around the components. Pay attention to the direction of rotation for each pulley, ensuring that the belt aligns properly. In the case of the 2013 Altima 2.5, the belt routing starts at the crankshaft pulley and runs through the various components in a specific order. If the belt is misaligned or damaged, immediate replacement or adjustment is necessary to avoid further mechanical issues.
When replacing or servicing the serpentine belt, use the belt routing diagram to guide your installation. If the diagram is unclear or missing, it is best to consult the vehicle manual or seek professional assistance to avoid mistakes that could lead to more extensive repairs.
Step-by-Step Instructions for Replacing the Belt
To replace the belt on your 2013 Nissan Altima 2.5, follow these steps carefully for a smooth process.
1. Begin by disconnecting the negative terminal of the battery. This will ensure safety while working around the engine.
2. Locate the serpentine belt. Use a socket wrench to relieve tension from the tensioner pulley. Rotate it counterclockwise to release the belt.
3. Remove the belt from all the pulleys. Carefully slide it off the crankshaft pulley and then the other pulleys, making sure to remember the belt’s routing for reinstallation.
4. Inspect the condition of the pulleys and the tensioner before proceeding. Replace any components showing signs of wear.
5. Install the new belt by following the same routing as the old one. Start with the crankshaft pulley and work your way to the tensioner pulley last.
6. Use the socket wrench to rotate the tensioner pulley and slide the belt onto it. Ensure the belt is seated properly in all grooves.
7. Check the alignment of the belt on all pulleys. It should sit evenly in the grooves without being too tight or too loose.
8. Reconnect the negative battery terminal. Start the engine and verify the belt is functioning correctly and running smoothly without any unusual sounds or movements.
Troubleshooting Common Belt Issues in 2013 Nissan Altima 2.5
If your 2013 Nissan Altima 2.5 experiences unusual noises or poor performance, a damaged or worn-out belt could be the culprit. Check for any visible cracks, fraying, or glazing on the belt surface. These are clear signs that the belt needs replacing.
One common issue is belt slippage, which can occur if the belt is too loose or worn. If you notice squealing noises when starting the engine or accelerating, it’s likely that the belt is slipping. To fix this, inspect the tensioner and pulleys for wear and ensure proper tension is applied to the belt.
Another frequent problem is misalignment. The belt may start to run off its intended path, causing damage to both the belt and the pulleys. Look for any misaligned pulleys or obstructions that could be disrupting the belt’s normal operation.
Check for belt squeaks, especially when turning the steering wheel or using accessories. This can be caused by a stretched belt or one that has lost its grip. Replacing the belt or tightening it should resolve this issue.
In rare cases, a damaged alternator pulley or worn-out water pump can cause belt-related problems. If the belt shows signs of wear even after replacing it, inspect these components to ensure they are functioning properly.
