Check the belt tension and alignment before starting any adjustments on your Dixon ZTR mower. Misaligned belts reduce performance and increase wear, so ensure each belt sits correctly in its corresponding pulley. Use a tension gauge if available to maintain the recommended 1/2-inch deflection for drive belts and 1/4-inch for deck belts.
Follow the belt routing exactly as shown in the Dixon ZTR diagram to prevent slipping and premature damage. Start by positioning the main drive belt around the engine pulley, then guide it through the idler and tensioner pulleys. Make sure all notches fit properly in each pulley groove and confirm that the deck engagement belt runs smoothly across the mandrel pulleys.
Inspect pulleys and tensioners for wear while replacing belts. Worn bearings, cracked pulleys, or loose mounts can cause vibrations and uneven belt movement. Clean debris and grass buildup from pulleys before reinstalling belts to maintain consistent rotation and prevent overheating.
Replace belts at the first sign of fraying, cracking, or stretching beyond the manufacturer’s specifications. Using OEM Dixon ZTR belts ensures proper fit and performance. After installation, run the mower at low speed to observe belt operation and make final adjustments to tension if necessary.

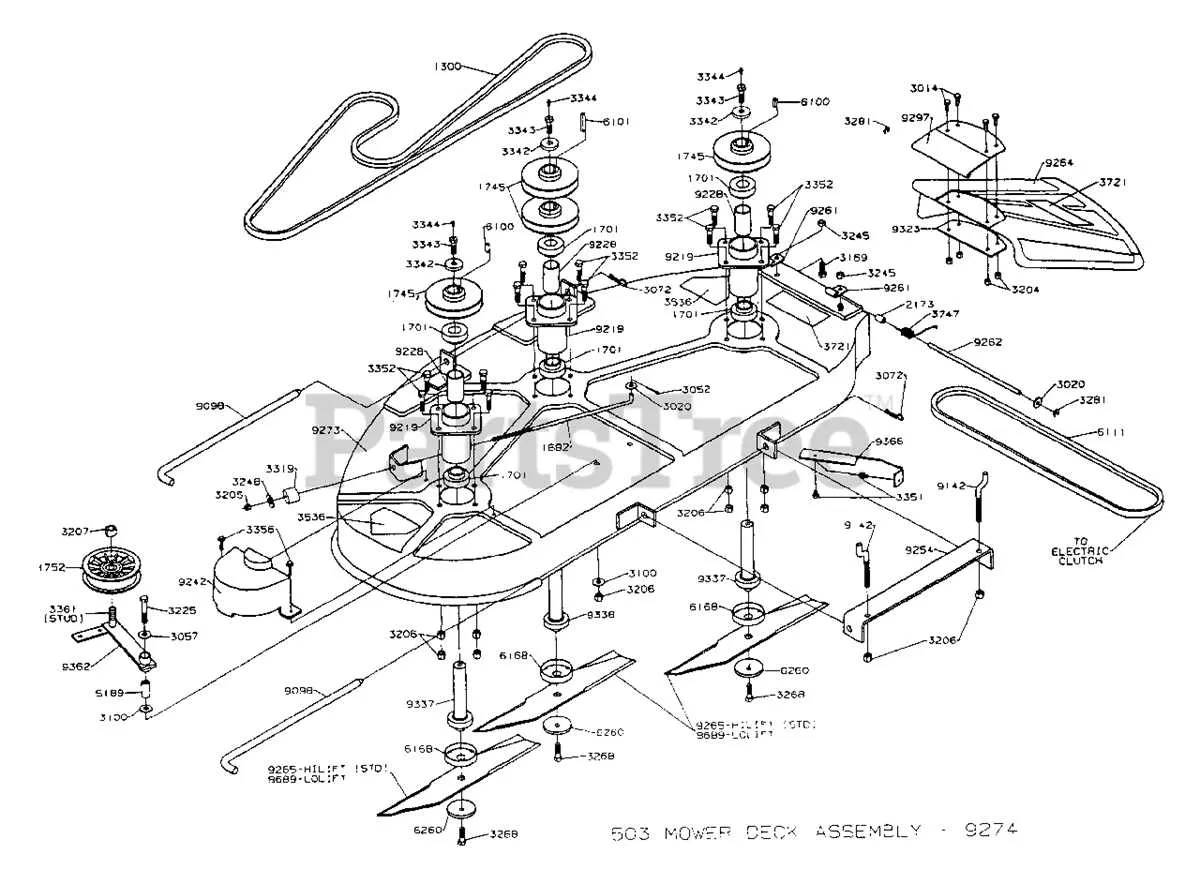

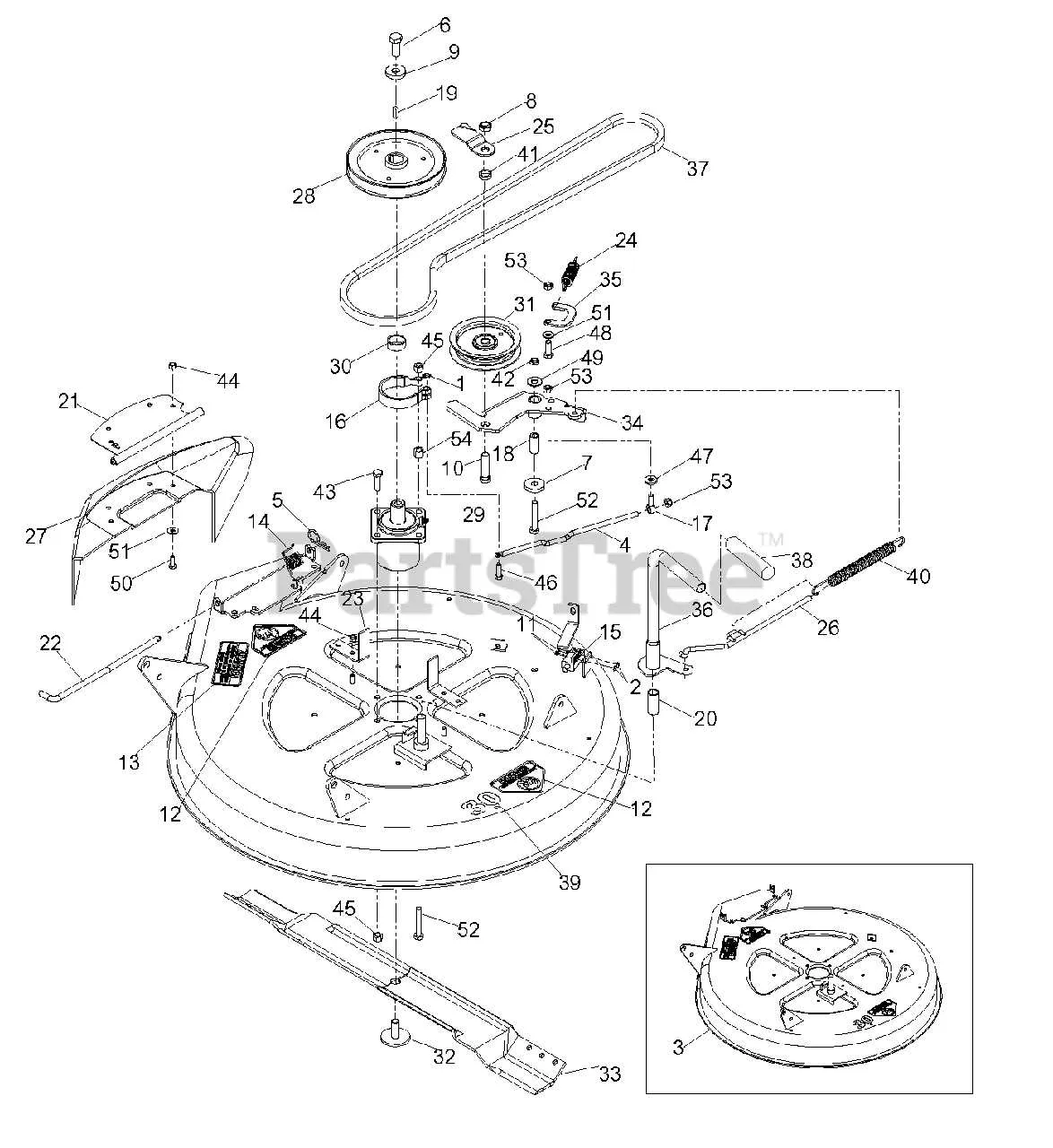

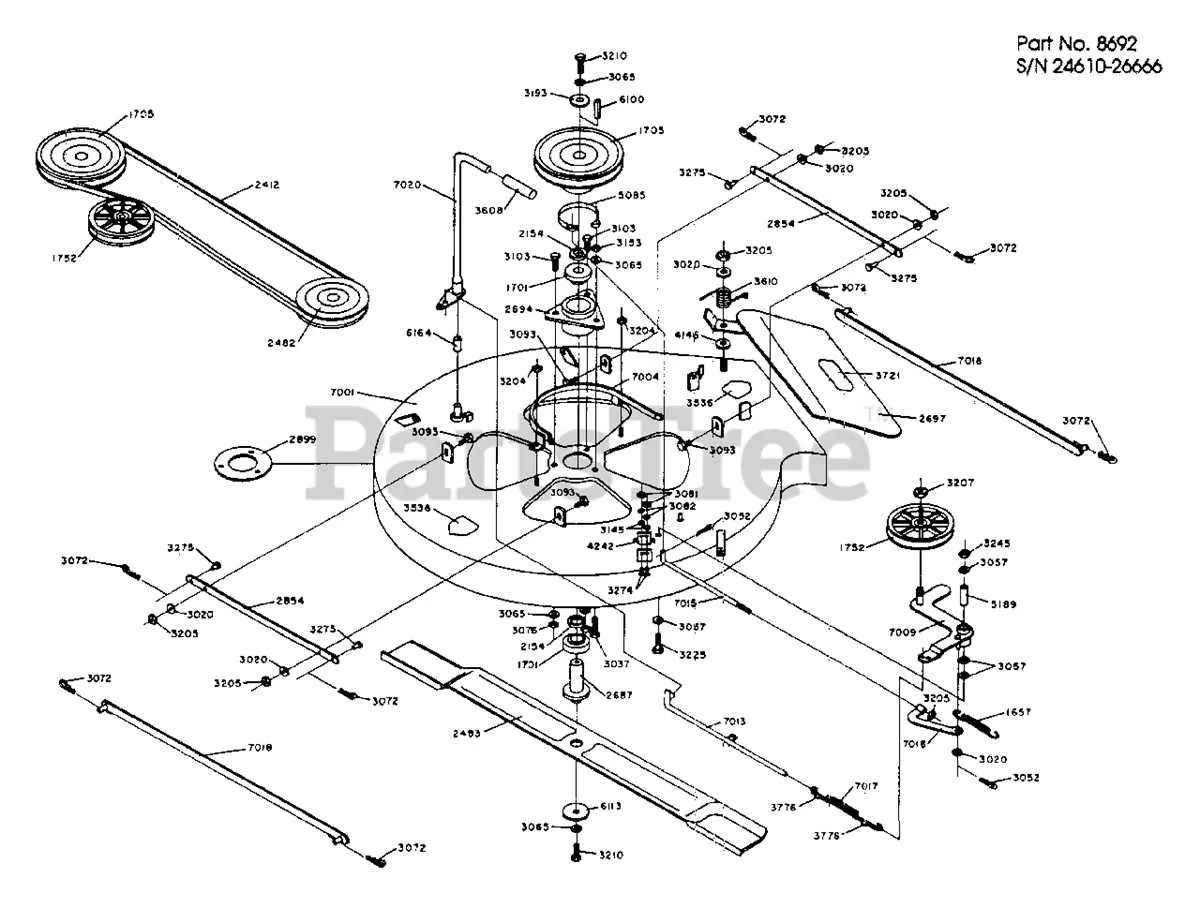

Dixon ZTR Belt Diagram Detailed Maintenance and Replacement Guide
Check the belt tension regularly using a gauge or by applying moderate pressure to the mid-span. Proper tension prevents slippage and uneven wear.
Inspect pulleys for signs of wear, rust, or misalignment. Replace any pulley with grooves, cracks, or wobbling to maintain smooth belt operation.
Clean the belt and pulleys with a dry cloth. Avoid solvents that can degrade rubber or leave residues that reduce friction.
Follow the exact routing shown in the Dixon ZTR belt diagram. Misrouting can cause mower deck engagement issues or damage to the engine and transmission components.
Replace the belt at the first sign of fraying, cracks, or glazing. Use the belt model recommended for your ZTR to ensure proper fit and performance.
When installing a new belt, loop it around the engine pulley first, then around the idler pulleys and deck spindles, keeping it aligned with each groove to prevent jumping.
After installation, rotate the pulleys manually to confirm the belt runs smoothly. Engage the deck to test proper motion before mowing.
Lubricate idler pulley bearings lightly if accessible, but avoid over-oiling as excess lubricant can contaminate the belt surface and reduce grip.
Maintain a regular schedule of inspection and replacement based on hours of operation and mowing conditions to prevent unexpected breakdowns.
Identifying and Locating All Belts on Dixon ZTR Mowers
Locate all belts on your Dixon ZTR mower by starting with the engine and deck drive systems. Each belt serves a specific function and has a distinct routing path that affects mower performance.
For the engine, identify the primary drive belt that connects the engine crankshaft pulley to the transmission input pulley. This belt transfers power from the engine to the mower’s drive system. Inspect its tension and position carefully, ensuring it aligns with the marked grooves on the pulleys.
Next, focus on the deck drive belts. These belts control the rotation of the mower blades. Typically, a ZTR mower has a separate belt for each deck spindle, often routed through idler pulleys. Confirm the correct placement by tracing the belt from the engine or deck drive pulley through each idler, ensuring it sits snugly without twisting.
- Locate the right-hand deck spindle belt. Follow it from the engine or deck drive pulley to the spindle, noting all intermediate pulleys.
- Locate the left-hand deck spindle belt. Check that it mirrors the routing pattern of the opposite side and passes correctly over each idler.
- Identify any auxiliary belts, such as those powering the blower or accessory systems. These may run separately from the main deck and drive belts.
Label each belt if needed to prevent confusion during removal or replacement. Use the mower’s diagram for reference, confirming the direction of rotation and pulley alignment. Proper identification ensures smooth operation and prevents premature belt wear or slippage.
Step-by-Step Belt Routing for Accurate Installation
Begin by positioning the Dixon ZTR mower on a flat surface and engaging the parking brake. Lift the deck to its highest position to access all pulleys and tensioners.
Identify the main drive belt connecting the engine crankshaft to the transmission pulleys. Loop the belt around the crankshaft pulley first, ensuring the ribbed side aligns correctly with the pulley grooves.
Next, route the belt around the idler pulleys. Maintain tension by slightly lifting the tensioner arm and sliding the belt underneath. Check that each pulley rotates freely without twisting the belt.
Guide the belt toward the deck spindles. Wrap it around each spindle pulley, keeping the belt tight against the ribbed surfaces. Use your fingers to confirm the belt sits fully in the pulley grooves.
Engage the deck belt tensioner. Pull the belt snugly and release the tensioner arm, confirming the belt maintains proper tension across all pulleys. Spin each spindle by hand to verify smooth rotation without slipping.
Inspect all routing paths for correct alignment. Ensure the belt does not contact the mower frame or any sharp edges. Adjust idler positions slightly if any misalignment occurs.
Lower the deck and start the engine briefly to observe belt movement. Watch for consistent tracking on all pulleys. Stop the engine, recheck tension, and make minor adjustments as needed.
Finally, secure all safety guards and double-check that the belt follows the exact path outlined in the Dixon ZTR belt diagram for your model. Proper installation prevents premature wear and maintains smooth operation.
Inspecting Pulleys and Tensioners to Ensure Proper Belt Operation
Check each pulley for smooth rotation and absence of wobble. Any grinding, squeaking, or visible wear indicates a need for replacement.
Examine the tensioner for consistent spring pressure. Press the tensioner arm and release it; it should move smoothly and return firmly to maintain proper belt tension.
Inspect pulley alignment. Misaligned pulleys cause belts to track incorrectly, leading to premature wear or slipping. Use a straight edge to verify alignment along the belt path.
Look for cracks, glazing, or frayed edges on belts where they contact pulleys. These signs signal that pulleys or tensioners may not be maintaining correct tension or rotation.
Ensure all mounting bolts for pulleys and tensioners are tight. Loose hardware can shift components under load, affecting belt operation and safety.
Rotate the belt manually after inspection to confirm smooth movement across all pulleys. Listen for unusual noises that indicate hidden pulley or tensioner issues.
Replace any pulley with excessive play or worn bearings and adjust the tensioner to factory specifications to maintain consistent belt engagement.
