For accurate maintenance or replacement of the LS1 drive belt, refer to a detailed diagram that outlines the belt’s path and interaction with key components. The correct routing of the belt is crucial to ensuring the proper functioning of the engine’s accessory systems, such as the alternator, power steering, and water pump.
The LS1 engine’s drive belt layout can vary slightly depending on the vehicle model and year, but understanding the general pattern is essential. Start by identifying the components the belt drives, then verify that the belt follows the appropriate tensioner and pulleys to maintain proper alignment and tension.
Check the tensioner condition regularly. A faulty tensioner can lead to belt misalignment or slippage, causing performance issues or damage to the accessories. A visual inspection of the belt for signs of wear, cracks, or fraying is also recommended to prevent unexpected failures.

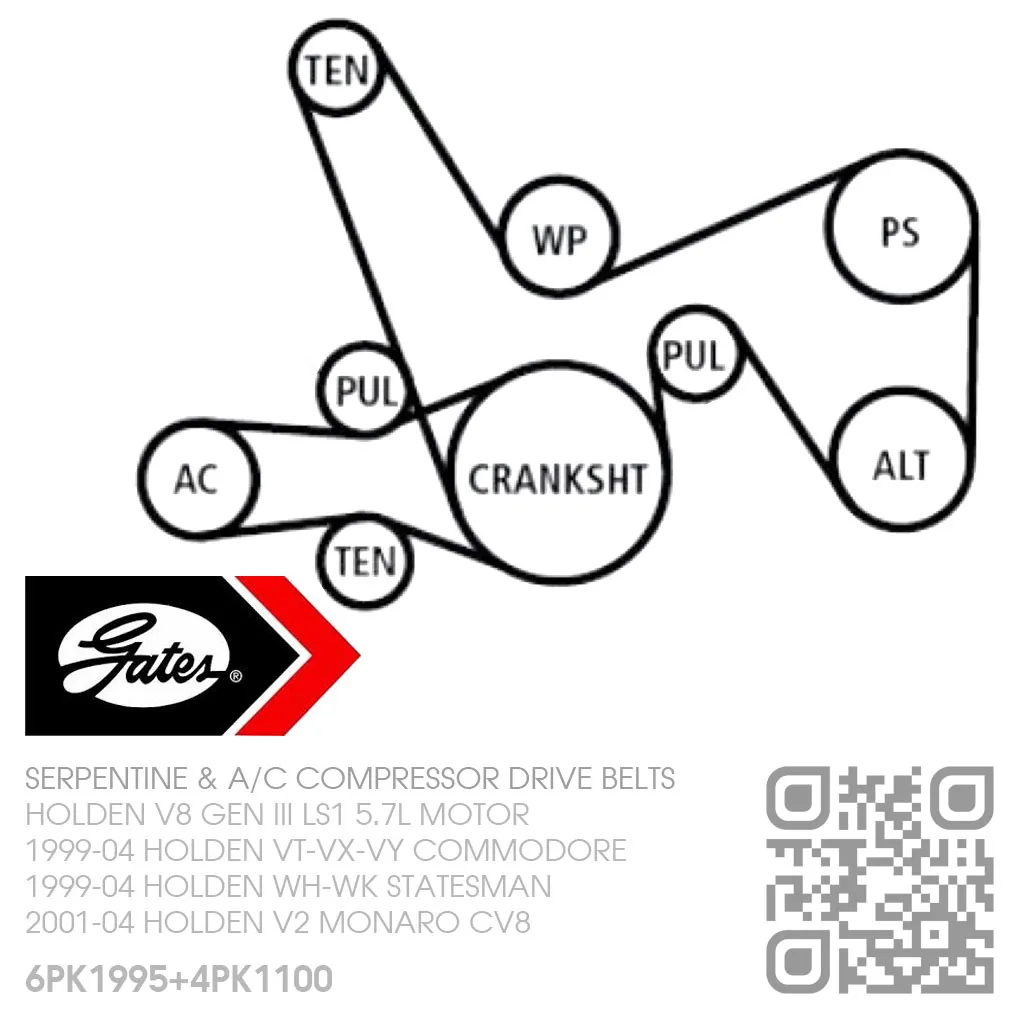

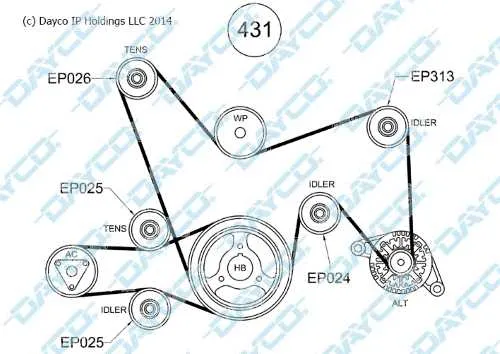

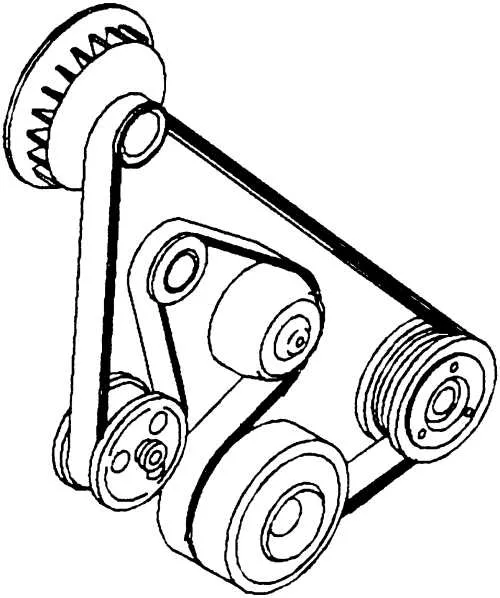

LS1 Drive Belt Diagram
The LS1 engine uses a serpentine belt system to drive multiple accessories. It’s crucial to know the proper routing to avoid unnecessary wear or failure. Here’s a clear breakdown of the LS1 drive belt setup:
- The main accessory components driven by the belt include the alternator, power steering pump, air conditioning compressor, and water pump.
- The tensioner maintains the required tension on the belt. It’s usually located on the driver’s side of the engine bay.
- The belt route starts from the crankshaft pulley and loops around various pulleys before returning to the tensioner.
- In some setups, the AC compressor and power steering pump are on separate belts, but typically, they share a single serpentine belt.
Check the belt’s condition regularly. A worn belt or misaligned pulley can lead to engine damage or failure of accessories. Replace the belt every 60,000 to 100,000 miles, or if there are visible cracks or fraying. Keep an eye on the tensioner for signs of wear, as a faulty tensioner can cause belt slippage or failure.
Ensure that the belt routing is correctly followed when replacing the serpentine belt. Refer to the vehicle’s service manual or the diagram under the hood for guidance.
Understanding the LS1 Drive Belt Layout and Routing
To properly set up the LS1 drive belt, begin by ensuring that all components are aligned correctly. The LS1 engine uses a serpentine belt system that drives multiple accessories including the alternator, power steering pump, and air conditioning compressor. The belt routes through specific pulleys, each performing a crucial role in maintaining the engine’s efficiency.
The belt’s layout starts with the crankshaft pulley, which serves as the primary drive point. The belt then loops over the idler pulleys, tensioner, and the various accessory pulleys. Ensure that the belt is routed along the correct path to avoid misalignment, which could lead to premature wear or failure of the components. The tensioner pulley should maintain proper tension to prevent slippage.
Verify that the belt’s routing corresponds to the diagram for your specific vehicle model. This ensures the correct operation of all driven accessories, reducing the risk of issues such as overheating or battery drain. If replacing the belt, ensure the new one is of the correct length and specification, as incorrect sizes can lead to system failures or inefficient operation.
Lastly, after installing the belt, double-check the alignment by rotating the engine by hand. This will confirm that the belt moves smoothly over the pulleys without binding or skipping. Keep an eye on belt wear during routine maintenance to prevent unexpected breakdowns.
Steps for Replacing the LS1 Drive Belt
First, ensure the engine is turned off and cooled down before starting the replacement. Disconnect the negative battery terminal to prevent accidental electrical shorts.
Locate the tensioner pulley. Using a wrench or socket, rotate the pulley counterclockwise to relieve tension from the belt. Carefully remove the belt from the pulleys, taking note of its routing for reinstallation.
Inspect the belt for any signs of damage, such as cracks, fraying, or glazing. If the belt shows wear, it’s time for a replacement.
Install the new belt, following the same routing as the original. Double-check that the belt sits correctly on all pulleys. Rotate the tensioner pulley again to allow the belt to slide into place, then release the tensioner to apply tension to the new belt.
Finally, inspect the alignment of the belt on the pulleys. Start the engine and observe the belt in motion, ensuring it runs smoothly without slipping or making noise.
Troubleshooting Common Issues with the LS1 Drive Belt
Check the belt for cracks or signs of wear. If you notice any visible damage, replace the belt immediately to avoid failure during operation.
Inspect the tensioner for proper function. A faulty tensioner can cause the belt to slip or wear unevenly. Test the tensioner by pressing on it; if it moves freely or doesn’t spring back, it may need replacing.
Ensure the pulleys are aligned. Misaligned pulleys can lead to belt misrouting, causing wear or skipping. Use a straightedge to check the alignment of each pulley and correct any misalignment before reassembling the system.
Look for any debris around the belt area. Small stones or dirt can get lodged in the belt grooves, causing it to slip or break. Clean the area thoroughly before reinstalling the belt.
Examine the belt’s routing to ensure it’s correctly positioned according to the LS1 diagram. A misplaced belt can lead to improper operation and premature wear. Refer to the LS1 drive belt diagram to double-check the routing path.
If the belt makes a squealing noise, it could be a sign of low tension or contamination. Inspect the belt and pulleys for oil or coolant leaks, as these can cause slippage. Clean or replace any damaged components to stop the noise.
