To replace or troubleshoot the serpentine belt on your Dodge Ram 2500, it’s crucial to follow the correct routing diagram. This ensures the belt runs smoothly over all necessary components, including the alternator, power steering pump, and air conditioning compressor.
Check the owner’s manual for the precise diagram for your model year. The manual typically includes a detailed illustration showing how the serpentine belt should be routed around pulleys. Having this reference handy will prevent confusion and help avoid mistakes during installation or replacement.
If you no longer have the manual, you can find diagrams online, often on trusted automotive websites or forums dedicated to Dodge trucks. Many of these resources offer step-by-step guides with clear diagrams that make the process much easier. The correct belt tension is also important–make sure you check the recommended tension specification to avoid premature wear or slippage.
Remember to inspect the condition of your serpentine belt regularly. Look for cracks, fraying, or glazing, and replace it immediately if you notice any of these issues. This will help prevent unexpected breakdowns and maintain the performance of your Ram 2500’s engine components.

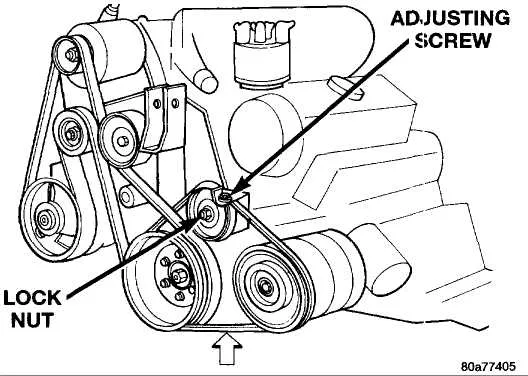

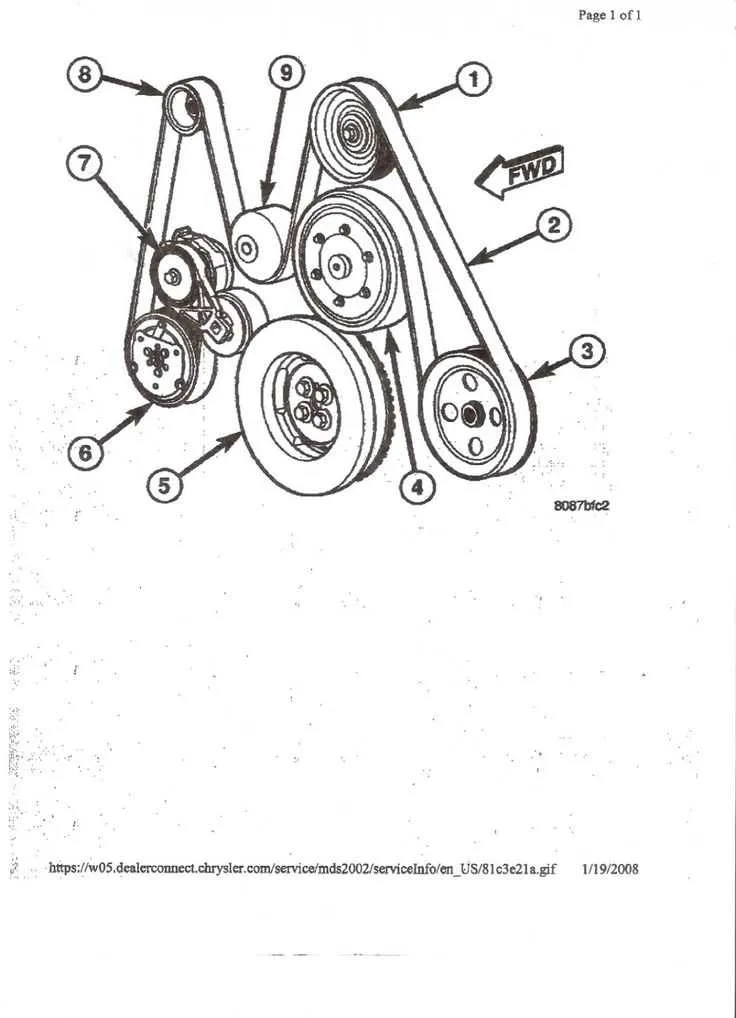

Dodge Ram 2500 Serpentine Belt Diagram
To replace or inspect the serpentine belt on a Dodge Ram 2500, refer to the specific routing diagram for the engine model you have. The serpentine belt is critical for driving several components, including the alternator, power steering pump, and air conditioning compressor. Incorrect routing can lead to malfunction or damage to those components.
The diagram typically shows a clear path, identifying the pulleys and tensioners. Pay attention to the orientation of the belt and make sure it follows the correct sequence around the crankshaft, alternator, water pump, and other pulleys. The tensioner is adjustable, so make sure it provides the right amount of tension when the belt is installed.
If your truck has a 5.7L or 6.7L engine, check that the belt wraps correctly around the idler pulleys, which guide its path. Using a socket or ratchet, rotate the tensioner clockwise to release the tension when removing or installing the belt. Once the new belt is in place, release the tensioner and ensure that the belt is seated properly in each groove of the pulleys.
Before installation, inspect the belt for any visible signs of wear, cracks, or fraying. If any of these signs are present, replace the belt immediately to avoid failure during operation. Regular maintenance will extend the life of your engine components and improve overall vehicle performance.
How to Read a Dodge Ram 2500 Serpentine Belt Diagram
First, locate the serpentine belt diagram, typically found on a sticker under the hood of your Dodge Ram 2500. This diagram shows the exact routing of the serpentine belt around the engine components, including the alternator, power steering pump, water pump, and air conditioning compressor.
Begin by identifying the main components on the diagram. These are usually represented by labeled circles or squares, which correspond to the parts the belt interacts with. Pay close attention to the direction of the arrows, indicating the belt’s rotation path. This is crucial for correct installation and tension adjustment.
Next, check for any specific instructions, such as belt tensioning. Some diagrams include an additional label or note specifying the need for a specific tensioning tool or procedure to prevent improper installation.
When reading the diagram, focus on the path that loops around each component. The diagram will usually show whether the belt crosses over itself or loops around pulleys in a specific sequence. Ensure that the belt travels smoothly without twisting or crossing over any parts inappropriately.
If you’re replacing the serpentine belt, compare the old belt’s routing with the diagram. Double-check that the new belt follows the exact same path, as a small deviation can result in mechanical failure or excessive wear.
For better clarity, it may help to trace the belt’s route with your finger or use a piece of chalk to mark key points on the diagram. Always double-check the diagram and your work before starting the engine.
Common Serpentine Belt Routing Issues in Dodge Ram 2500
Misrouting the serpentine belt can lead to engine malfunctions. Ensure the belt follows the correct path to prevent issues like overheating or power loss. Double-check routing diagrams specific to your Dodge Ram 2500 model for accuracy.
- Incorrect Tensioner Alignment: If the tensioner pulley isn’t aligned properly, the belt will struggle to stay in place, leading to slipping and premature wear. Verify that the tensioner is securely mounted and positioned correctly before installing the new belt.
- Pulley Wear: Worn or damaged pulleys can cause the belt to misalign or squeal. Inspect the pulleys for damage or corrosion and replace them if needed. Make sure the pulleys rotate freely to ensure smooth belt movement.
- Improper Belt Length: Using the wrong size belt can affect performance. Check the manufacturer’s recommended belt length before installation. A belt that’s too short or too long will cause unnecessary strain on the system.
- Belt Routing Confusion: Some belts have complex routes with multiple pulleys. Ensure the belt follows the exact diagram for your engine model to avoid crossing over or missing pulleys, which can lead to belt failure.
- Loose or Stretched Belt: Over time, belts stretch or lose tension, causing them to slip. Regularly inspect the belt for signs of wear, and replace it if you notice significant stretching or fraying.
- Improper Tension: If the belt tension is too high or too low, it can lead to either slippage or excessive wear. Use the proper tools to check and adjust tension, ensuring it matches the factory specifications.
Regular inspection and maintenance of the serpentine belt will help avoid these issues and keep your Dodge Ram 2500 running smoothly.
Steps for Replacing the Serpentine Belt on a Dodge Ram 2500
Start by disconnecting the vehicle’s battery. This ensures safety while working around the engine.
Locate the serpentine belt routing diagram. This is usually found under the hood or in the owner’s manual. Familiarize yourself with the belt’s path to avoid any mistakes during reinstallation.
Using a ratchet wrench, loosen the tension on the serpentine belt by turning the tensioner pulley counterclockwise. This will relieve the pressure and allow you to remove the belt.
Remove the old serpentine belt from the pulleys. Pay close attention to the position of each pulley as you go, ensuring you’ll be able to replicate the belt’s path with the new one.
Inspect all pulleys and the tensioner for wear or damage. If any of these components seem faulty, replace them before installing the new belt.
Align the new serpentine belt according to the routing diagram. Carefully work it over each pulley, making sure it sits properly on each one.
Once the belt is in place, use the ratchet wrench to adjust the tensioner, tightening the new belt. It should be snug but not overly tight.
Double-check the belt’s alignment on all pulleys. It should sit evenly without any misalignment or slack.
Reconnect the battery and start the engine. Listen for any unusual noises and ensure the belt is running smoothly. If everything seems fine, you’re done.
